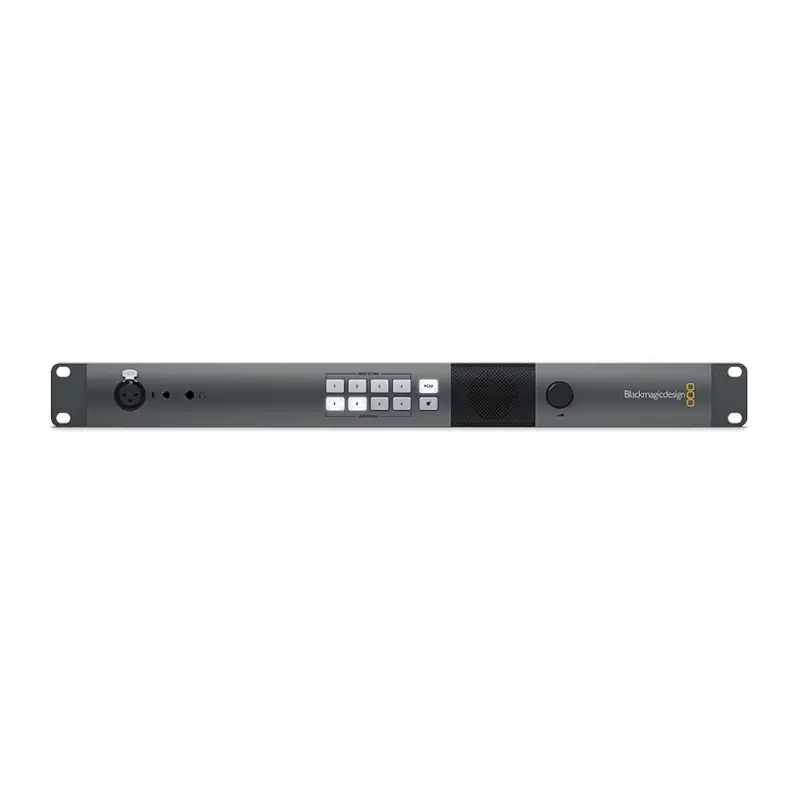

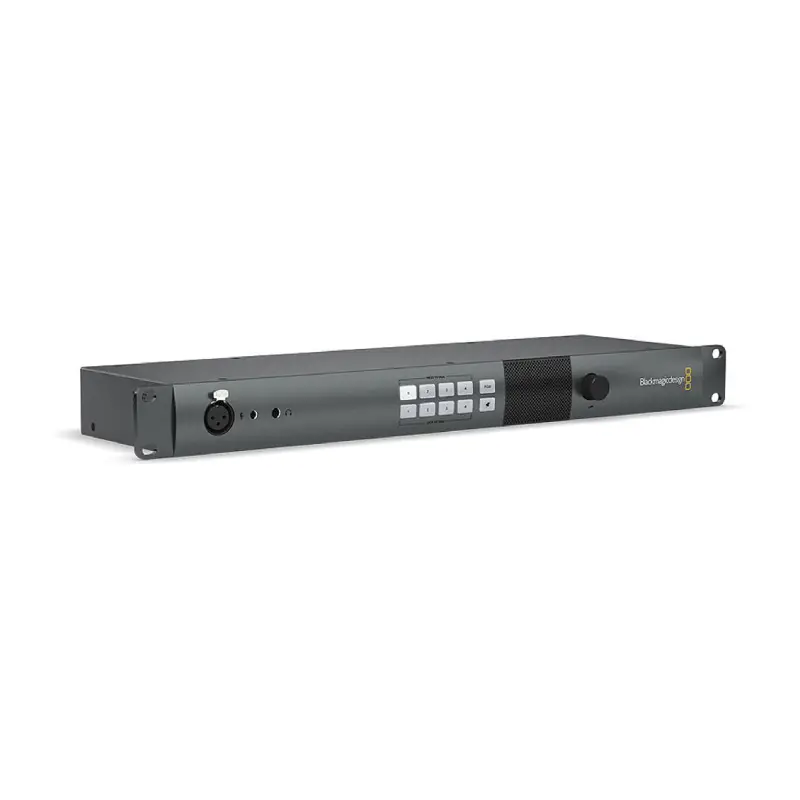

Blackmagic Design ATEM Studio Converter 2

Name: Blackmagic Design ATEM Studio Converter 2
Brand: Blackmagic Design
SKU: 173881
Price: 82450 THB
Availability: BackOrder

82,450 ฿

Available on Backorder

Choose

Clear

SKU: N/A Category: Video Capture-กล่องแปลงสัญญาณ Tags: Blackmagic Design, Studio Converter Brand: Blackmagic Design

Description

จุดเด่นผลิตภัณฑ์

4 Bidirectional ตัวแปลงใน 1 RU Unit
ช่วงสัญญาณไฟเบอร์ออปติก 28 ไมล์
เชื่อมต่อ ATEM ได้สูงสุด 4 เครื่อง
4 x ตัวแปลงไฟเบอร์เป็น SDI 10 บิต
4 x เอาต์พุต SD/HD-SDI แบบสลับได้
กล้อง Talkback พร้อม Select, Vol & Mute
เชื่อมต่อกับ ATEM Switchers/Converters
รองรับ SDI Switcher Tally Output
ส่ง PGM Feed ไปยังกล้องที่เชื่อมต่อด้วยไฟเบอร์

สเปค Blackmagic Design ATEM Studio Converter 2

Standards
Format Support	4K DCI 4096 x 2160p: 60/50/30/29.97/25/24/23.98 UHD 3840 x 2160p: 60/59.94/50/30/29.97/25/24/23.982K 2048 x 1080p: 25/24/23.98 2048 x 1080PsF: 25/24/23.98HD 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50SD NTSC 525i: 59.94 PAL 625i: 50
Video
SDI Video Input	4 x 10-bit SD/HD switchable camera inputs 1 x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal
SDI Compliance	SMPTE 259M, SMPTE 292M
Video Sampling	4:2:2
Color Precision	10-bit
Color Space	REC 601 REC 709
Optical Fiber Video Input	4 x single mode SD/HD switchable camera inputs with LC connector
Optical Fiber	Input 4 x single mode LC connectors for video with embedded audio Channels 1 & 2 are camera audio Channels 15 & 16 are talkback audioOutput 4 x single mode LC connectors for video with embedded audio Channels 1 & 2 are camera audio Channels 15 & 16 are talkback audio
Audio
Audio Sampling	48 kHz 24-bit A/D conversion
Analog Audio Output	4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input) 2 x RCA jacks provide a L/R stereo pair
Talkback	1 x 1/4″ TRS headphone jack 1 x .206″ TRS mic input for use with aviation style headset 1 x 3-pin XLR connector for talkback microphone 1 x Integrated speaker
Talkback Control	8 x Front panel buttons for camera operator selection, lock, mute and un-mute
AES/EBU Talkback Loops	Input 1 x BNC mic input 1 x BNC headphone inputOutput 1 x BNC mic output 1 x BNC headphone output
General
OS Compatibility	Mac OS X 10.7 Lion and later OS X 10.8 Mountain Lion and laterWindows Windows 7 Windows 8
Computer Interface	1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control
Temperature	Operating 0 to 40°C (32 to 104°F)Storage -20 to 45°C (-4 to 113°F)
Power Requirements	110 – 220 VAC, 50/60 Hz 12 – 31 VDC redundant inputNote: IEC power cord is required/not included, redundant power supply not included
Dimensions	44 x 482 mm (1.7 x 18.9″) 1 RU size with built-in rackmount ears
Weight	1.81 kg (4 lb)
