DJI O3 Air Unit
8,250 ฿
Out of Stock
Description
จุดเด่นผลิตภัณฑ์
- เพิ่มความสามารถของ FPV ให้กับโดรนของคุณ
- สำหรับแว่นตา DJI 2 และแว่นตา FPV V2
- ทำงานร่วมกับ DJI FPV Remote Controller 2
- DJI O3+ การส่งสัญญาณวิดีโอ
- สตรีมวิดีโอ 1080p H.265
- Up to 6.2 ไมล์
- การสลับความถี่อัตโนมัติ
- 2T2R เสาอากาศรอบทิศทาง
- ถ่ายวิดีโอได้สูงสุด 4K60 fps
- พื้นที่เก็บข้อมูลในตัว 20GB
รายละเอียด
| Compatibility |
|
สเปค DJI O3 Air Unit
|
Camera |
|
| Sensor | 1/1.7-inch CMOS Effective Pixels: 48 MP |
| Lens | FOV: 155° Equivalent Focal Length: 12.7 mm Focal Length: 2.34 mm Aperture: f/2.8 Focus Mode: FF Focus Range: 0.6 m to ∞ |
| ISO Range | 100-6400 (Auto) 100-25600 (Manual) |
| Shutter | Rolling Shutter |
| FOV | 155° |
| Video Resolution | With DJI Goggles 2: 4K@50/60fps 2.7K@50/60/100fps 1080p@50/60/100fpsWith DJI FPV Goggles V2: 4K@50/60fps 2.7K@50/60/100/120fps 1080p@50/60/100/120fps |
| Video Format | MP4 |
| EIS | Supports RockSteady |
| Weight | Approx. 8.3 g (coaxial cable included) |
|
Air Unit |
|
| Weight | Air Unit (camera module excluded): Approx. 28 g Air Unit (camera module included): Approx. 36.4 g Antenna: Approx. 3 g |
| Dimensions | Transmission Module (L×W×H): 32.5×30.5×14.5 mm Camera Module (L×W×H): 21.2×20×19.5 mm Coaxial Cable: 115 mm 3-in-1 Cable: 100 mm Antenna: 85 mm |
| Communication Frequency | 2.400-2.4835 GHz (RX only) 5.725-5.850 GHz (RX and TX) [1] |
| Transmission Power (EIRP) | FCC: < 33 dBm CE: < 14 dBm SRRC: < 30 dBm |
| End-to-End Latency [2] | With DJI FPV Goggles V2: 810p/120fps Video Transmission Quality: The latency is lower than 28 ms. 810p/60fps Video Transmission Quality: The latency is lower than 40 ms.With DJI Goggles 2: 1080p/100fps Video Transmission Quality: The latency is as low as 30 ms. 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms. |
| Max Video Transmission Range [3] | 10 km (FCC), 2 km (CE), 6 km (SRRC) |
| Supported Flight Control System | Only compatible with controllers that support Betaflight. For more information, check the product FAQ. |
| Input Voltage | 7.4-26.4 V |
| Operating Temperature | -10º to 40º C (14° to 104° F) |
| Channels | Supports auto mode Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels |
| Channels Info | FCC/SRRC/CE: 40 MHz: Channel 1: 5794.5 MHz20 MHz/10 MHz: Channel 1: 5768.5 MHz Channel 2: 5804.5 MHz Channel 3: 5839.5 MHz |
| Supported SD Cards | microSD (up to 256 GB) |
| Recommended microSD Cards | SanDisk Extreme U3 V30 A1 32GB microSDXC SanDisk Extreme Pro U3 V30 A1 32GB microSDXC Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC Kingston Canvas React Plus U3 V90 A1 64GB microSDXC Kingston Canvas React Plus U3 V90 A1 128GB microSDXC Kingston Canvas React Plus U3 V90 A1 256GB microSDXC Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC |
| Supported DJI Goggles | DJI Goggles 2 and DJI FPV Goggles V2 |
| Supported DJI Remote Controller | DJI FPV Remote Controller 2 |
| Footnotes | 1. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations. 2. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models. 3. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI O3 Air Unit in countries/regions of different standards: FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions. SRRC: Mainland China. CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions. |

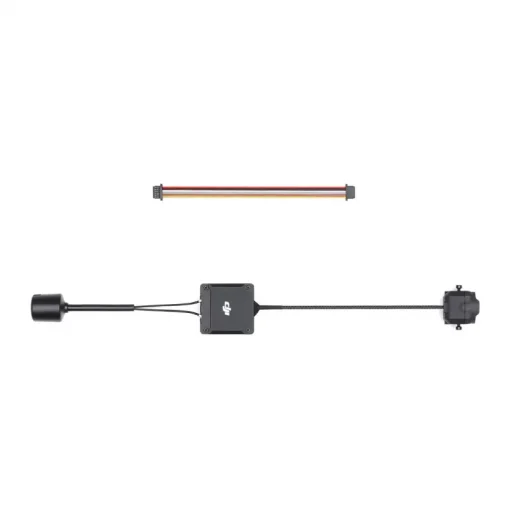

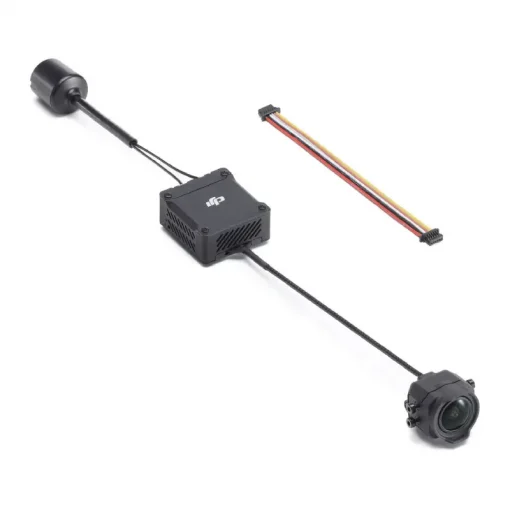

อุปกรณ์ในกล่อง
- DJI O3 Air Unit Camera Module × 1
- DJI O3 Air Unit Transmission Module × 1
- DJI O3 Air Unit Antenna × 1
- DJI O3 Air Unit 3-in-1 Cable × 1
