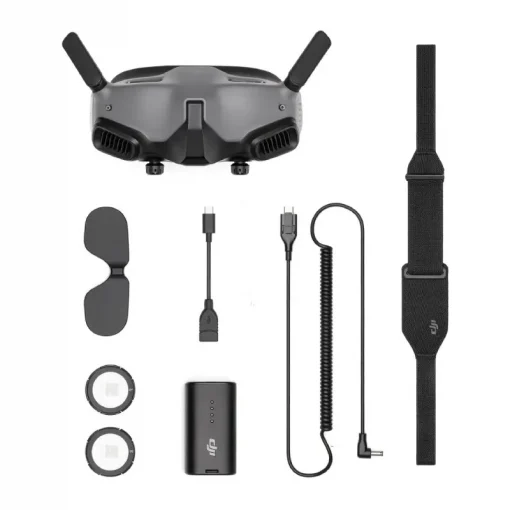

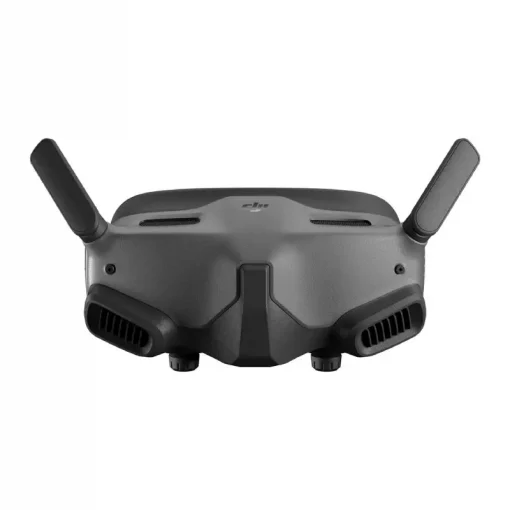

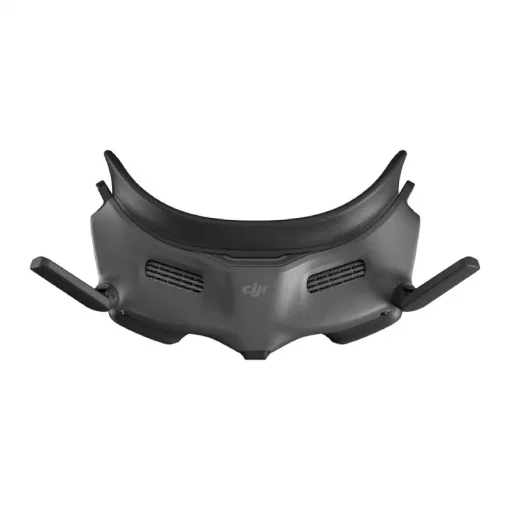

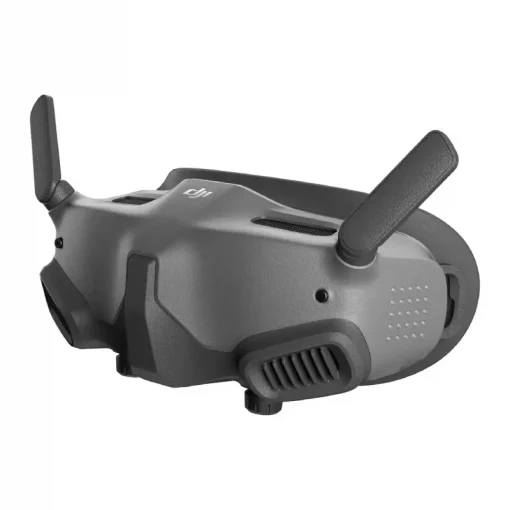

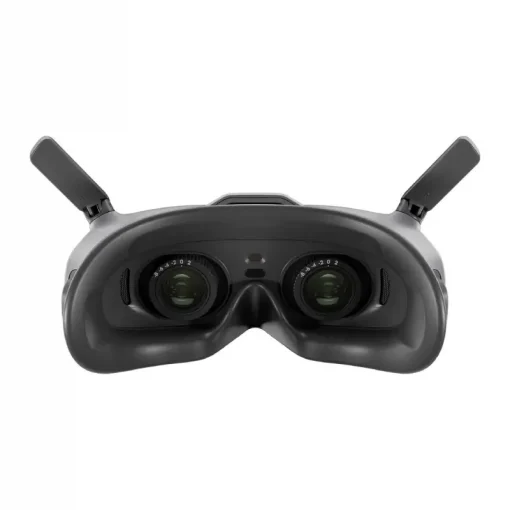

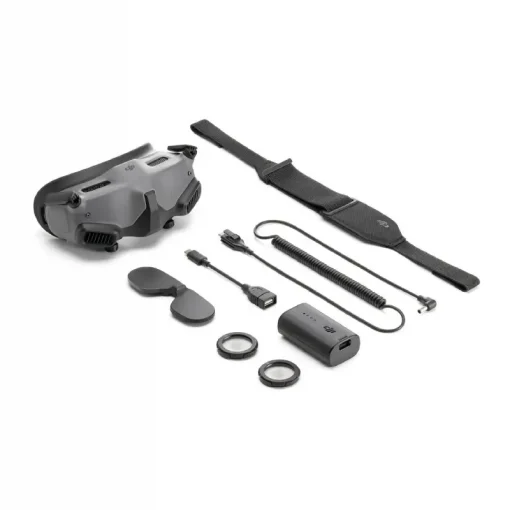

DJI Goggles 2

Name: DJI Goggles 2
Brand: DJI
SKU: 184076
Price: 17100 THB
Availability: OutOfStock

Original price was: 24,900 ฿.Current price is: 17,100 ฿.

Out of Stock

Choose

Clear

SKU: N/A Category: DJI Drone-โดรนDJI ถ่ายภาพมุมสุง Tags: Accessorries, DJI, Goggles Brand: DJI

Description

Overview
Specifications

จุดเด่นผลิตภัณฑ์

สำหรับ DJI Avata & O3 Air Unit
จอแสดงผล Micro-OLED Full HD 1080p
Wi-Fi 5 แบบ Dual-Band สลับอัตโนมัติ
O3+ การส่งสัญญาณไร้สาย
รีเฟรช 100 MHz & ตอบสนอง 30 ms
Diopter ที่ปรับได้และล็อคได้
การสตรีมวิดีโอ Wi-Fi ด้วย DLNA
TÜV Rheinland ลดแสงสีฟ้า
อายุการใช้งานแบตเตอรี่สูงสุด 2 ชั่วโมง
DJI Fly App สำหรับการ Sharing & Teaching

DJI Goggles 2-Detail8
DJI Goggles 2-Detail9
DJI Goggles 2-Detail10
DJI Goggles 2-Detail11
DJI Goggles 2-Detail12
DJI Goggles 2-Detail13
DJI Goggles 2-Detail14
DJI Goggles 2-Detail15
DJI Goggles 2-Detail16
DJI Goggles 2-Detail17
DJI Goggles 2-Detail18
DJI Goggles 2-Detail19
DJI Goggles 2-Detail20
DJI Goggles 2-Detail21
DJI Goggles 2-Detail22

สเปค DJI Goggles 2

Model	RCDS18
Weight	Approx. 290 g (headband included)
Dimensions (L×W×H)	With antennas folded: 167.40×103.90×81.31 mm With antennas unfolded: 196.69×103.90×104.61 mm
Screen Size (single screen)	0.49-inch
Resolution (single screen)	1920×1080
Refresh Rate	Up to 100 Hz
Interpupillary Distance Range	56-72 mm
Diopter Adjustment Range	-8.0 D to +2.0 D
FOV (single screen)	51°
Communication Frequency	2.400-2.4835 GHz 5.725-5.850 GHz ^[1]
Transmission Power (EIRP)	2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC) 5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)
Video Recording Format	MOV
Supported Video and Audio Playback Formats	MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)
Wi-Fi Wireless Streaming	Supports DLNA protocol
Operating Temperature	-10° to 40° C (14° to 104° F)
Power Input	DJI Goggles 2 Battery
Supported SD Cards	microSD (up to 256 GB)
Wi-Fi
Protocol	Wi-Fi 802.11b/a/g/n/ac
Communication Frequency	2.400-2.4835 GHz 5.150-5.250 GHz (indoor use only) ^[2] 5.725-5.850 GHz
Transmission Power (EIRP)	2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC/KC) 5.1 GHz: < 20 dBm (FCC/CE/MIC/KC) 5.8 GHz: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)
Bluetooth
Protocol	Bluetooth 5.2
Communication Frequency	2.400-2.4835 GHz
Transmission Power (EIRP)	< 8 dBm
Video Transmission
Video Transmission Latency ^[3]	1080p/100fps Video Transmission Quality: The latency is as low as 30 ms. 1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.
Max Video Transmission Bitrate ^[3]	50 Mbps
Video Transmission Range ^[3]	When used with DJI Avata or DJI O3 Air Unit, DJI Goggles 2 can achieve the following max video transmission range: 10 km (FCC), 2 km (CE), 6 km (SRRC)
DJI Goggles 2 Battery
Capacity	1800 mAh
Voltage	7-9 V (1.5 A)
Type	Li-ion
Chemical System	LiNiMnCoO2
Energy	18 Wh
Charging Temperature	0° to 45° C (32° to 113° F)
Max Charging Power	12.6 W (5 V/2 A, 9 V/1.4 A)
Operating Time	Approx. 2 hours ^[4]
Weight	Approx. 122 g
Dimensions (L×W×H)	73.04×40.96×26 mm
DJI Motion Controller
Weight	Approx. 167 g
Communication Frequency	2.400-2.4835 GHz 5.725-5.850 GHz
Transmission Power (EIRP)	2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC/MIC) 5.8 GHz: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)
Operating Temperature	-10° to 40° C (14° to 104° F)
Other
Footnotes	1. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations. 2. The 5.1 GHz frequency band is currently banned in Thailand and Israel. For details, please refer to local laws and regulations. 3. Tested in an outdoor open environment without interference. Please refer to actual use. 4. Tested with a fully charged battery in a 25°C (77°F) environment, screen brightness at 6, in 1080p/100fps video transmission mode, without supplying power to any external equipment. Actual operating time may vary due to differences in the number of charge cycles, environment temperature, or external factors.
