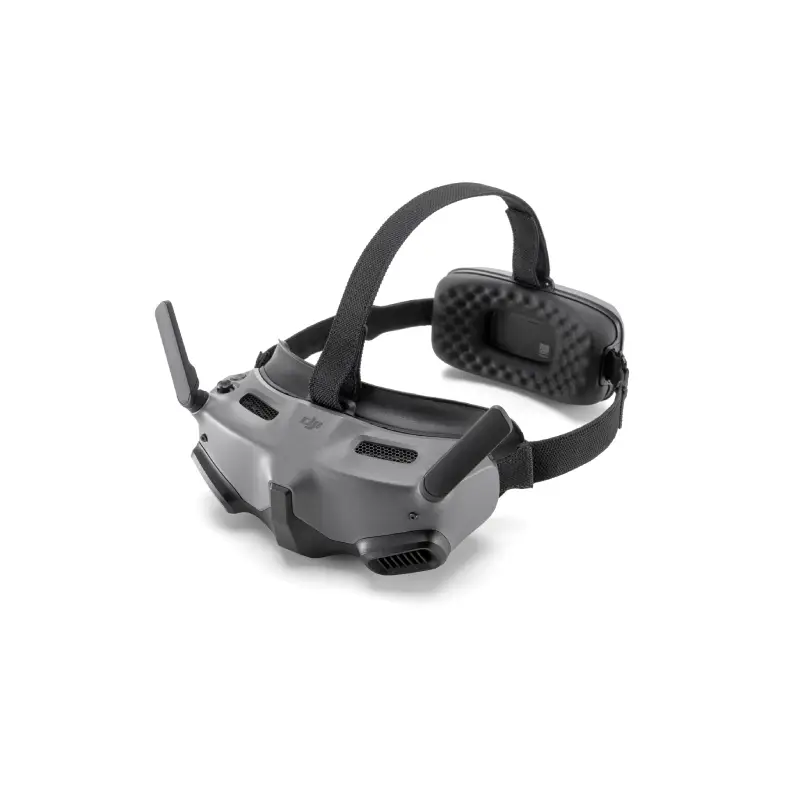

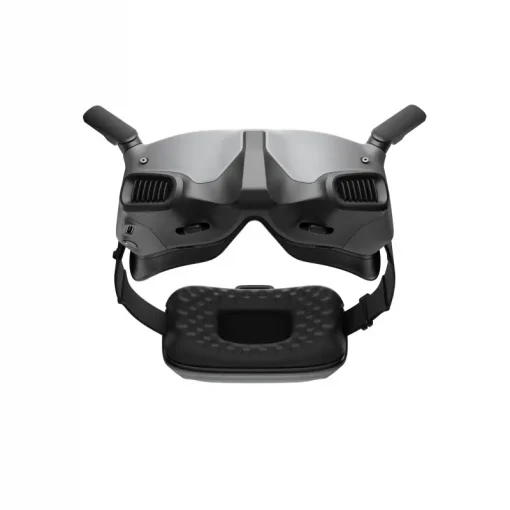

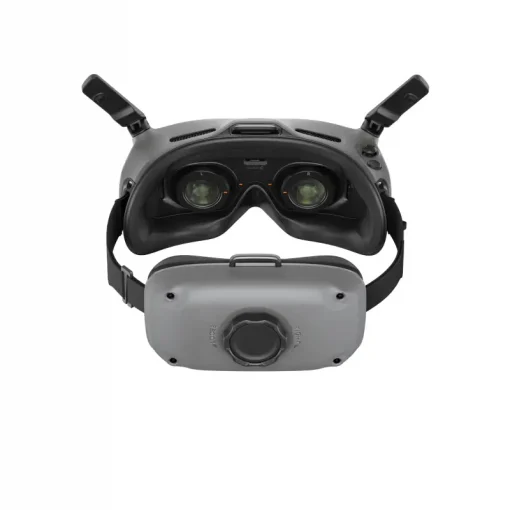

DJI Goggles Integra

Name: DJI Goggles Integra
Brand: DJI
SKU: 188491
Price: 19100 THB
Availability: OutOfStock

19,100 ฿

Out of Stock

Choose

Clear

SKU: N/A Category: DJI Drone-โดรนDJI ถ่ายภาพมุมสุง Tags: Accessorries, DJI, For DJI FPV, RC Brand: DJI

Description

Overview
Specifications

จุดเด่นผลิตภัณฑ์

สำหรับ DJI Avata, O3 Air Unit และ Digital FPV
จอแสดงผล 1080p/100 Micro OLED
ความหน่วงต่ำ & เทคโนโลยี SyncSmooth
การส่งสัญญาณวิดีโอ O3+ 1080p
การสลับการส่งข้อมูลอัตโนมัติ 2.4/5.8 GHz
ผ่านการรับรองแสงสีฟ้าต่ำจาก TUV Rheinland
รวมเลนส์แทรก 11 คู่
รองรับ -8.0 ถึง +2.0 Diopters

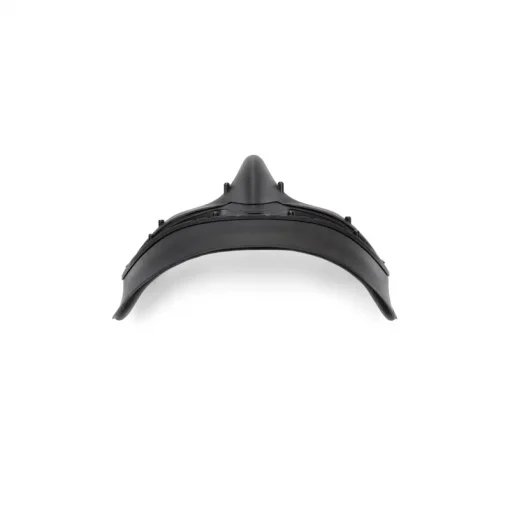

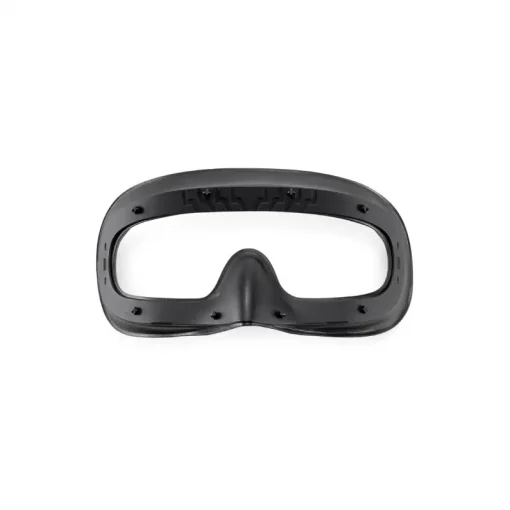

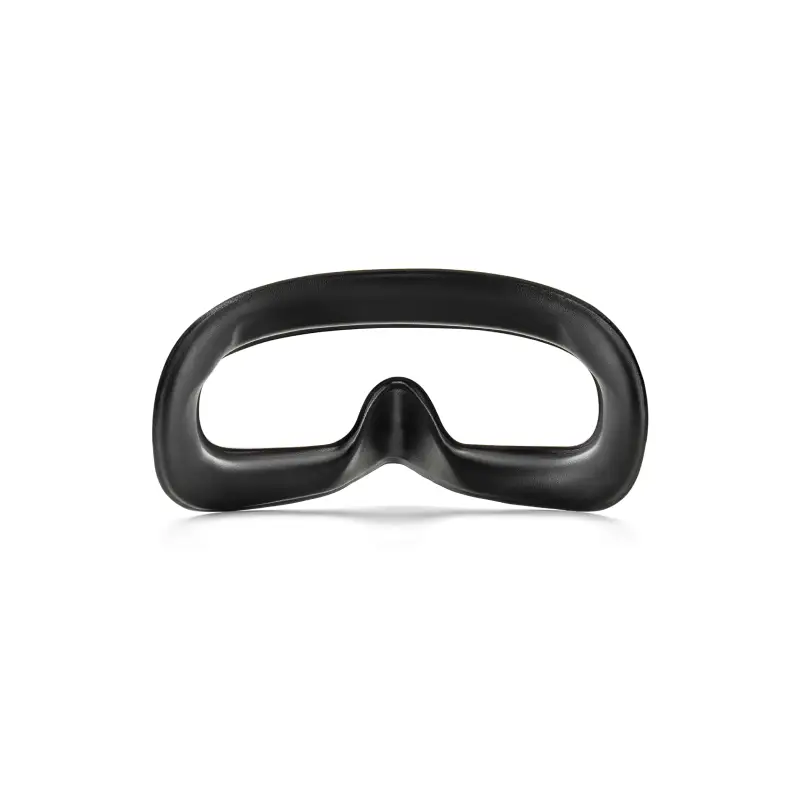

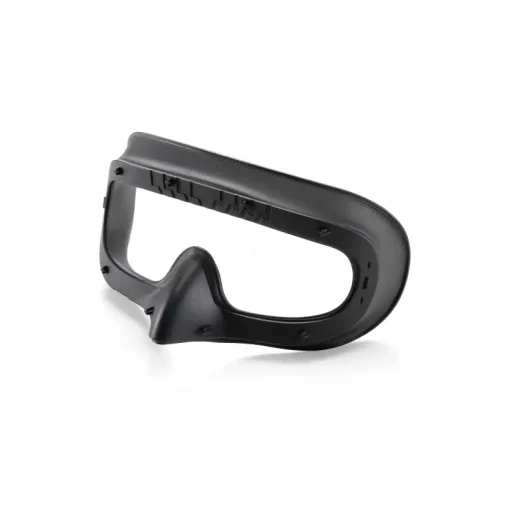

สายรัดแบตเตอรี่แบบบูรณาการและแผ่นโฟม
อายุการใช้งานแบตเตอรี่สูงสุด 2 ชั่วโมง

สเปค DJI Goggles Integra

General
Compatibility	DJI Avata / O3 Air Unit / Digital FPV System
Display	Quantity: 2 Type: Micro OLED Screen Size: 0.49″ / 12.5 mm (Each) Resolution: 1920 x 1080 (Each) Refresh Rate: Up to 100 Hz FOV: 44° (Each) Brightness: 700 cd/m²
IPD Coverage	56 to 72 mm
Video Recording Format	MOV
Playback Formats	Video: MP4, MOV (H.264/H.265) Audio: AAC, PCM
Memory Card	microSD (Up to 512 GB)
Inputs / Outputs
USB I/O	1 x USB-C Female Input/Output
Wireless
Mobile App Compatible	Yes: Android & iOS App Name: DJI Fly *As of March, 2023: Check with manufacturer for the most up-to-date compatibility
Video Transmission	Operating Frequency: 2.4000 to 2.4835 GHz and 5.725 to 5.850 GHz Transmitter Power (2.4 GHz) (EIRP): < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC) Transmitter Power (5.8 GHz) (EIRP): < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC) Transmission Latency (1080p/100): 30 ms Transmission Latency (1080p/60): 40 ms Distance (Avata): 7.5 Miles / 12 km (FCC) or 3.7 Miles / 6 km (CE/SRRC/MIC) Distance (O3 Air Unit): 6.2 Miles / 10 km (FCC), 3.7 Miles / 6 km (SRRC), or 1.2 Miles / 2 km (CE) Max Video Bitrate: 50 Mb/s
Power
Power Source	Battery (Built-In)
Battery Type	1 x Internal Rechargeable Lithium-Ion
DC Input Power	5.6 to 8.4 VDC
Capacity	2450 mAh
Operating Time	Up to 2 Hours
Chemical Formula	LINIMnCoO2
Energy	17.64 Wh
Maximum Charging Power	15 W (Charging When Powered Off)
Charging Temperature	5 to 45°C / 41 to 113°F
Environmental
Operating Temperature	-10 to 40°C / 14 to 104°F
Physical
Dimensions	170 x 104 x 74.44 mm / 6.7 x 4.1 x 2.93″ (Antennas Folded)
Weight	410 g / 14.5 oz (With Battery)

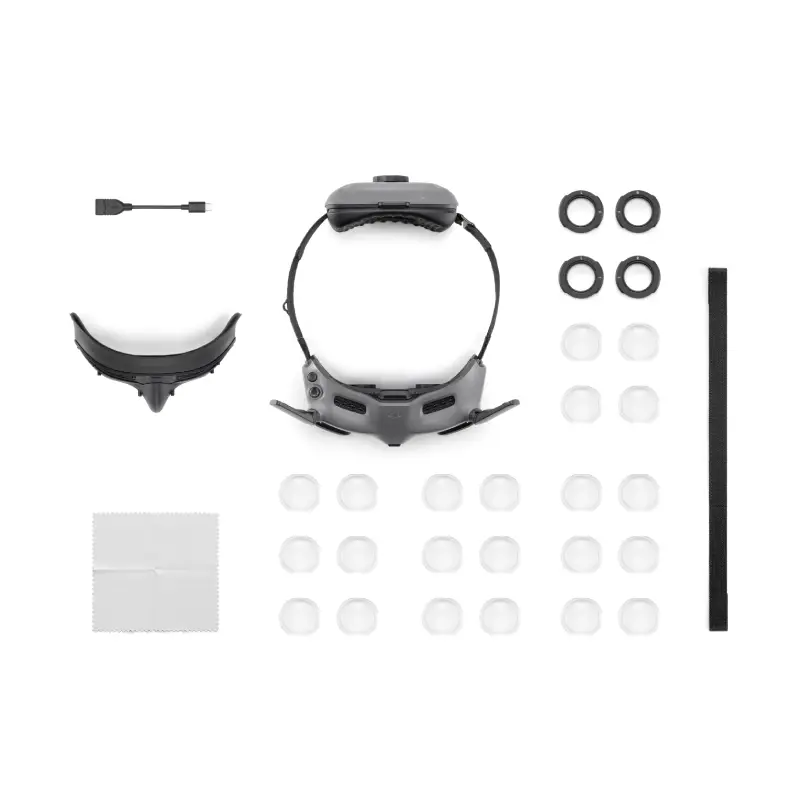

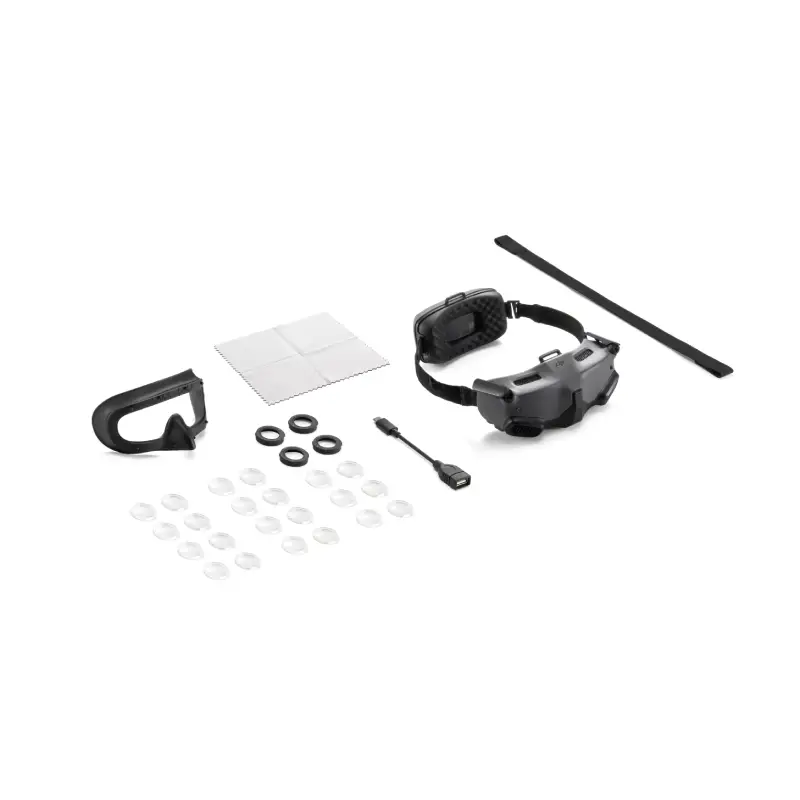

In The Box

DJI Goggles Integra
USB-C OTG Cable
2 x Pair of Eyeglass Frames
11 x Pair of Corrective Lenses
Top Headband
Lens Cleaning Cloth

DJI Goggles Integra-Detail1 DJI Goggles Integra-Detail2 DJI Goggles Integra-Detail3 DJI Goggles Integra-Detail4 DJI Goggles Integra-Detail5 DJI Goggles Integra-Detail6 DJI Goggles Integra-Detail7 DJI Goggles Integra-Detail8 DJI Goggles Integra-Detail9
