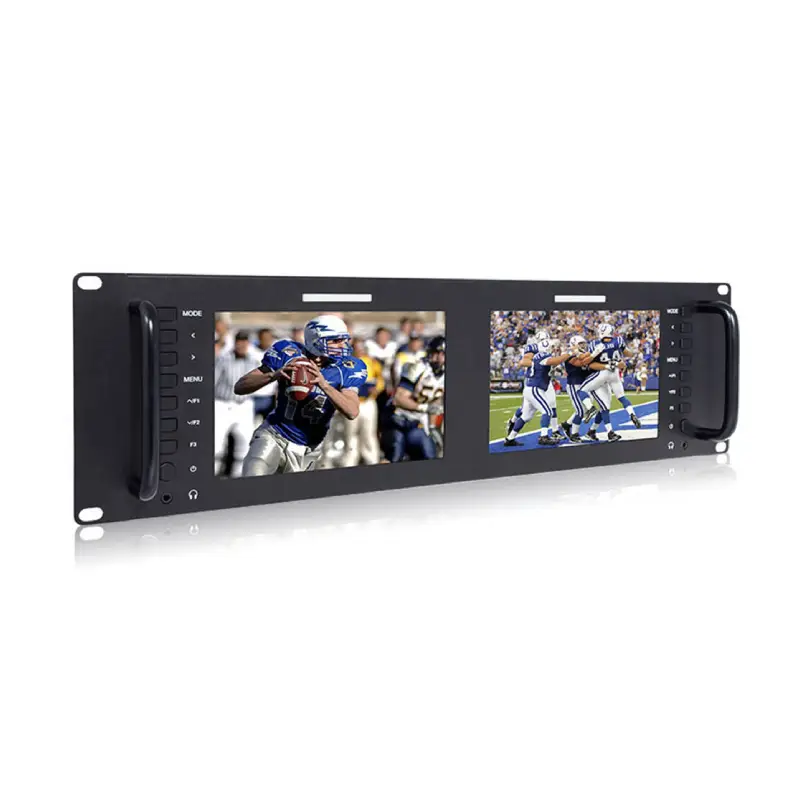

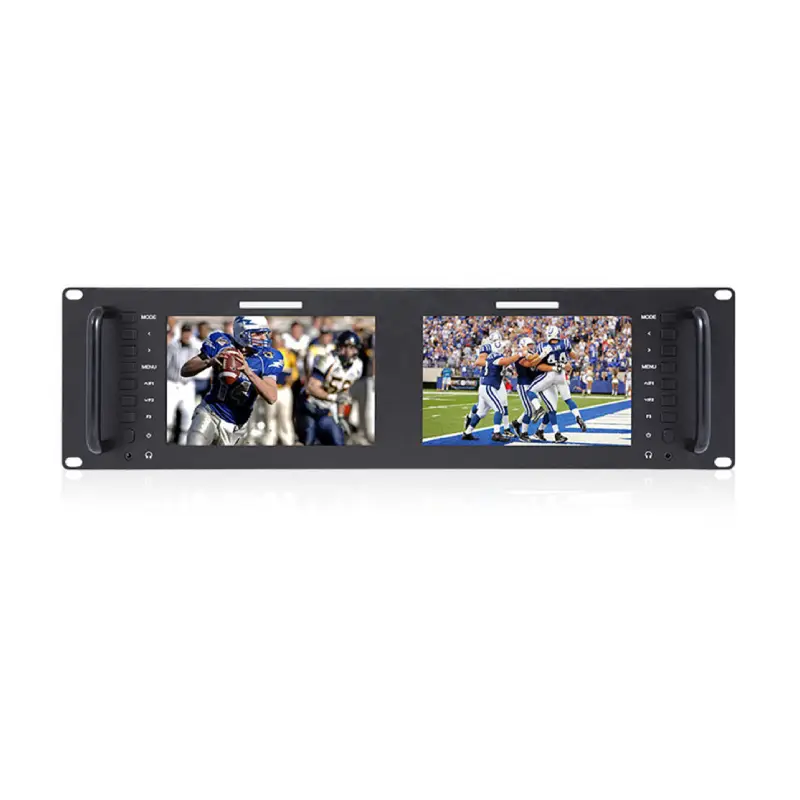

FeelWorld D71 Dual 7″ 3 RU Rackmount 3G-SDI/HDMI LCD Monitor

Out of Stock

จุดเด่นผลิตภัณฑ์

Display
Panel Type	IPS-Type LCD
Display Size	17.8 cm / 7.0″
Resolution	1280 x 800
Aspect Ratio	16:10
Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
Touchscreen	No
Maximum Brightness	400 cd/m²
Contrast Ratio	800:1
Dot Pitch	0.117 x 0.117 mm
HDR Compatibility	None
Pixels Per Inch (ppi)	215 ppi
Inputs / Outputs

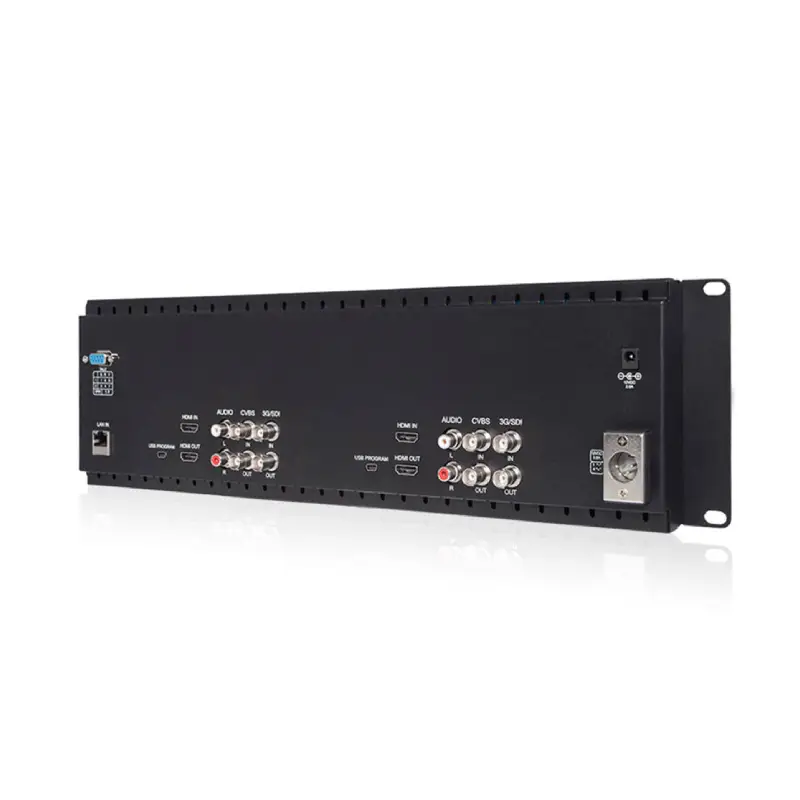

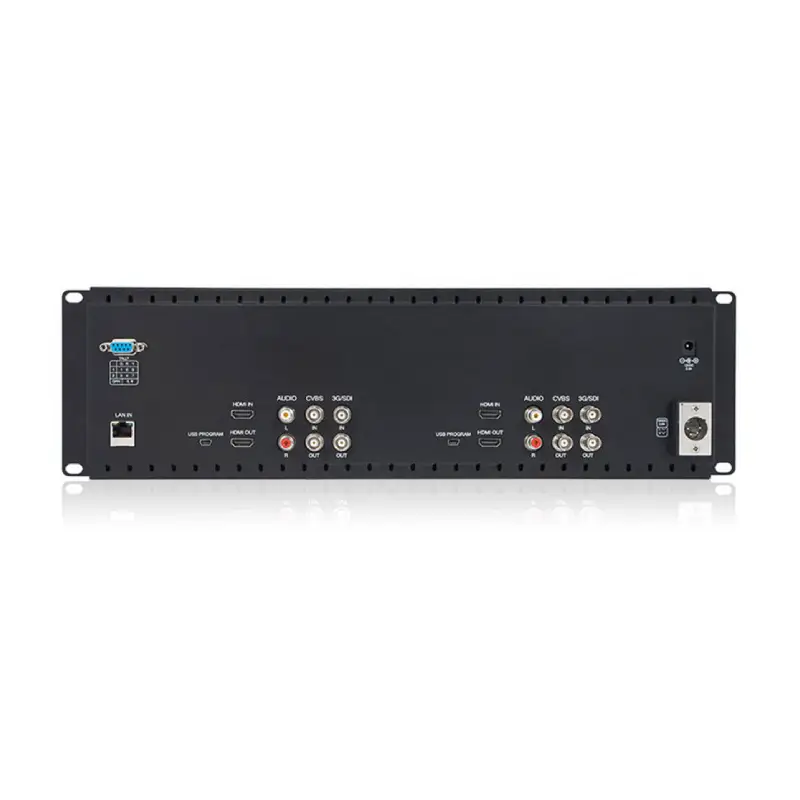

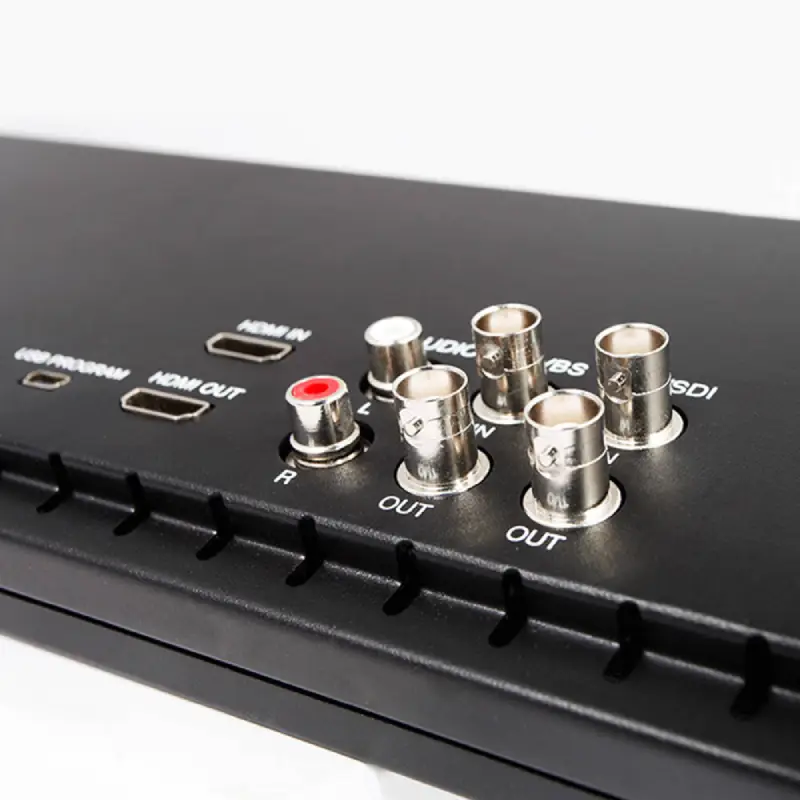

Video I/O	2 x BNC (3G-SDI) Input 2 x HDMI Input 2 x BNC (Composite) Input 2 x BNC (3G-SDI) Output 2 x HDMI Output 2 x BNC (Composite) Output
Audio I/O	2 x 2RCA Input 2 x 1/8″ / 3.5 mm Headphone Output
Built-In Speaker	None
Power I/O	1 x XLR 4-Pin Input 1 x Barrel Input

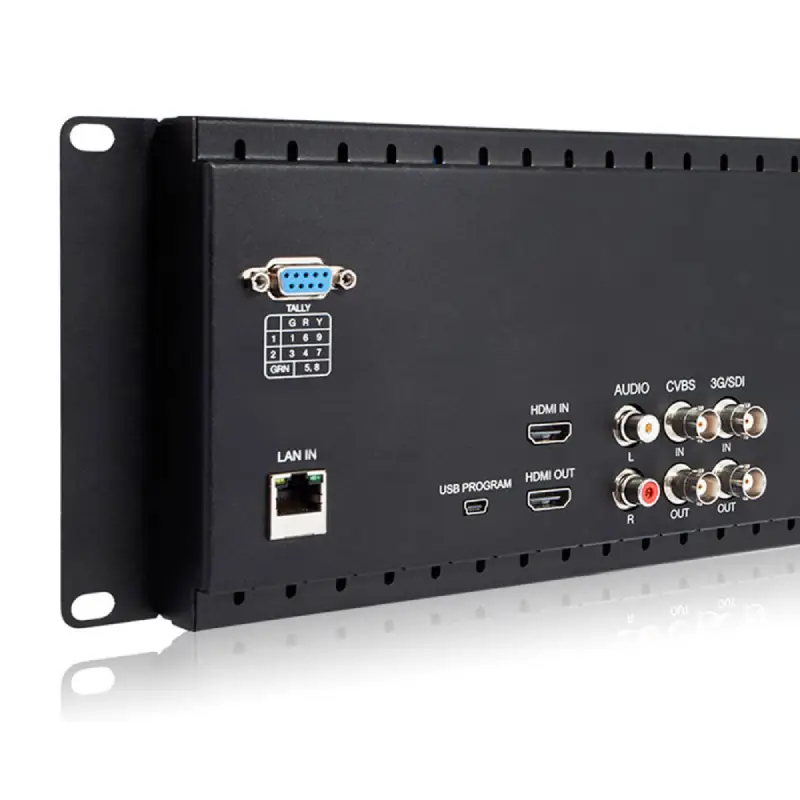

Other I/O	1 x DE-9/DB-9 (Tally) 1 x RJ45 (LAN)
Media/Memory Card Slot	None
Format Support
Video Format	SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576i 480i HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 576p 480p 576i 480i
Power
DC Input Power	9 to 24 VDC
Battery Type	None
Power Consumption	20 W (Maximum)
Mounting
Rack Form Factor	3 RU
Environmental
Operating Temperature	-20 to 55°C / 12 to 87°F
Storage Temperature	-30 to 65°C / -22 to 149°F
General
Material of Construction	Aluminum
Dimensions	48.3 x 13.2 x 3.1 cm / 19 x 5.2 x 1.2″
Weight	1.9 kg / 4.19 lb

FeelWorld D71 Dual 7 Inch 3 RU Rackmount 3G-SDI,HDMI LCD Monitor-Detail1

Specification
