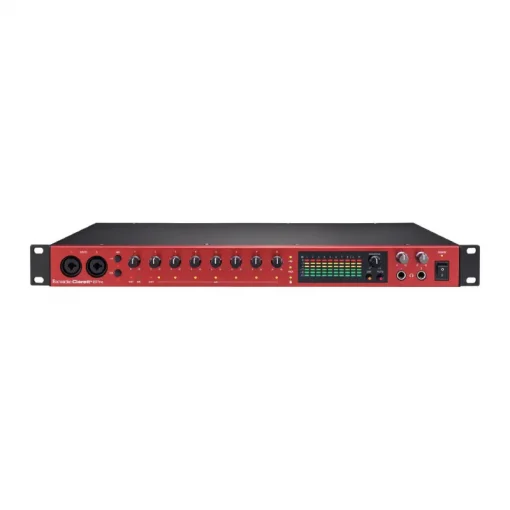

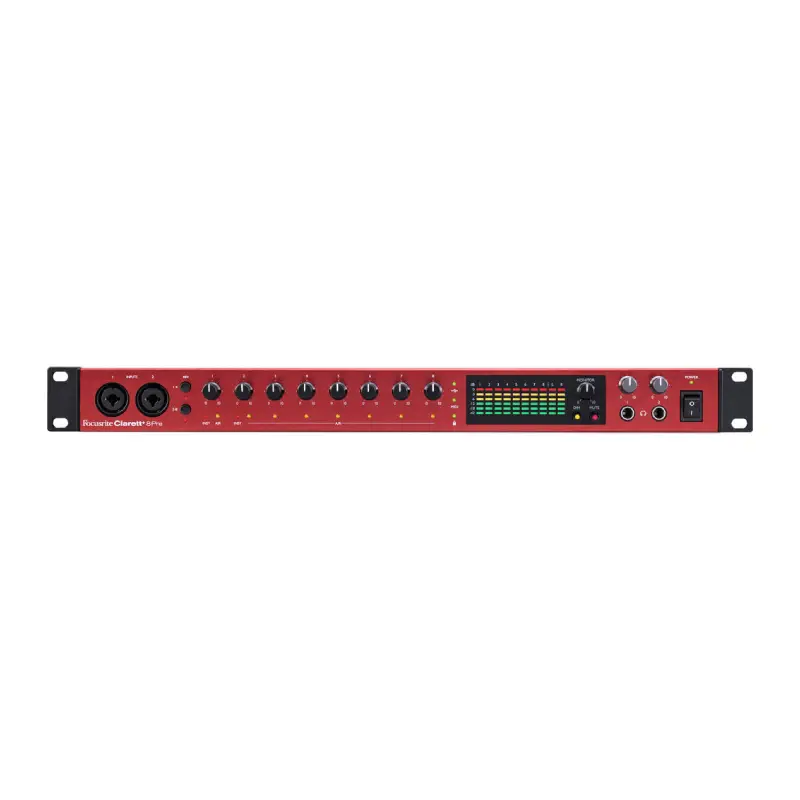

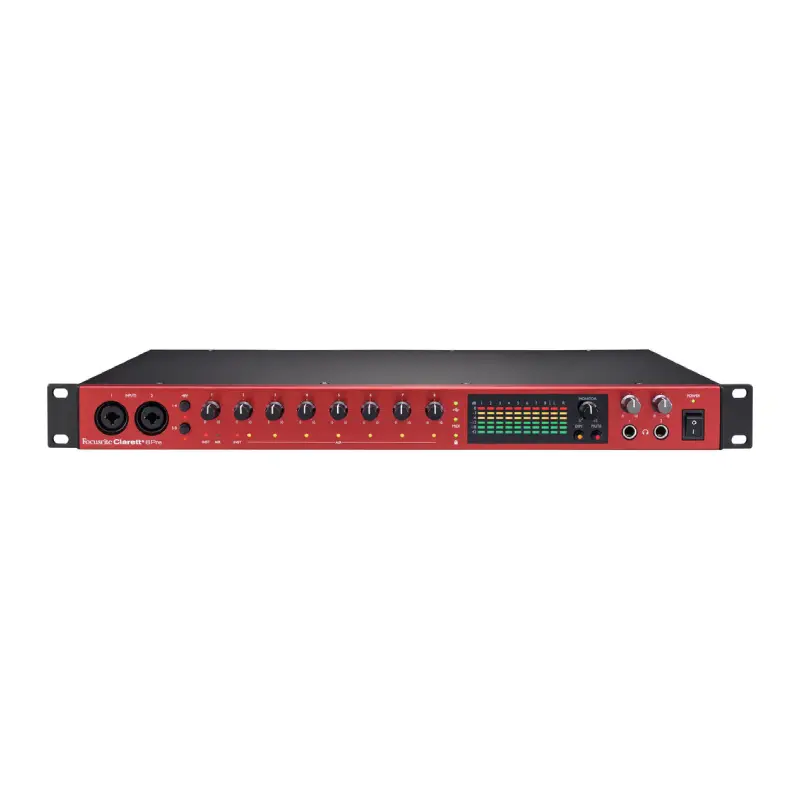

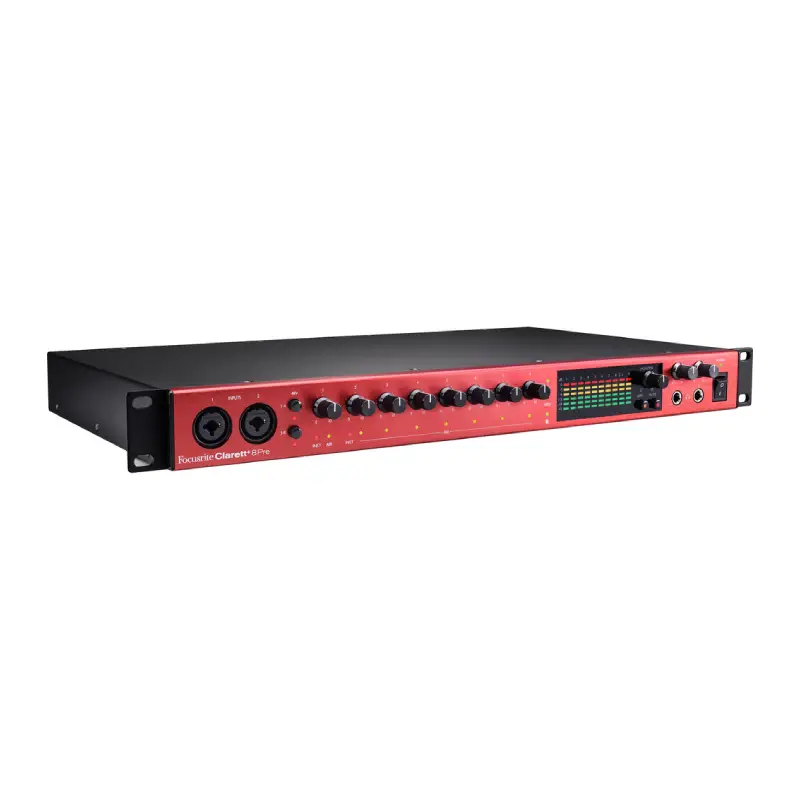

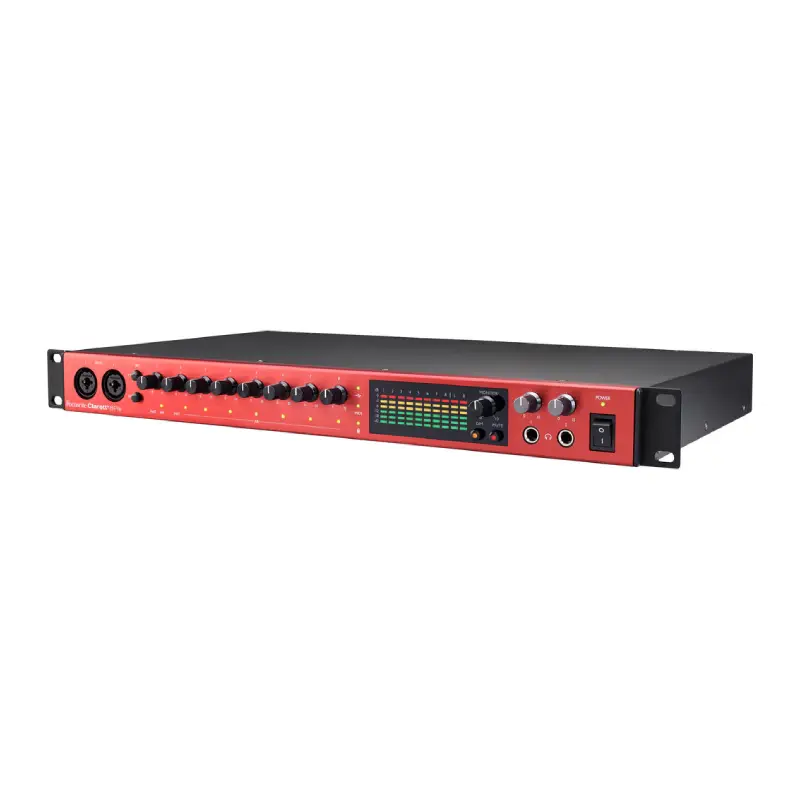

Focusrite Clarett+ 8Pre USB Type-C Audio/MIDI Interface
39,900 ฿
In Stock
Description
จุดเด่นผลิตภัณฑ์
- สำหรับ วงดนตรี สตูดิโอโปรเจค และโปรดิวเซอร์
- การเชื่อมต่อ USB Type-C และ Type-A
- อินพุต: 8 Mic/Line Preamps (2 พร้อม Hi-Z)
- เอาต์พุต: 2 หูฟัง, 2 จอภาพ, 4 Line
- อัพเกรด 24 บิต / 192 kHz Conversion
- แหล่งจ่ายไฟภายใน / Mac และ Windows
- Phantom Power, MIDI, S/PDIF, ADAT I/O
- โหมดไมค์แอร์, Multi-Segment Metering
- Wordclock เอาท์พุท
- รวม Focusrite & Brainworx Plug-Ins
สเปค Focusrite Clarett+ 8Pre USB Type-C Audio/MIDI Interface
| Form Factor | Rackmount |
| Display | 10 x Multi-Segment LED Meter |
| Channels of I/O | Analog: 8 Inputs / 10 Outputs Digital: 10 Inputs / 10 Outputs |
| Max Sample Rate/Resolution | 192 kHz / 24-Bit |
| Number of Mic Preamps | 8 |
| Input Level Adjustment | 8 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | Mic/Line/Hi-Z Inputs: +57 dB |
| High-Pass Filter | None |
| Solo/Mute | None |
| Connectivity | |

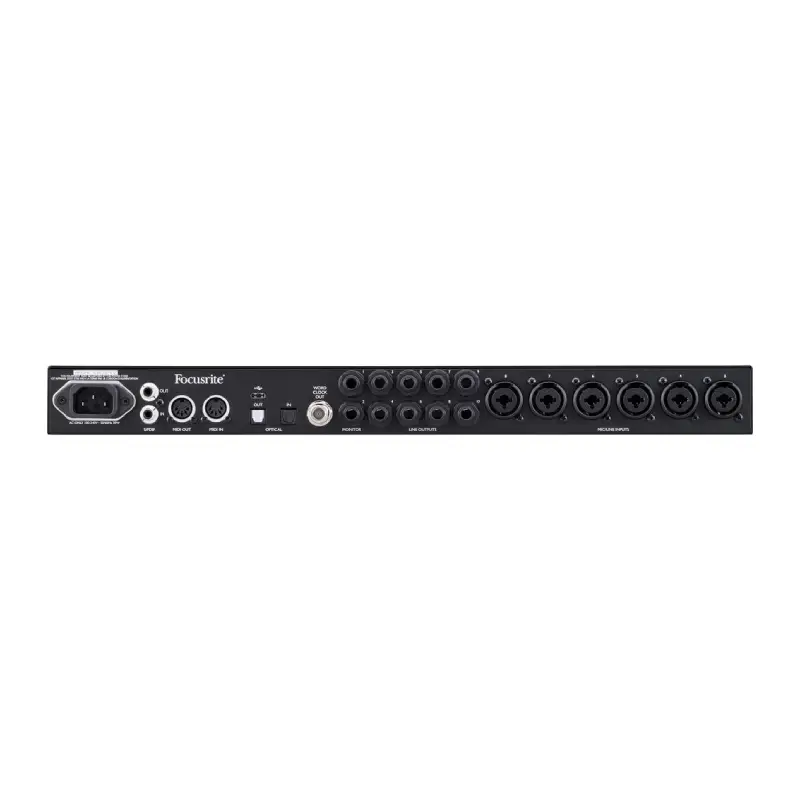

| Analog Audio I/O | 2 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel) 6 x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input 2 x 1/4″ TRS Balanced Monitor Output 8 x 1/4″ TRS Balanced Line Output 2 x 1/4″ TRS Unbalanced Headphone Output (Front Panel) |
| Phantom Power | 48 V, Selectable On/Off (on 8 Channels) |
| Digital Audio I/O | 1 x TOSLINK Optical ADAT Input (S/MUX Support) 1 x TOSLINK Optical ADAT Output (S/MUX Support) 1 x RCA Coaxial S/PDIF Input 1 x RCA Coaxial S/PDIF Output |
| Host Connection / USB | 1 x USB Type-C (USB 2.0) |
| USB (Non-Host) | None |
| Sync I/O | 1 x BNC Word Clock Output |
| Network I/O | None |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
| Wireless Connectivity | None |
| Performance | |
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz ±0.03 dB 20 Hz to 35 kHz ±0.15 dB Line Inputs: 20 Hz to 20 kHz ±0.05 dB 20 Hz to 35 kHz ±0.15 dB Hi-Z Inputs: 20 Hz to 20 kHz ±0.04 dB 20 Hz to 35 kHz ±0.15 dB Line, Monitor Outputs: 20 Hz to 20 kHz ±0.02 dB 20 Hz to 35 kHz ±0.02 dB Headphone Outputs: 20 Hz to 20 kHz ±0.06 dB 20 Hz to 35 kHz ±0.07 dB |
| Max Input Level | Mic Inputs: +18 dBu Line Inputs: +26 dBu Hi-Z Inputs: +15 dBu |
| Max Output Level | Line/Monitor Outputs: +18 dBu Headphone Outputs: +16 dBu |
| Impedance | Inputs: 2.2 Kilohms |
| Dynamic Range | Mic Inputs: 118 dB (Min Gain) Line Inputs: 118 dB (Min Gain) Hi-Z Inputs: 116 dB Line/Monitor Outputs: 124 dB Headphone Outputs: > 118 dB |
| THD+N | Mic Inputs: -110 dB (+20 dB Input, at -1 dBFS) Line Inputs: -100 dB (Min Gain, at -1 dBFS) Hi-Z Inputs: -96.5 dB (Min Gain, at -1 dBFS) Line/Monitor Outputs: -106 dB Headphone Outputs: -104 dB |
| EIN | Mic Inputs: < -129 dBu |
| Digital Audio | |
| Sample Rates | 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit (AD/DA Conversion) |
| Sync Sources | ADAT, Internal, S/PDIF |
| Memory Card Slot | None |
| Compatibility | |
| OS Compatibility | macOS 10.11 or Later macOS 11 Windows 7 or Later |
| Included Software | None |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |

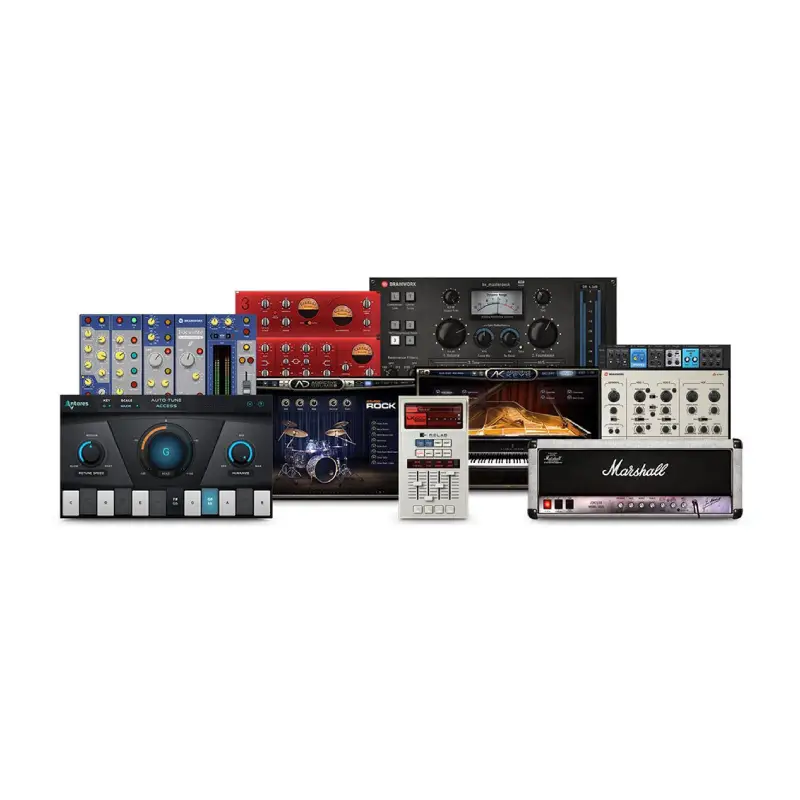

| Included Plug-Ins | Preamp & Channel Strip: Brainworx bx_console Focusrite SC Dynamics: Focusrite Red 3 Compressor Equalization: Focusrite Red 2 Equalizer |
| Supported Drivers/API & Plug-Ins | Proprietary |
| Mobile Device Compatibility | None |
| Required Hardware | Available USB 2.0 Port, USB 3.0 / 3.1 Gen 1 Port, or USB Type-C Port USB Cable (Included) |
| Internet Connection | Required for Registration, Software/Driver Download |
| Power | |
| Power Requirements | AC Input |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| Physical | |
| Rackmount Size | 1 RU |
| Dimensions | 48.3 x 29.2 x 4.3 cm / 19 x 11.5 x 1.7″ |
| Weight | 4.1 kg / 9.0 lb |
Specification
| Specification |
|---|
Additional information
| Choose | รับประกันศูนย์ 1 ปี |
|---|
