จุดเด่นผลิตภัณฑ์
- การบันทึกการแสดงคอนเสิร์ตและการซ้อมสด ในรูปแบบสเตอริโอหรือเสียงเซอร์ราวด์
- โลเคชั่นการถ่ายวิดีโอ H2n ให้คุณมีตัวเลือกมากมายในขั้นตอนหลังการถ่ายทำ
- การสร้างเสียงสำหรับวิดีโอ YouTube
- การสร้างเเสียงของเหตุการณ์สำคัญ
- เป็นไมโครโฟน USB ที่ให้อินพุตบันทึกกับซอฟต์แวร์

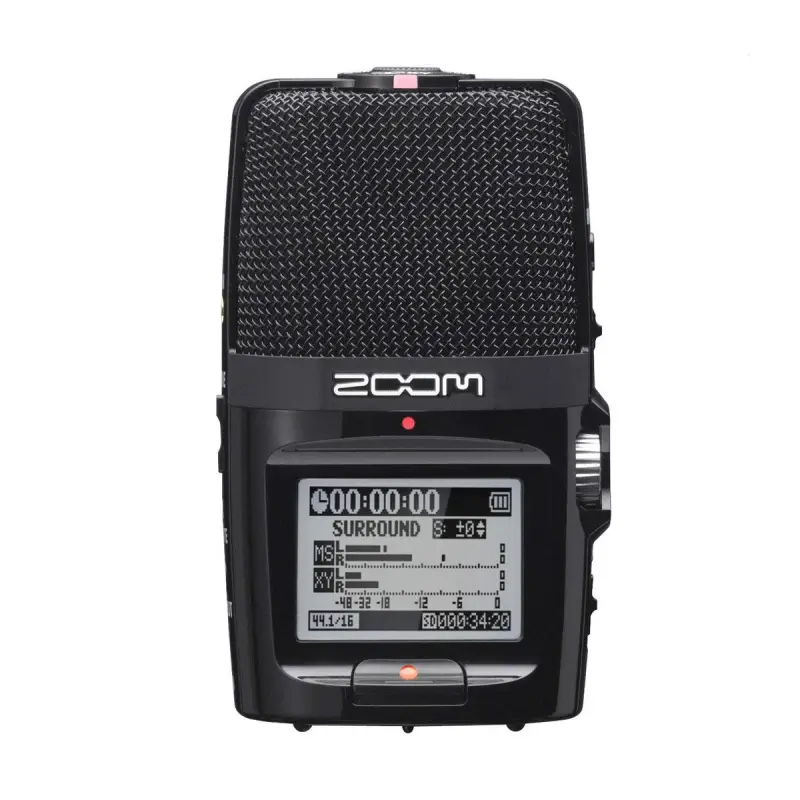

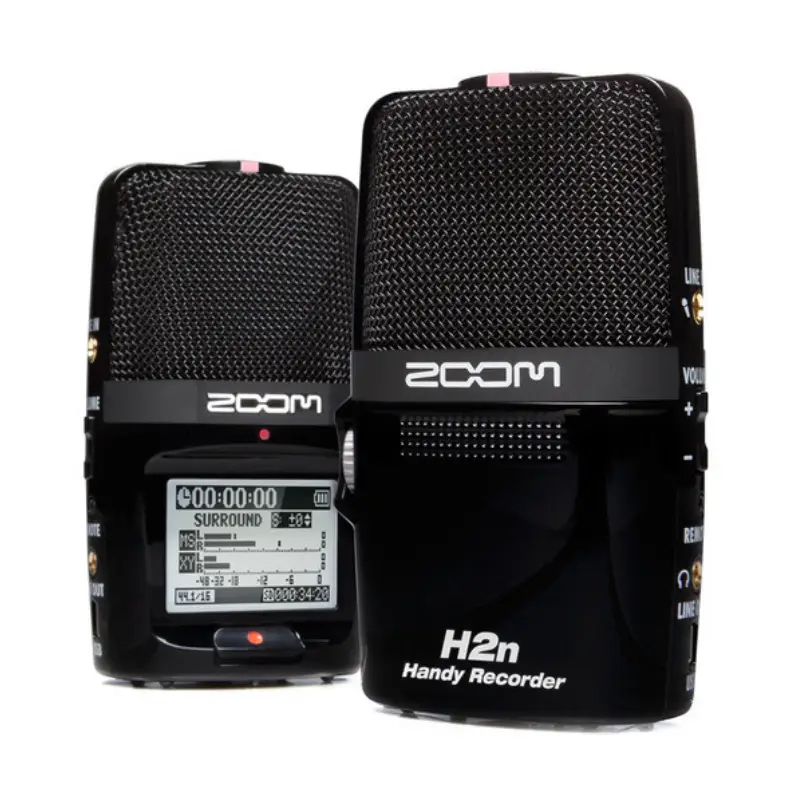

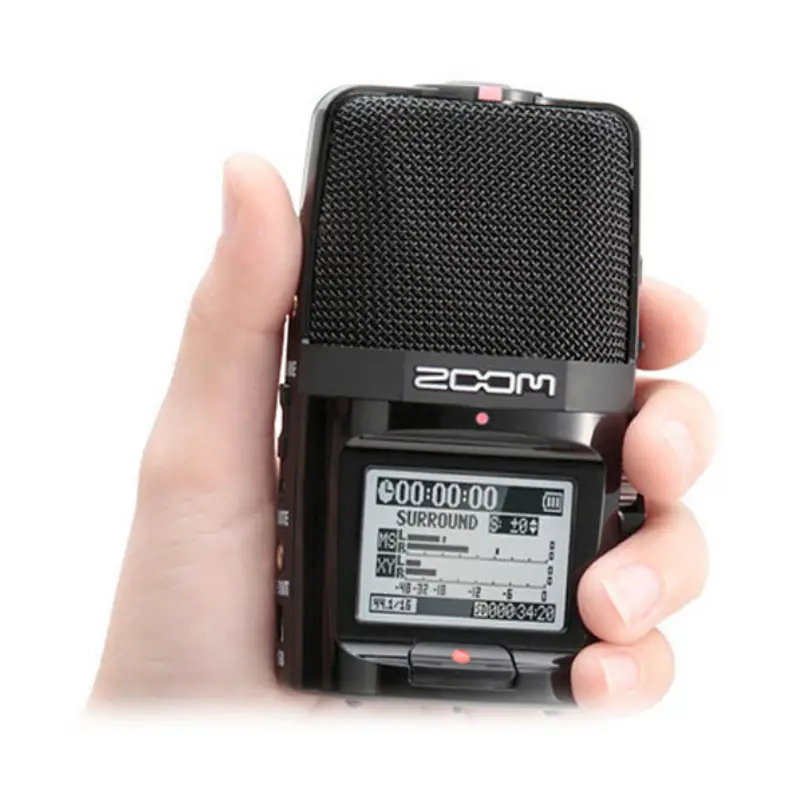

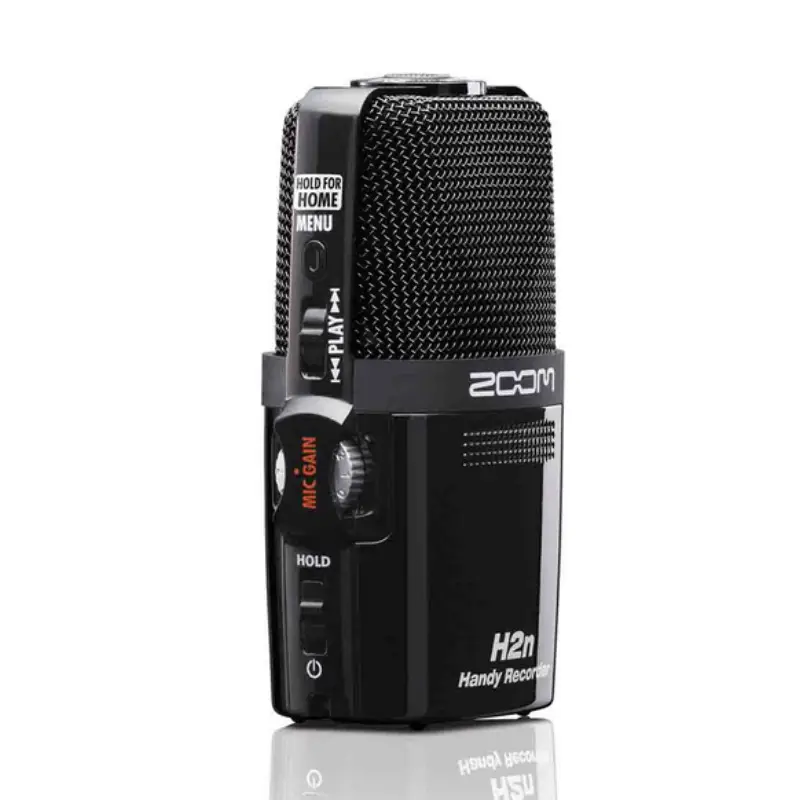

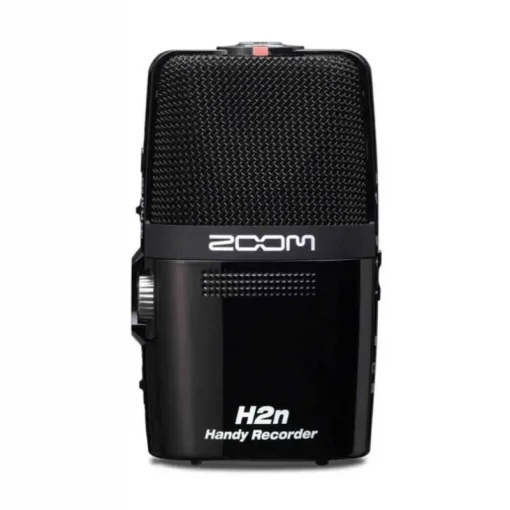

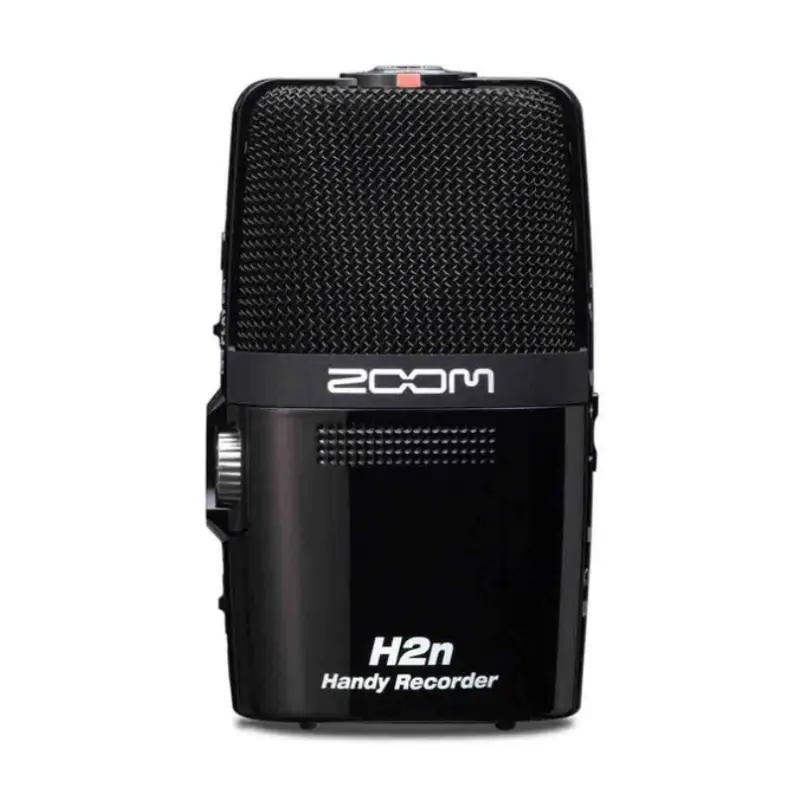

สเปค Zoom H2n Handy Recorder
GENERAL | |
Recording media: | 16MB–2GB SD cards, 4GB–32GB SDHC cards |
Built-in memory: | Up to 1 minute in 96kbps MP3 format
(Recording overwrites any previous recording in memory) |
Mic arrangements: | 90˚ X/Y stereo, MS stereo with adjustable side mic level |

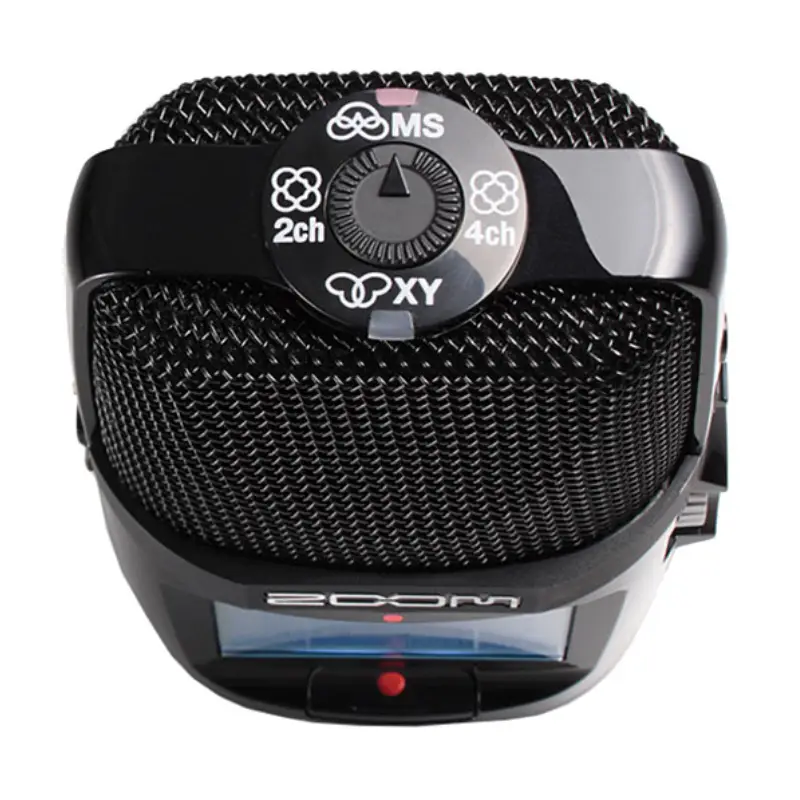

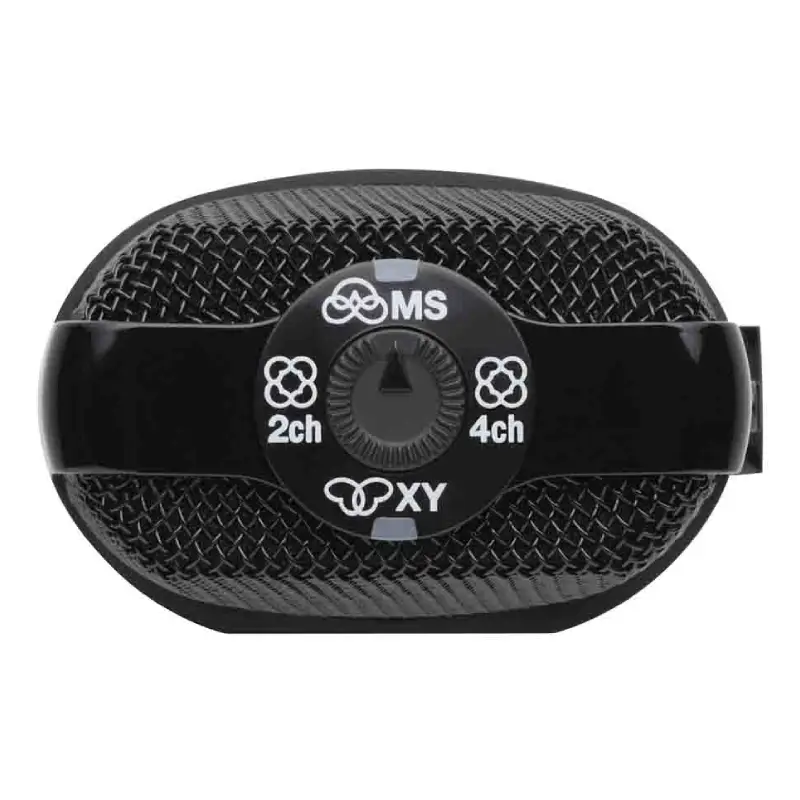

Recording modes: | MS, XY, MS+XY (2ch), MS+XY (4ch) |
Microphone types: | Directional (XY, MS mid mics)
Bidirectional (MS side mic) |
Maximum sound pressure input: | 120 dB spl (directional)
122 dB spl (bi-directional) |
FILE FORMATS | |
Stereo uncompressed PCM: | 44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF) |
Compressed MP3 (recording): | 44.1kHz, 48kHz
56 /64/80/96/112/128/160/192/ 224/256/320kbps (Not compatible with MS-RAW recording) |
Compressed MP3 (playback): | 44.1kHz, 48kHz
32/40/48/56/64/80/96/112/128/160/192/224/256/320kbps |
4ch uncompressed PCM: | 44.1 / 48 / 96kHz, 16 / 24bit WAV (BWF)
(Two stereo files for each recording) |
DIGITAL PROCESSING | |
A/D conversion: | 24-bit 128× oversampling |
D/A conversion: | 24-bit 128× oversampling |
Signal processing: | 32-bit |
Recording time (2GB card): | 3:08:00 (44.1kHz/16bit WAV), 34:43:00 (128kbps MP3) |
ADDITIONAL FEATURES | |
Lo cut: | 80Hz high-pass filter |
Comp/Limiter: | 3 types of compressors and 3 types of limiters |
Auto gain: | Automatic input gain adjustment (3 levels) |
Pre rec: | 2 seconds of pre-recording |
Auto rec: | Automatic recording start/stop, continuous standby |
Tuner: | Chromatic, guitar, bass and alternate (A/E/G/D/DADGAD) tunings with automatic string detection |
Metronome: | 40–250 BPM range, five tones, pre-count |
Speed: | Playback speed adjustable between 50–150% |
Key control: | Playback pitch adjustable ±6 semitones
(Cannot be used with 96kHz files) |
AB repeat: | Repeats playback between selected points in a file |
File divide: | Divides a file into two |
File normalize: | Maximizes file volume
(Cannot be used with MP3s) |
File MP3 encode: | Converts WAV files to MP3 formats at fixed bit rates |
Mark: | Up to 99 marks
(WAV files only) |
Surround mixer: | Adjusts mix balance when playing back 4ch surround recordings |
OTHER | |
Display graphic: | 128×64 pixels backlit LCD |
Input gain: | 0 to +39 dB |

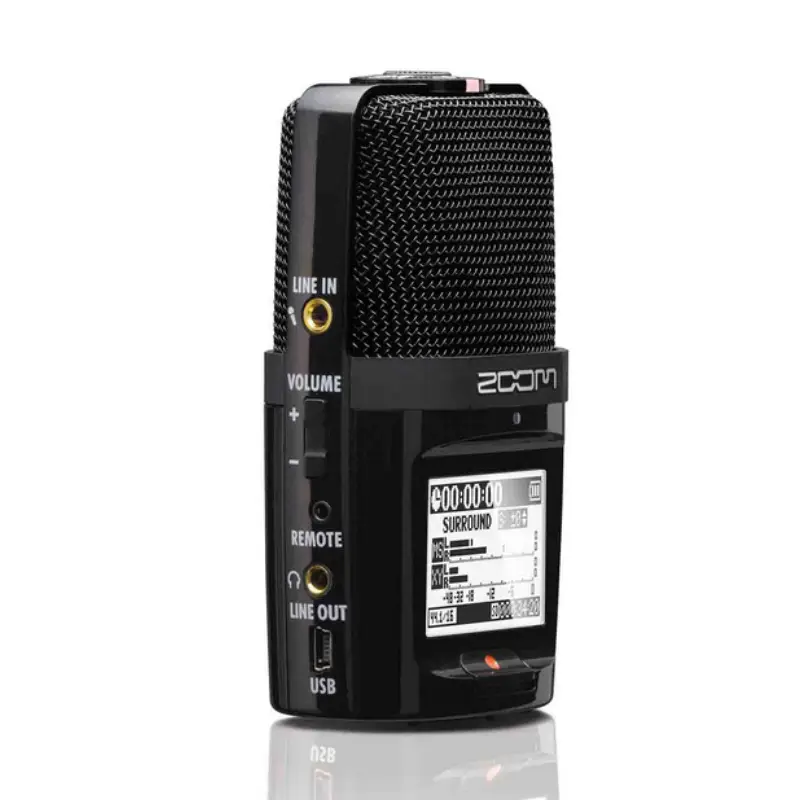

Input jack: | Line/mic stereo mini jack with plug-in power
2 kΩ impedance at input levels of 0 to –39 dBm |
Output jack: | Line/headphone stereo mini jack |
Rated output level: | −10 dBm (output impedance 10 kΩ or more) |
Headphones: | 20 mW + 20 mW (into 32 Ω load) |
Built-in speaker: | 400mW, 8Ω, mono |
USB: | Mini-B type
Card reader operation |
USB 2.0 high speed: | Audio interface operation |
USB 1.0 full speed: | Supports 44.1 / 48kHz sampling rates and 16-bit rate
USB bus power operation supported |

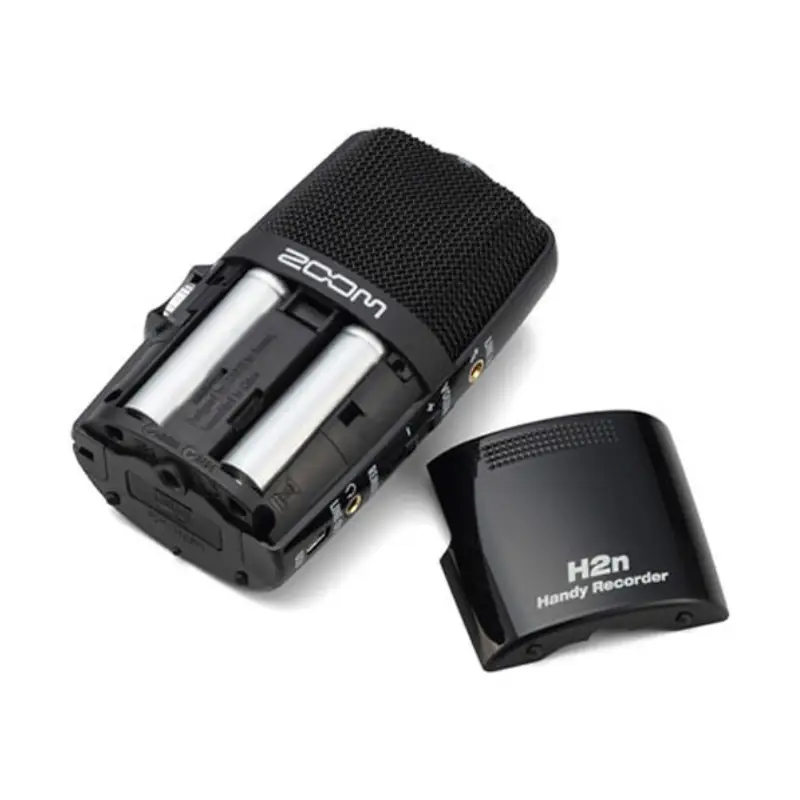

Power: | Two AA batteries, AD-17 USB to AC adapter (DC 5V 1A)
Continuous operation of 20 or more hours when recording 44.1kHz/16-bit WAV files using alkaline batteries |
Physical features: | Tripod mounting socket, strap attachment |
Dimensions: | 67.6mm (W) × 113.85mm (H) × 42.7mm (D) |
Weight: | 130 g (without batteries) |
อุปกรณ์ภายในกล่อง
Here’s what comes included with the H2n:
- Operation manual
Optional H2n Pro accessories
- WSU-1 universal hairy windscreen
- HS-1 hot shoe mount
- MA-2 tripod to mic stand adapter for Handy Recorders

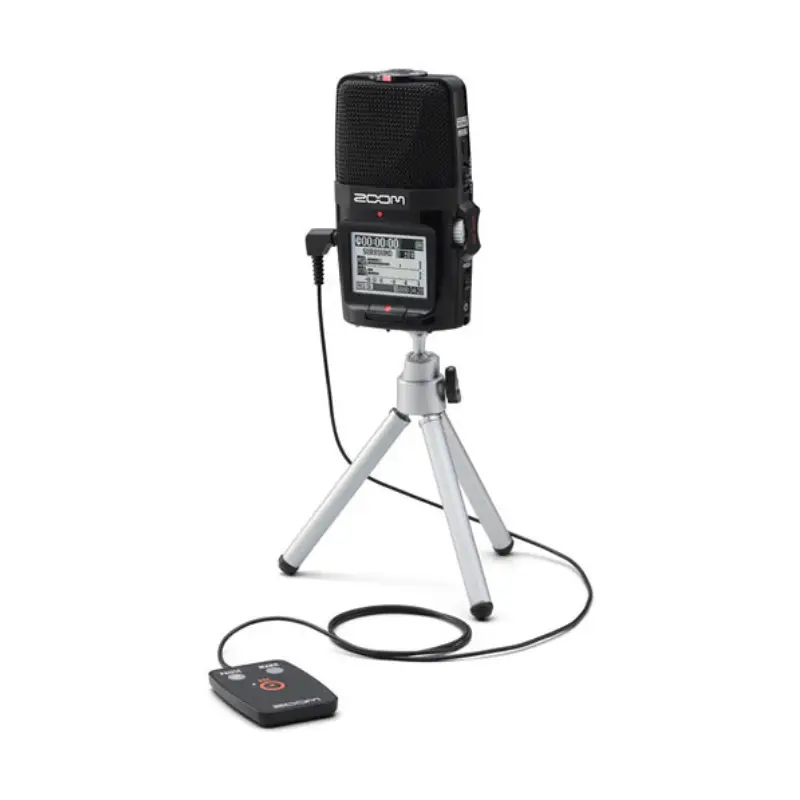

- APH-2n accessory package includes remote control with extension cable, windscreen, AD-17 AC adapter (USB type), USB cable, adjustable tripod stand, padded-shell case, and a mic clip adapter.
