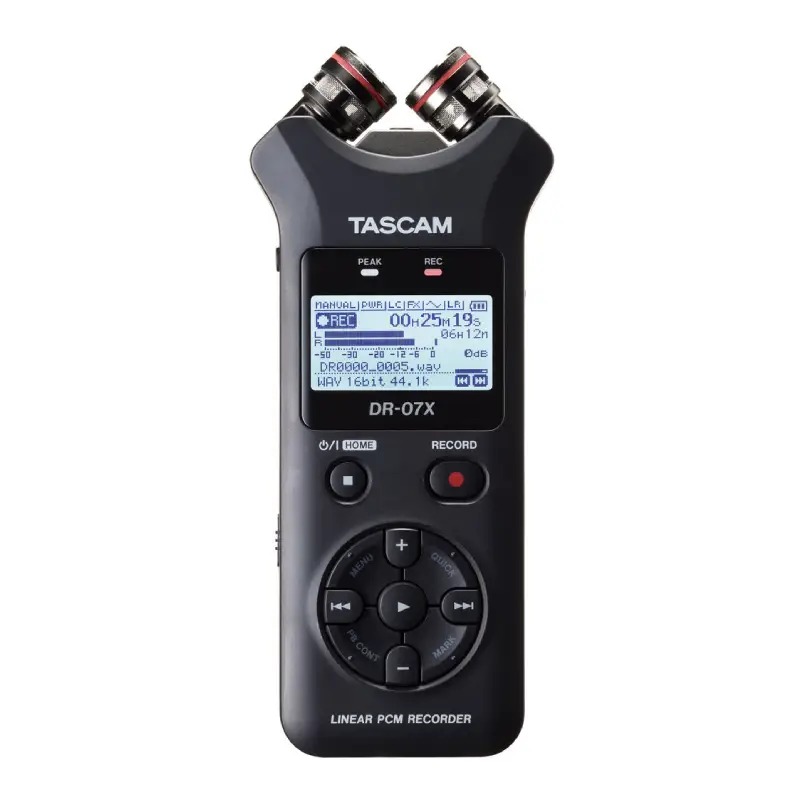

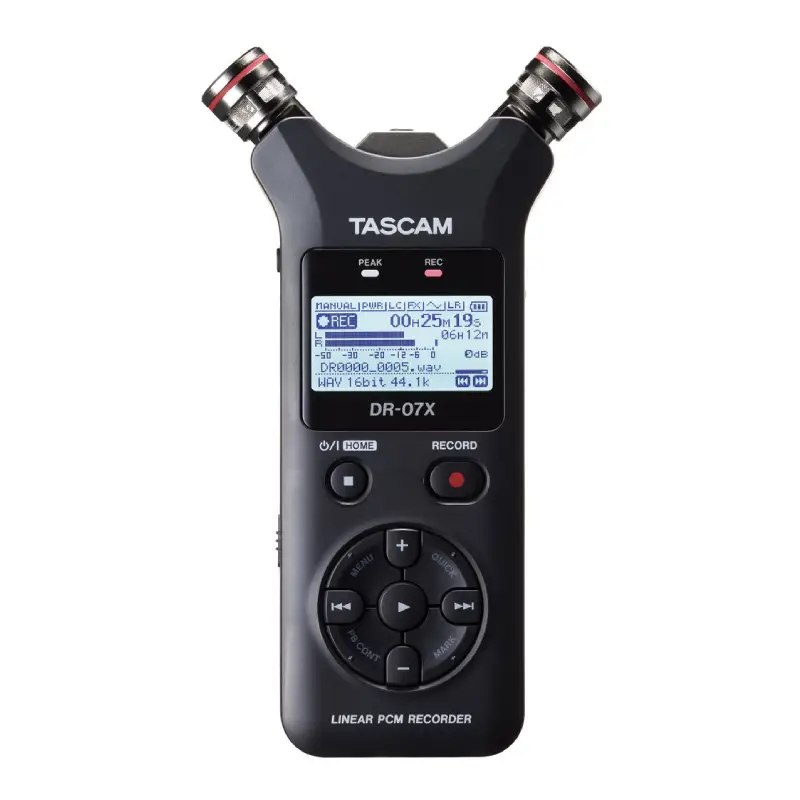

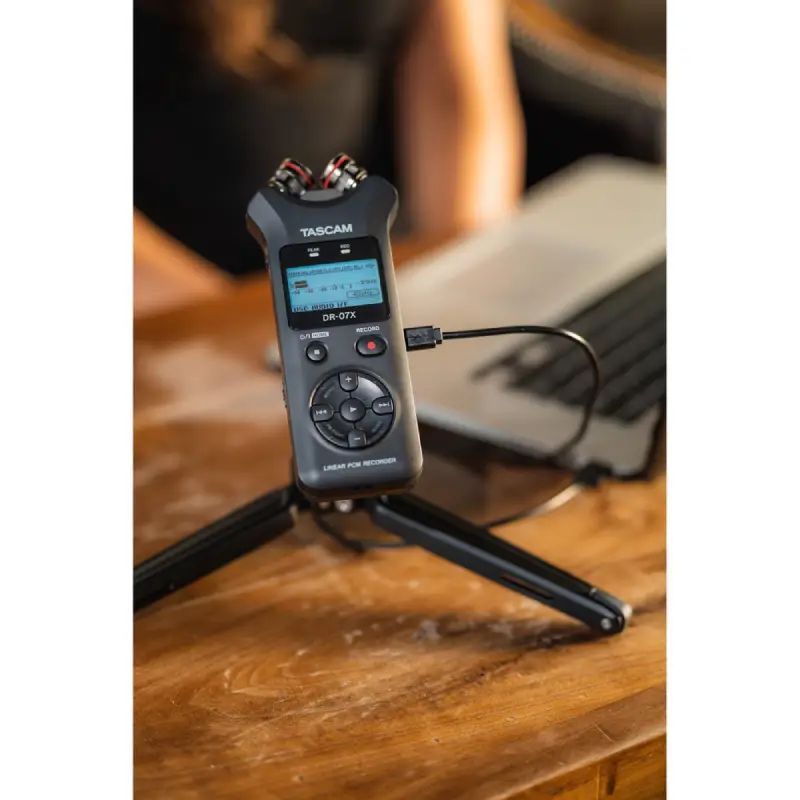

Tascam DR-07X Stereo Handheld Digital Audio Recorder and USB Audio Interface

Name: Tascam DR-07X Stereo Handheld Digital Audio Recorder and USB Audio Interface
Brand: Tascam
SKU: 181031
Price: 5990 THB
Availability: InStock

5,990 ฿

In Stock

Choose

Clear

SKU: N/A Category: Recorder/Mixer - เครื่องบันทึกเสียง มิกเซอร์ Tags: Handy Recorder, Recorder, Tascam Brand: Tascam

Description

จุดเด่นผลิตภัณฑ์

ความละเอียดในการบันทึกเสียงที่ 24-bit / 96KHz
บันทึกไฟล์ .wav และ ไฟล์ .mp3
บันทึก 2 Channel (Stereo)
มีพอร์ต 3.5mm สำหรับ Line Out
มีพอร์ต micro USB สำหรับการเชื่อมต่อกับคอมพิวเตอร์ PC / Mac
สามารถต่อไมโครโฟนแยกได้

สเปค Tascam DR-07X Stereo Handheld Digital Audio Recorder and USB Audio Interface

Recording Media	microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)
File System	FAT16/32, exFAT
WAV / BWF
Sampling Frequency	44.1k / 48k / 96k Hz
Bit-depth	16 / 24-bit
MP3
Sampling Frequency	44.1k / 48k Hz
Bit-rate for recording	32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate	32k to 320k bps, VBR, ID3TAG Ver. 2.4
Number of Channels	2-channel (Stereo) / 1-channel (Mono)
Playback speed control	0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only

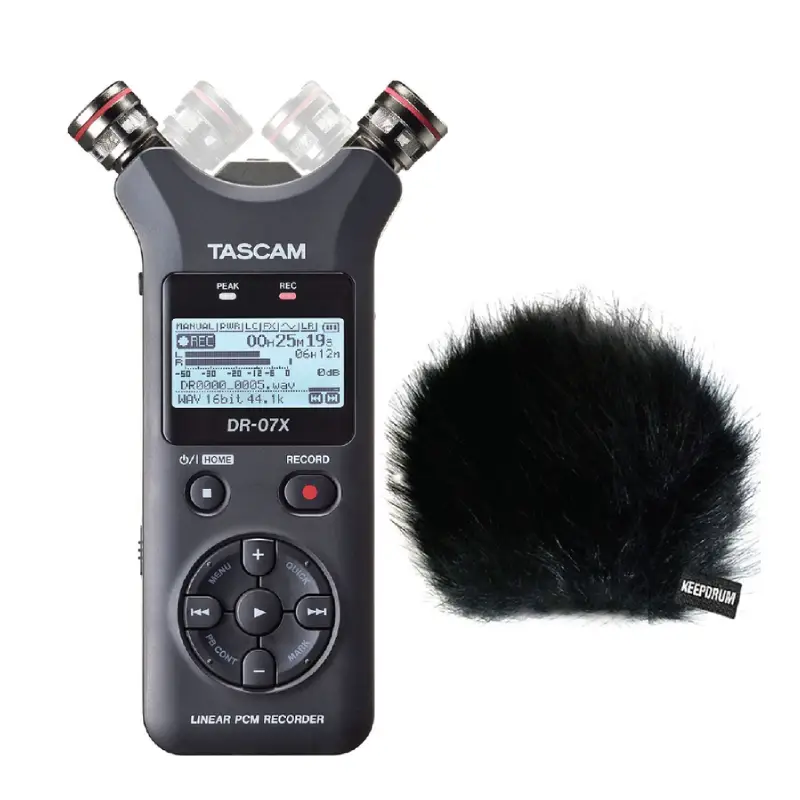

Built-in Microphone	Unidirectional, Stereo (switchable between A-B and X-Y positions)
MIC/EXT IN
Connector	1/8″ (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
for LINE connection
Nominal Output Level	-14dBV (10kΩ load)
Maximum Output Level	+2dBV (10kΩ load)
Output Impedance	12Ω
for Headphones connection
Maximum Output Power	20mW + 20mW (32Ω load)
USB
Connector	USB Micro B-type
Format	USB2.0 HIGH-SPEED
Built-in Speaker	0.3W, Mono
Low-cut Filter	40 / 80 / 120Hz
Chromatic Tuner	C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector	6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)
Tripod attachment screw-hole	1/4″ Tripod attachment screw-hole
Power	2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption	1.7 W (Max)
Battery Operation Time (Recording)
Alkaline (EVOLTA)	approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop)	approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Dimensions (W×H×D)	68 × 158 × 26 mm / 2.67″ × 6.22″ × 1.02″
Weight	127 g / 4.5 oz
Audio Performance
Frequency Response
Fs 44.1kHz	20Hz to 20kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz	20Hz to 22kHz, +0/-1dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz	20Hz to 40kHz, +0/-1.5dB (EXT IN to LINE OUT, JEITA)
Total Harmonic Distortion	0.01% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
Signal-to-Noise Ratio	94 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
Computer system requirements
Windows	Windows computer with a USB 2.0 (or higher)
Mac	Mac with a USB 2.0 (or higher)
	* Verified with Intel and Apple Silicon (M1 and M2) hardware
Supported OS’
Windows	Windows 11 , Windows 10 (November 2021 Update) , Windows 10 (May 2021 Update) , Windows 10 (October 2020 Update) , Windows 10 (May 2020 Update) , Windows 8.1 , Windows 7
Mac	macOS Monterey , macOS Big Sur , macOS Catalina , macOS Mojave , macOS High Sierra (10.13) , macOS Sierra‎ (10.12)
iOS	iOS 16 New , iOS 15 , iPadOS 15 , iPadOS 14 , iOS 14 , iPadOS 13 , iOS 13 , iOS 12 , iOS 11
	*1: The performance of the media may be degraded significantly if it will be used repeatedly. ERASE FORMAT by DR-07X is recommended before use.
