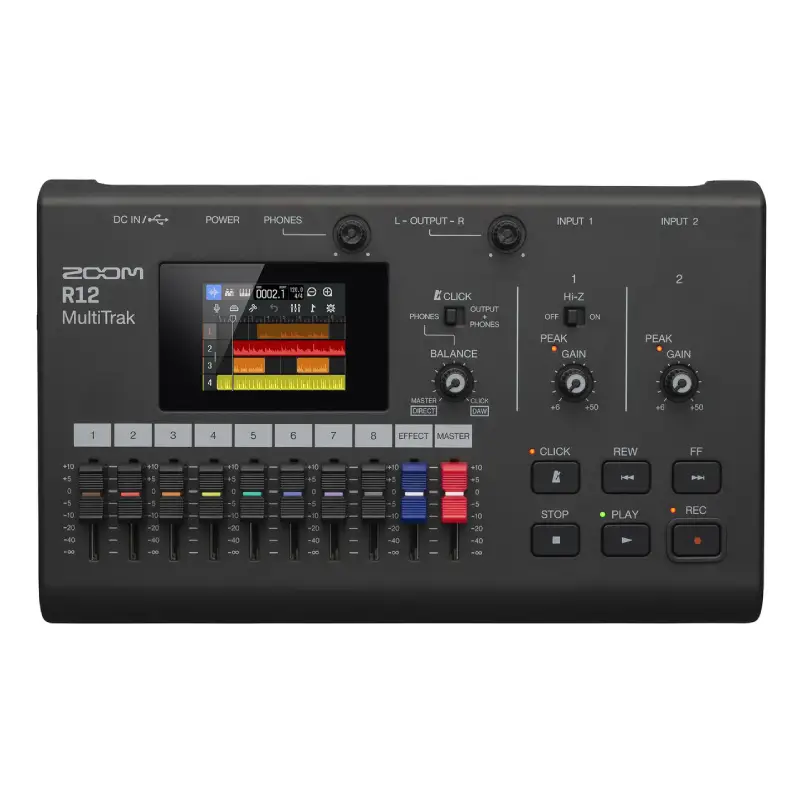

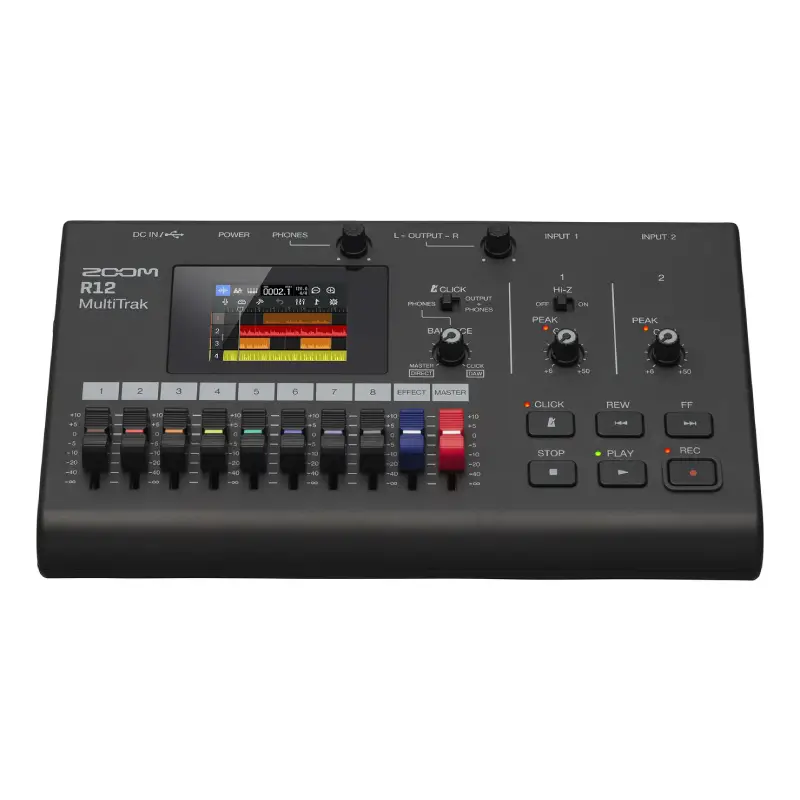

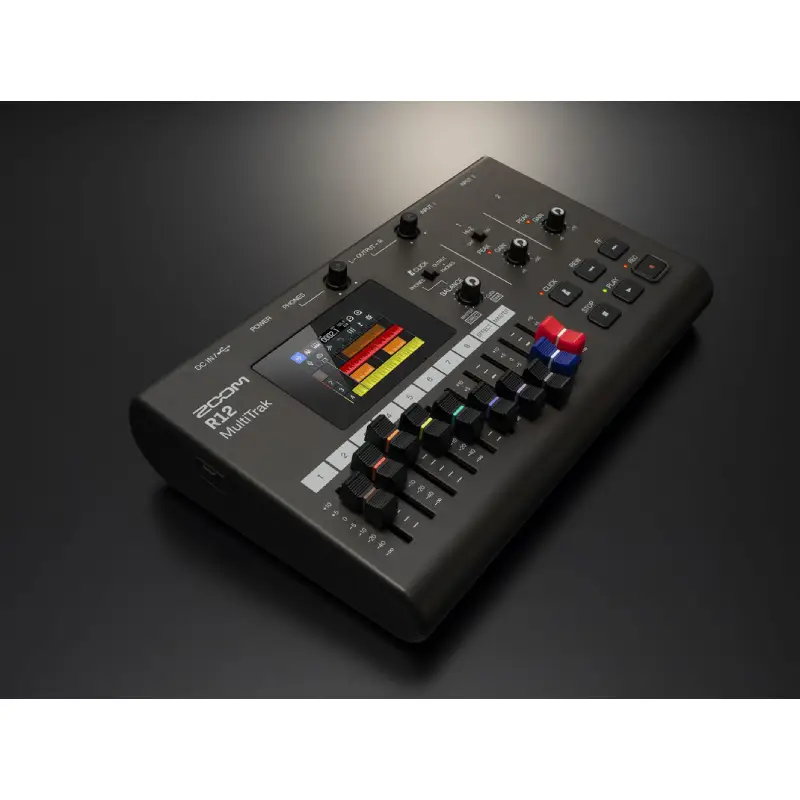

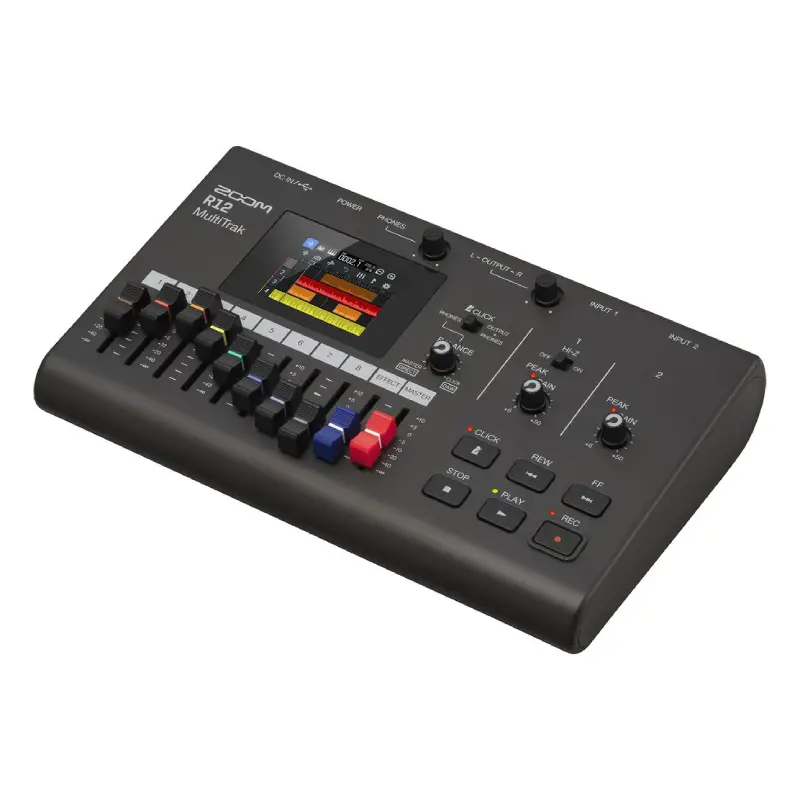

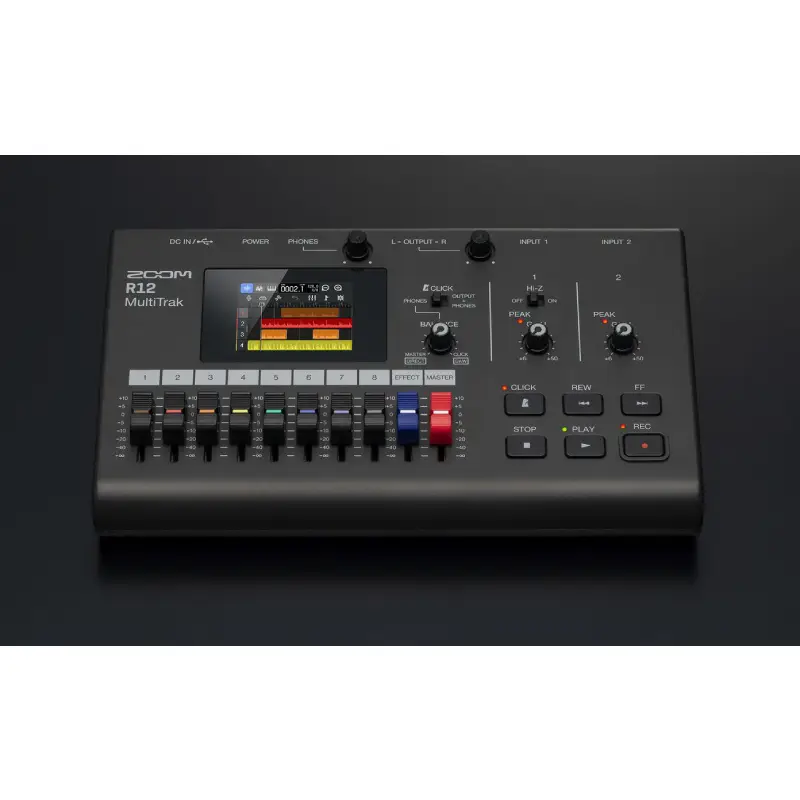

Zoom R12 Multi Track Recorder

PHONES : 1

Input gain : +6 ~ +50 dB

Input impedance : XLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)

Phantom power : +48 V (switchable separately for INPUTS 1 and 2)

Equivalent input noise : –121 dBu or less (IHF-A) at +50 dB/150 Ω input

Frequency response : −1.0/+0.5 dB: 20 Hz – 20 kHz

Maximum output level : +14 dBu

Output impedance : 200 Ω

Maximum output level : 45 mW + 45 mW (into 32 Ω load)

Output impedance : 10 Ω

Maximum simultaneous playback tracks : 8

Recording format : 44.1kHz, 16/24-bit, mono/stereo WAV

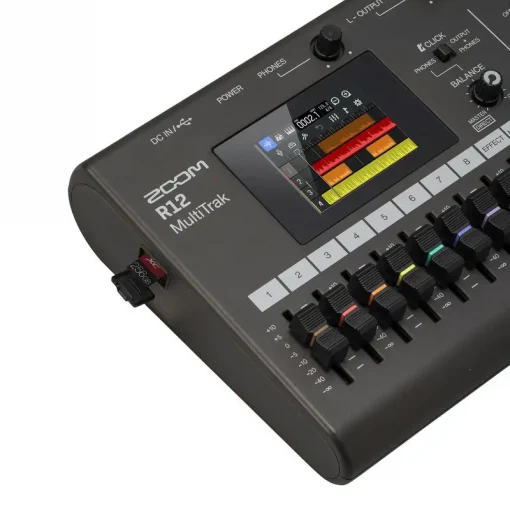

Recording media :

• Cards compatible with microSDHC specifications 4 GB – 32 GB
• Cards compatible with microSDXC specifications 64 GB – 1 TB

• High: 10 kHz, ±12 dB, shelving
• Middle: 2.5 kHz, ±12 dB, peaking
• Low: 100 Hz, ±12 dB, shelving

Pan :

• L100 – R100

Patch memory effects :

• 3 types can be used simultaneously
• 50 patch memories
• Guitar Lab supported
• Can be assigned and used as an insert (input) or send effect

Dedicated send effects : 10 types of spatial effects

Tempo range : 40.0 – 250.0 BPM

Number of loops : 150

Polyphony : 8

Number of sound types : 18 (and a PCM drum kit)

Note: Use a USB cable that supports data transfer. USB bus power is supported.

• USB 2.0 Full Speed
• 44.1 kHz, 16/24-bit

2-in/4-out :

• USB 2.0 High Speed
• 44.1 kHz, 16/24-bit

AC adapter: ZOOM AD-17 (5V/1.0A)

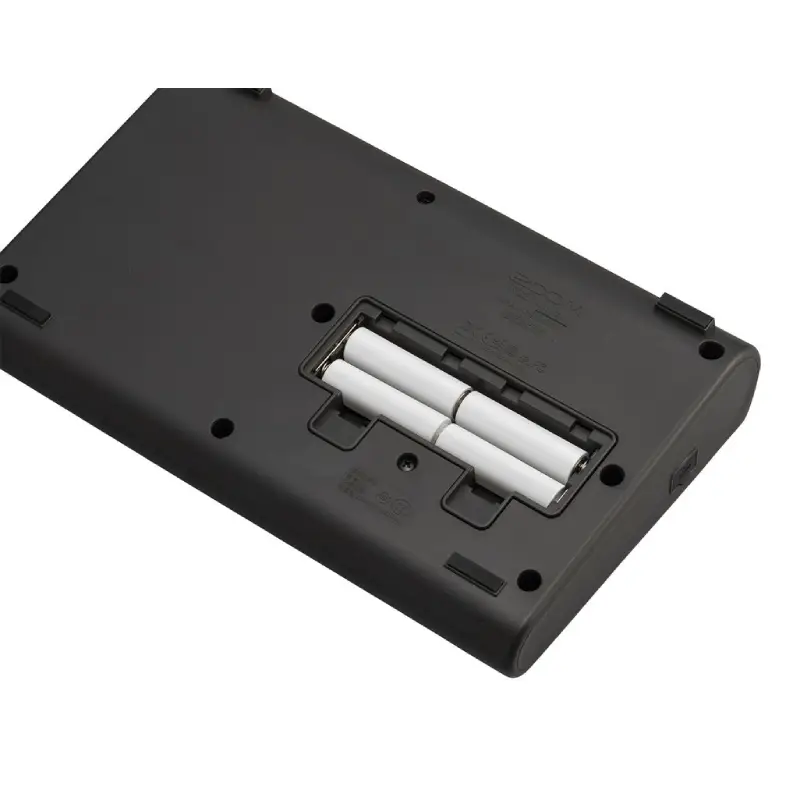

Alkaline batteries: about 5 hours

NiMH batteries (1900 mAh): about 5 hours

Lithium batteries: about 11 hours

• The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
