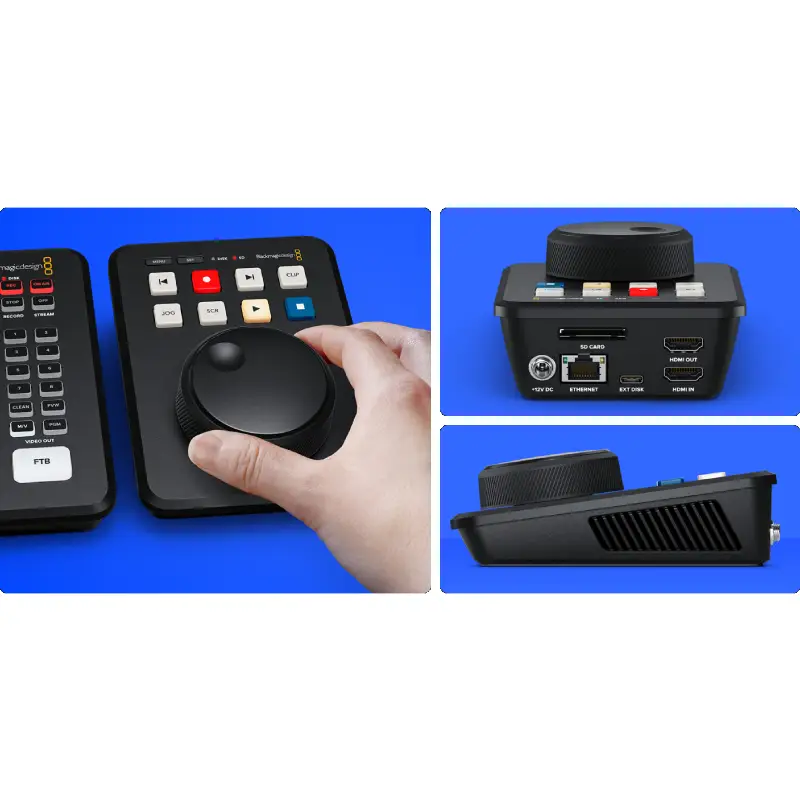

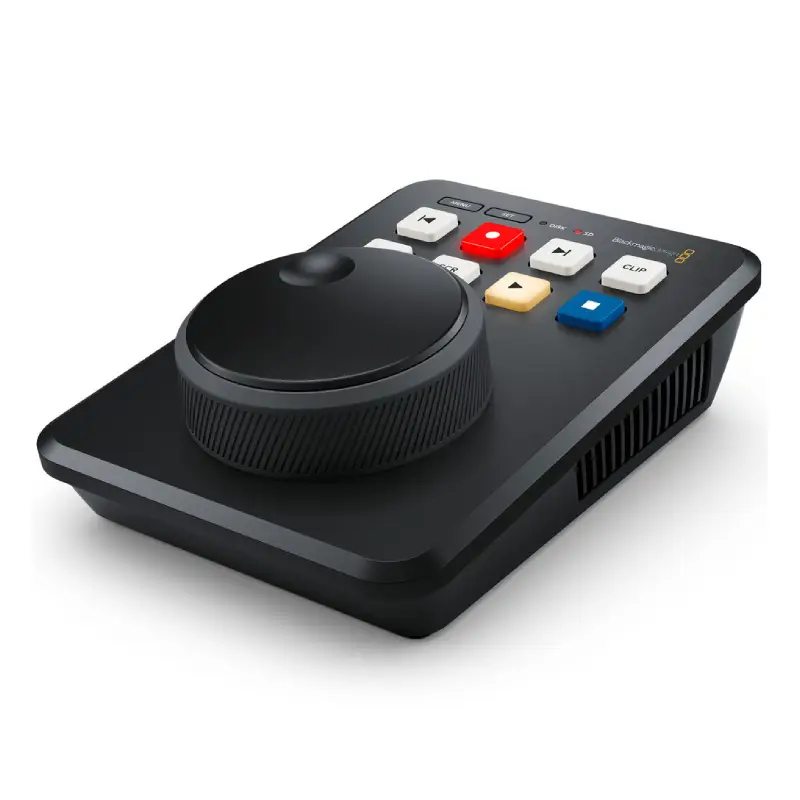

Blackmagic Design HyperDeck Shuttle HD

จุดเด่นผลิตภัณฑ์

• เครื่องเล่น/เครื่องบันทึกสื่อเดสก์ท็อปขนาดกะทัดรัด
• การควบคุมสำรับออกอากาศด้วยปุ่มค้นหา
• บันทึกลงในการ์ด SD หรือ USB-C Disks
• บันทึก HD และ Full HD สูงสุด 60p
• รูปแบบไฟล์ H.264, ProRes และ DNx
• พอร์ตอีเทอร์เน็ต 1Gb/s และพอร์ต USB Type-C
• พอร์ต HDMI เข้าและออกสำหรับการตรวจสอบ
• ความสามารถของเว็บแคม ฟังก์ชั่น Teleprompter
• Blackmagic OS

สเปค Blackmagic Design HyperDeck Shuttle HD

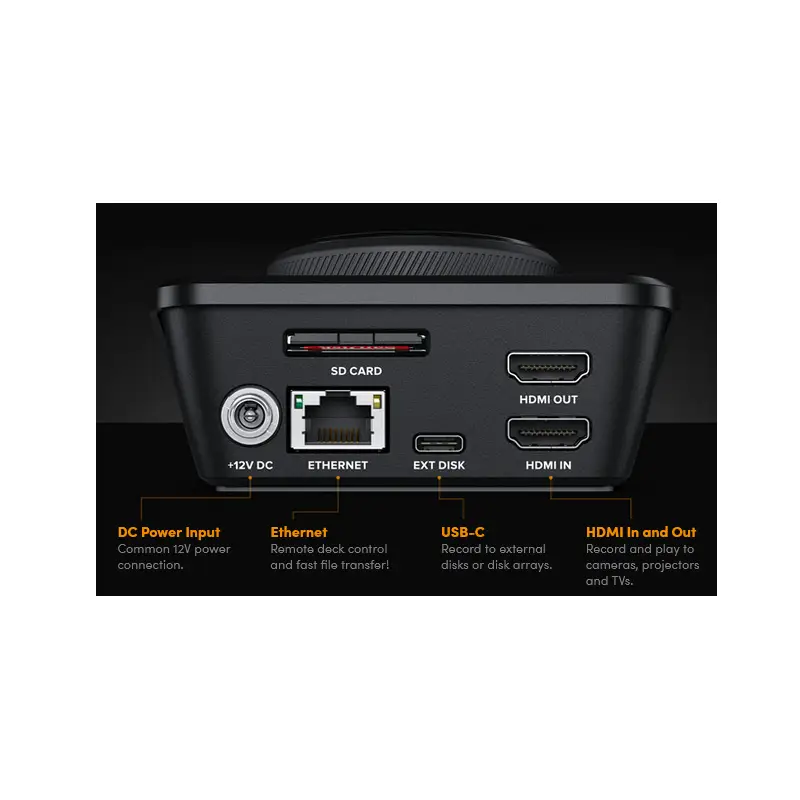

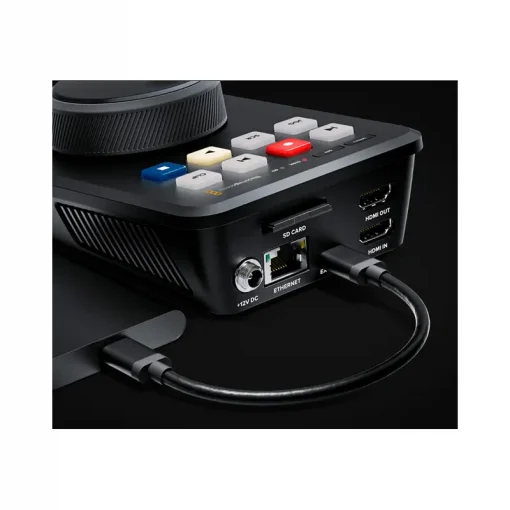

Connections
HDMI Video Inputs	1
HDMI Video Outputs	1
HDMI Audio Inputs	8 channels embedded audio.
HDMI Audio Outputs	8 channels embedded audio.
Recorder Configuration	Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol.
Ethernet	1Gb/s
Computer Interface	1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, software configuration and updates.
Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2K DCI Video Standards	2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Audio Sampling	Television standard 24‑bit, 48 kHz sample rate.
Video Sampling	4:2:2 YUV
Color Precision	10‑bit
Color Space	REC 601, REC 709.
Multi Rate Support	Auto detection of SD and HD.
Media

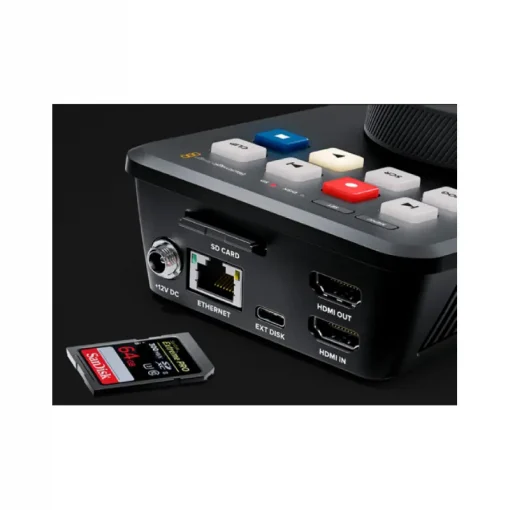

Media	1 x SD card slot 1 x USB-C 3.0 expansion port for external recording of SD, HD and 2K DCI.
Media Type	UHS-I and UHS-II SD cards.
Media Format	Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Supported Codecs	ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60.DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
Control

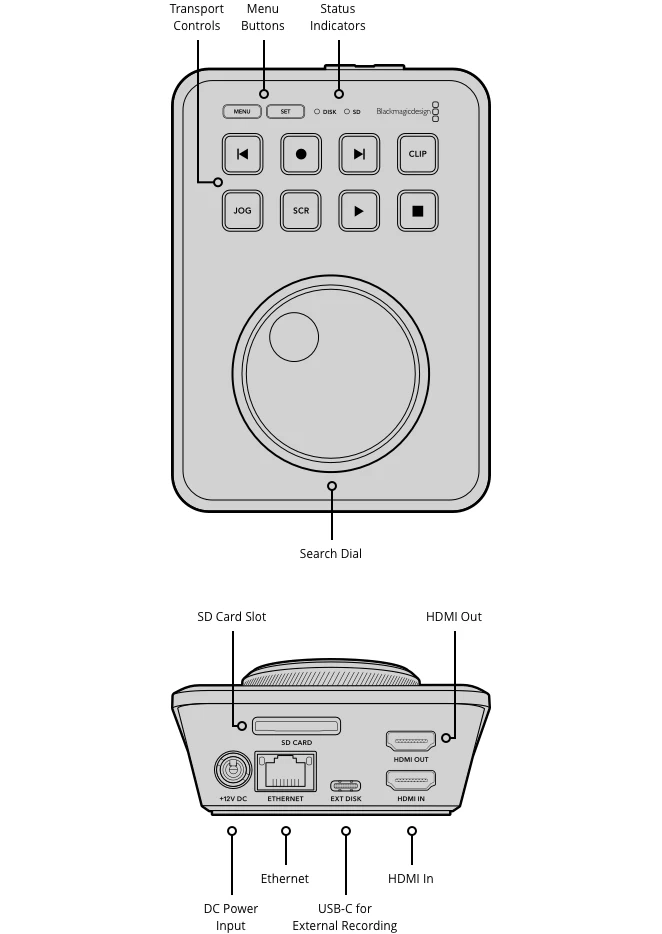

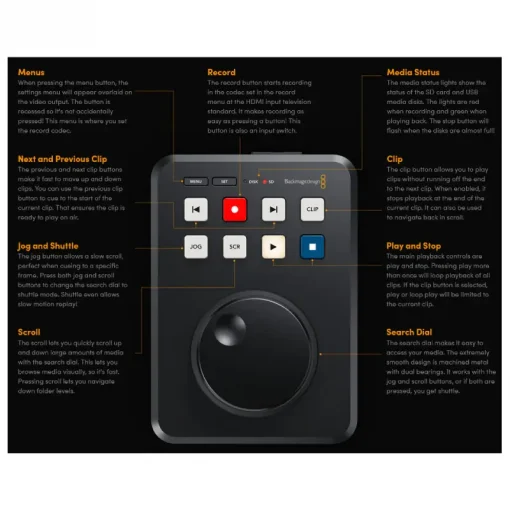

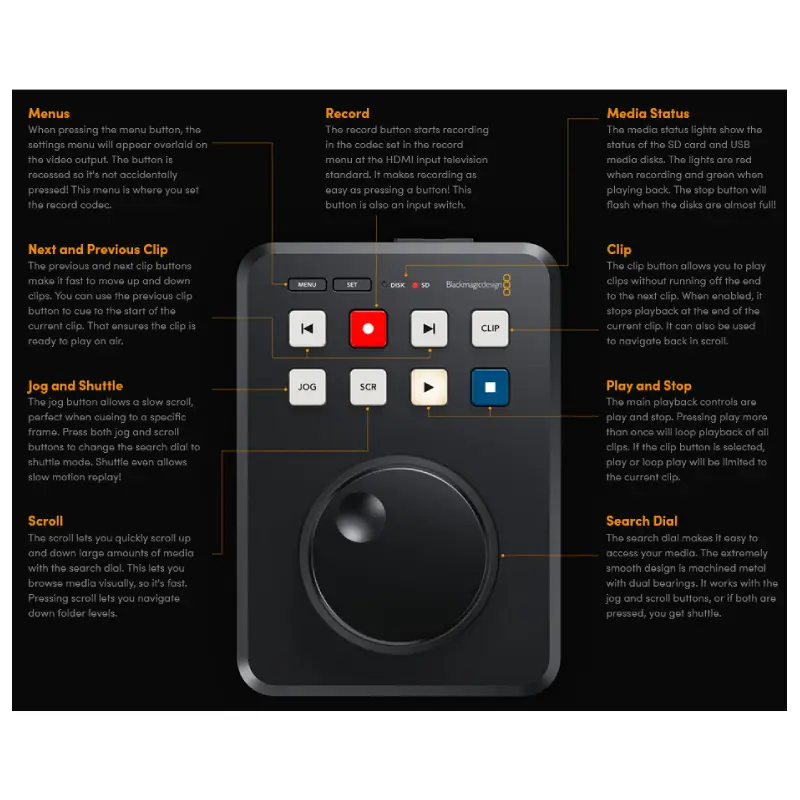

Built in Control Panel	10 buttons for transport and device control plus metal search dial.
External Control	HDMI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Teleprompter
Multi Rate Support	Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p defaulting to the highest rate.
Supported File Formats	Rich text (.rtf) with support for most rich text formatting. Plain text (.txt)
Software
Software Included	Blackmagic OS Blackmagic HyperDeck Setup Internal Software Upgrade Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems	Mac 11.1 Big Sur, Mac 12.0 Monterey or later.Windows 10 and 11.
Displays	LED indicator lights above the media slots.
Power Requirements
Power Supply	1 x Locking 5.5mm barrel 12V DC In for external power supply or battery use.
Power Usage	20 W max.

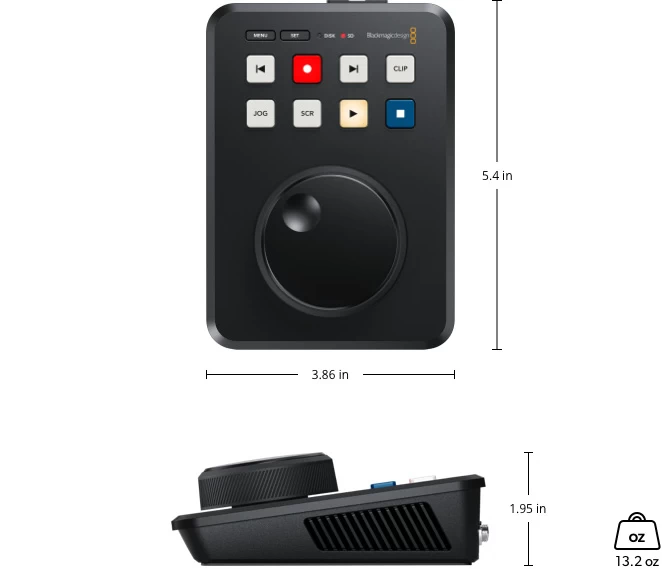

Physical Specifications
Environmental Specifications
Operating Temperature	0° to 40° C (32°to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non‑condensing
What’s Included	HyperDeck Shuttle HD12V universal power supply with international socket adapters
Warranty	12 Month Limited Manufacturer’s Warranty.
