Blackmagic Design ATEM SDI Switcher

Name: Blackmagic Design ATEM SDI Switcher
Brand: Blackmagic Design
SKU: 177066
Availability: BackOrder

14,600 ฿

Available on Backorder

Choose

Clear

Available on back-order

จุดเด่นผลิตภัณฑ์

Available M/E Layers	5 M/E
Effect Types	DVE, Transition, Chroma Key
Generators	1 x Pattern 2 x Color
Audio Mixing	2-Channel Mixing
Processing
Switching Type	IR Remote, Pushbutton, Software
Input
Number of Video Input Sources	4
Video Input Connectors	4 x BNC (3G-SDI)
Input Video Format	SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps
Audio Input Connectors	2 x 1/8″ / 3.5 mm TRS Stereo Analog Female
Input Audio Format	Analog
Embedded Audio Input	SDI: 2-Channel (per Input)
Output
Video Output Channels	3
Video Output Connectors	2 x BNC (3G-SDI) (Program)
Output Video Format	SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB Type-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Embedded Audio Output	SDI
Multiview Output	None
Connectivity
Other I/O	1 x RJ45 Control Input/Output
HDCP Support	None
Hardware
OS Compatibility	macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022: check with manufacturer for the most up-to-date compatibility
Power Connector	1 x Barrel (12 VDC) Input
Power Consumption	Device: 18 W
Environmental
Operating Temperature	5 to 40°C / 41 to 104°F
Storage Temperature	-10 to 60°C / 14 to 140°F
Operating Humidity	0 to 90% (Non-Condensing)
General

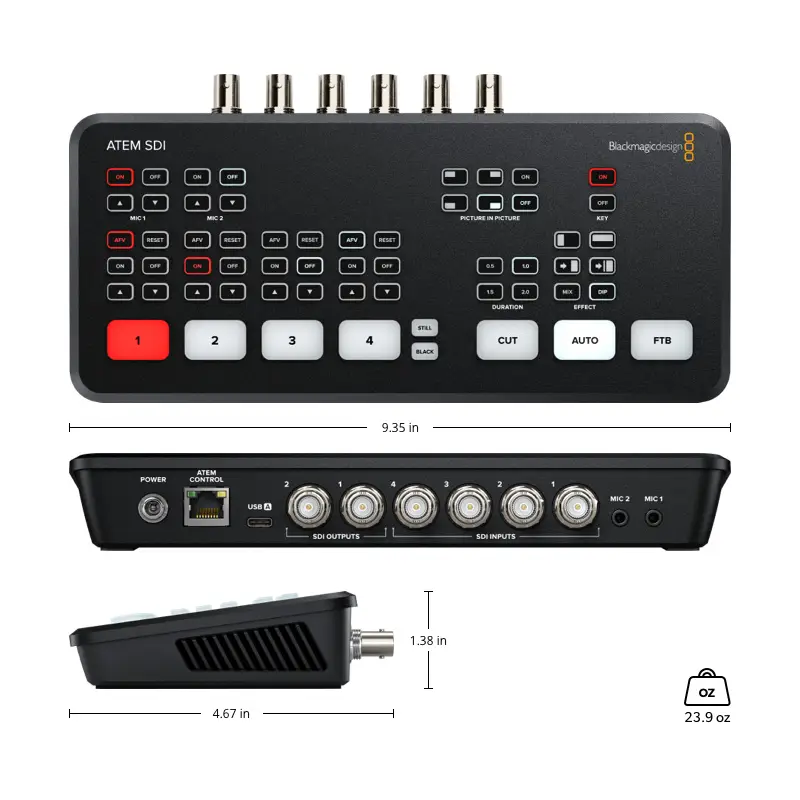

Dimensions	23.75 x 11.86 x 3.51 cm / 9.35 x 4.67 x 1.38″
Weight	678 g / 23.9 oz

Blackmagic Design ATEM SDI Switcher-Cover

ที่มา : www.blackmagicdesign.com, www.bhphotovideo.com

Specification

Choose	รับประกันศููนย์ 1 ปี
