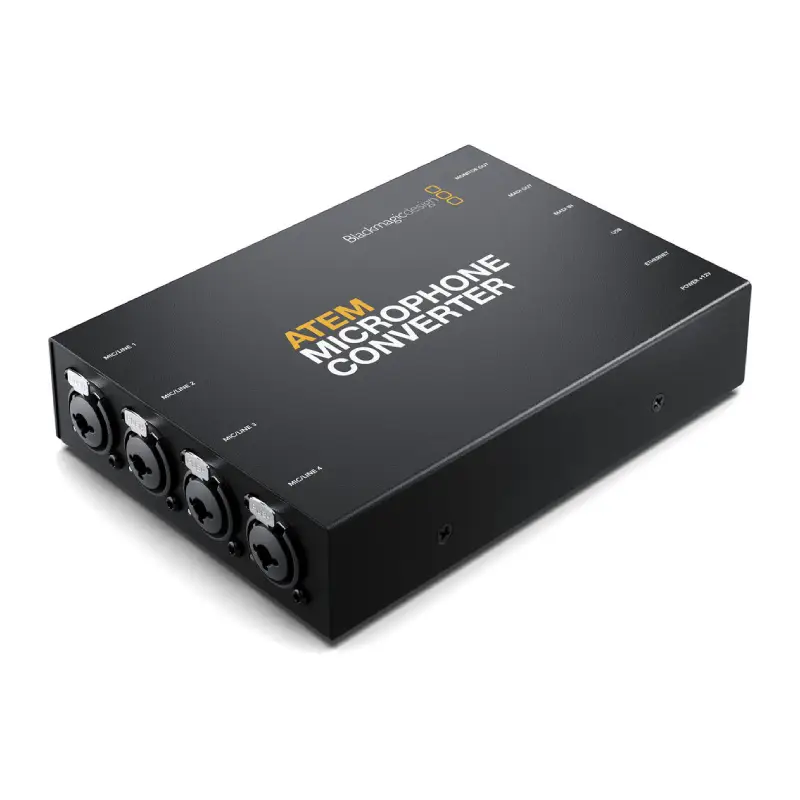

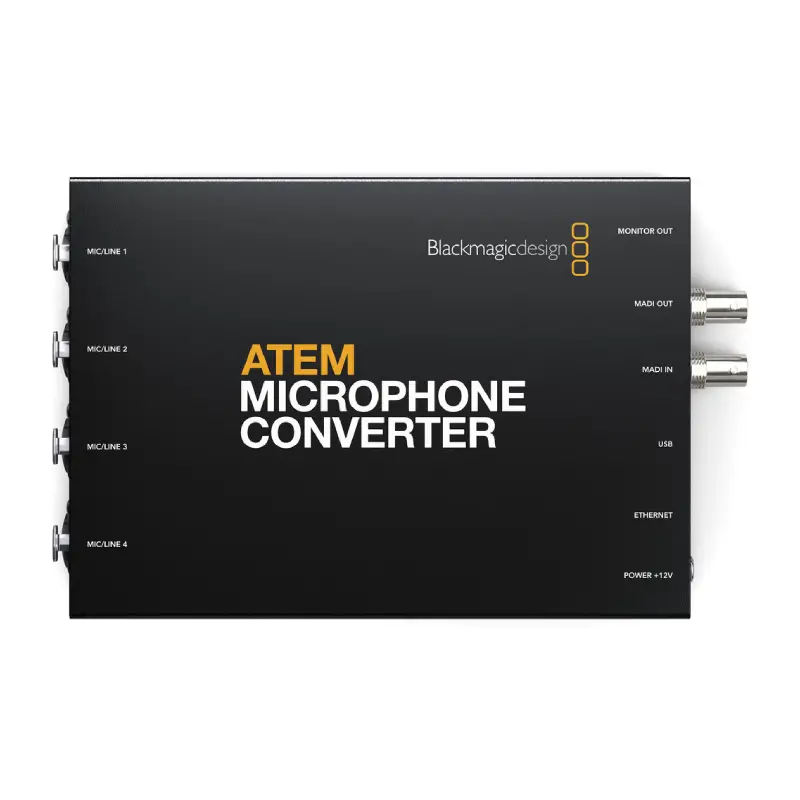

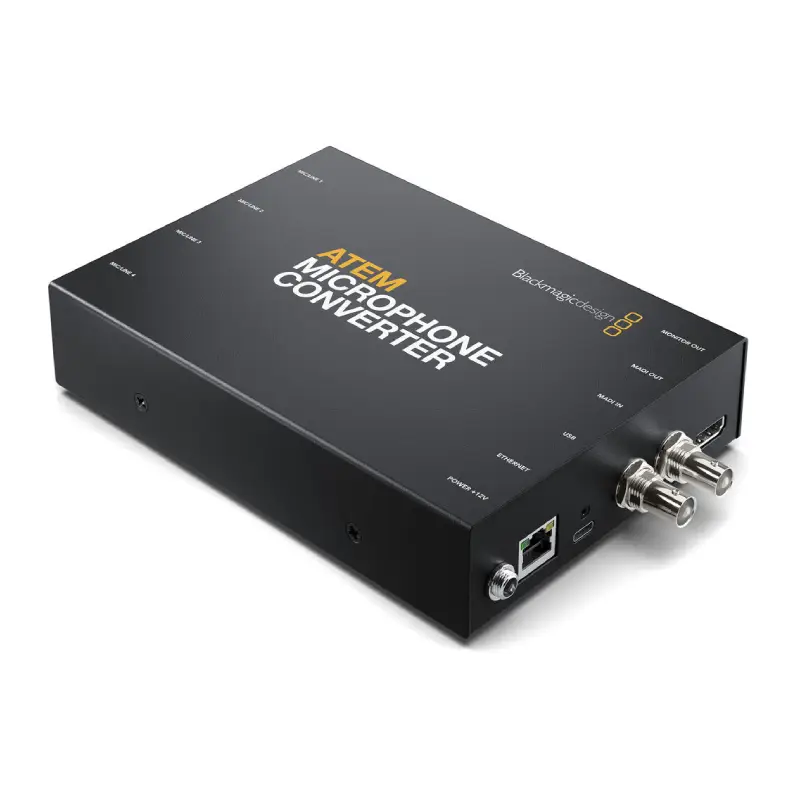

Blackmagic Design ATEM Microphone Converter

Name: Blackmagic Design ATEM Microphone Converter
Brand: Blackmagic Design
SKU: 187015
Availability: BackOrder

16,750 ฿

Available on Backorder

Choose

Clear

Available on back-order

จุดเด่นผลิตภัณฑ์

General
Compatibility	Blackmagic Design ATEM Television Studio
ADC	8 x per Input
Preamps	Digital Preamps: 32-Bit Float
Bit Depth	24-Bit
Sample Rate	48 kHz
Dynamic Range	131 dBA
Noise Floor	-129 dBV
THD	0.002%
MADI	AES10-2020 Compliance
HD Video Standards	1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60

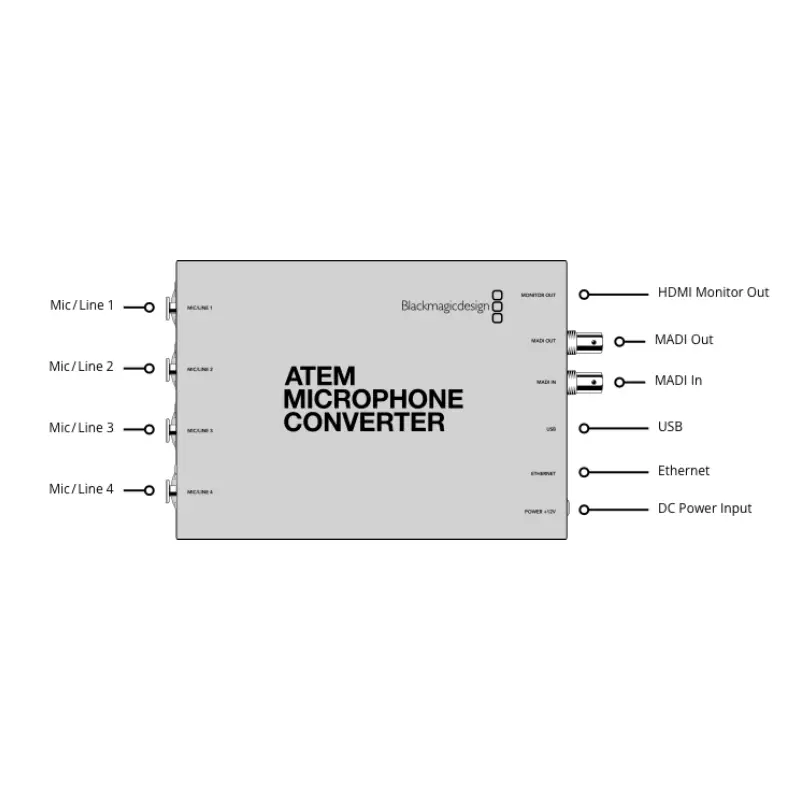

Inputs / Outputs
USB I/O	1 x USB-C Female Input/Output
Video I/O	1 x HDMI Monitor Output
Audio I/O	4 x Combo XLR-1/4″ Line/Mic Input (With 48 V Phantom)
MADI I/O	1 x BNC Input, Supports 64-Channel MADI Digital Audio 1 x BNC Output, Supports 64-Channel MADI Digital Audio
Power
Power Source	AC Adapter with Power Brick (Included)
DC Input Power	12 to 17.5 VDC
Power Consumption	12 W (Maximum)
Environmental
Operating Temperature	0 to 40°C / 32 to 104°F
Operating Humidity	0 to 90% (Non-Condensing)
Storage Temperature	-20 to 60°C / -4 to 140°F
Physical

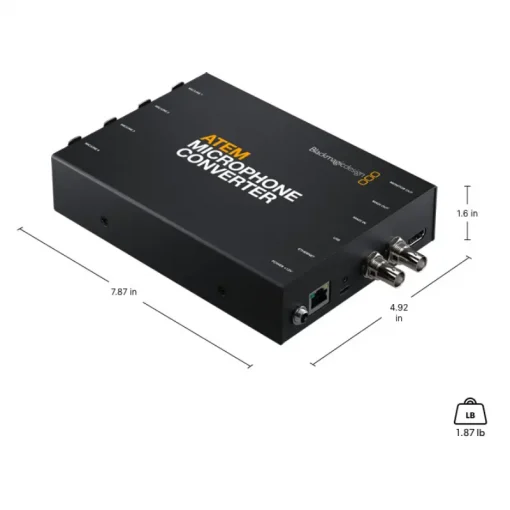

Dimensions	19.99 x 12.5 x 4.1 cm / 7.87 x 4.92 x 1.6″
Weight	0.85 kg / 1.87 lb

Blackmagic Design ATEM Microphone Converter-Detail1

Specification
