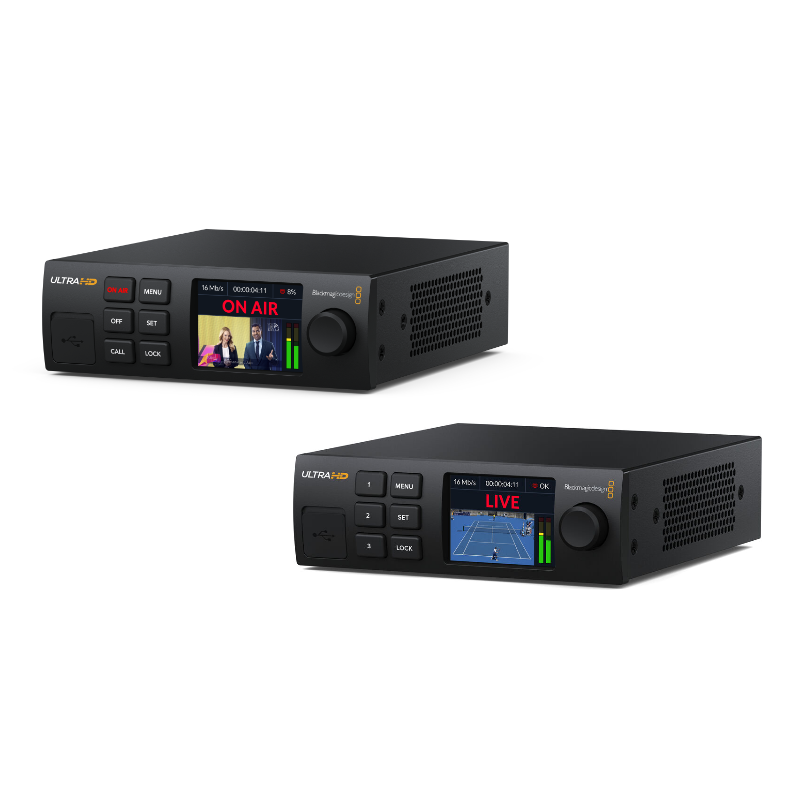

Blackmagic Streaming Encoder 4K and Decoder 4K
28,000 ฿
Out of Stock
***Coming Soon***
Description
รายละเอียดสินค้า

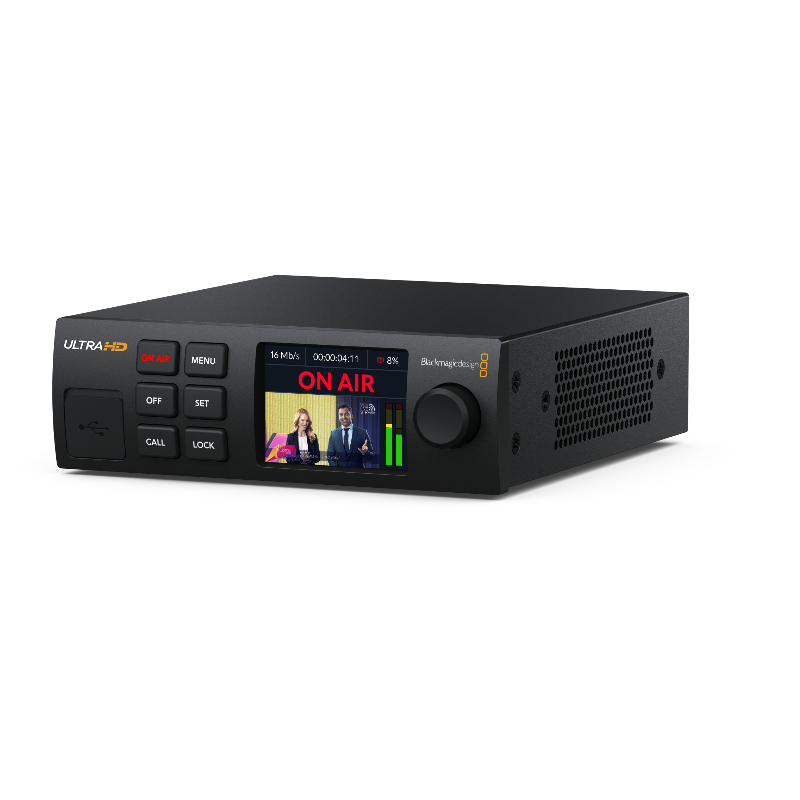

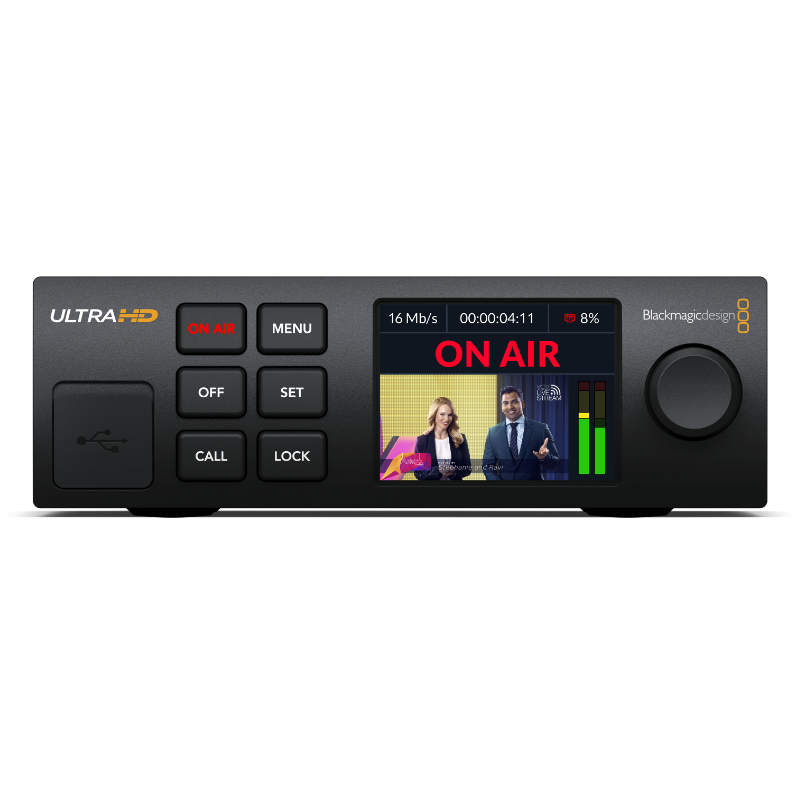

Blackmagic Streaming Encoder 4K คือโปรเซสเซอร์สตรีมมิ่งแบบครบวงจรอันทรงพลังพร้อมการสตรีม H.264 และ H.265 ในรูปแบบ HD หรือ Ultra HD ผ่านโปรโตคอล SRT หรือ RTMP สตรีมโดยตรงไปยังบริการต่างๆ เช่น YouTube, Facebook, X และอื่นๆ นอกจากนี้ คุณยังสามารถสตรีมไปยังอินเทอร์เน็ตโดยใช้อีเทอร์เน็ตหรือเชื่อมต่อโทรศัพท์ 5G หรือ 4G เพื่อใช้ข้อมูลมือถือได้ มาพร้อมเว็บแคม USB อินพุต 12G-SDI ที่แปลงมาตรฐาน และเอาต์พุตการตรวจสอบการสตรีม

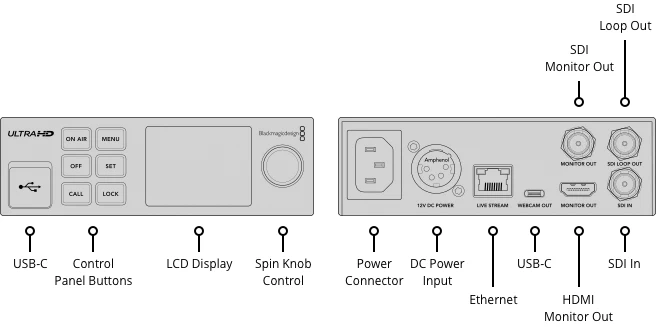

สเปค Blackmagic Streaming Encoder 4K

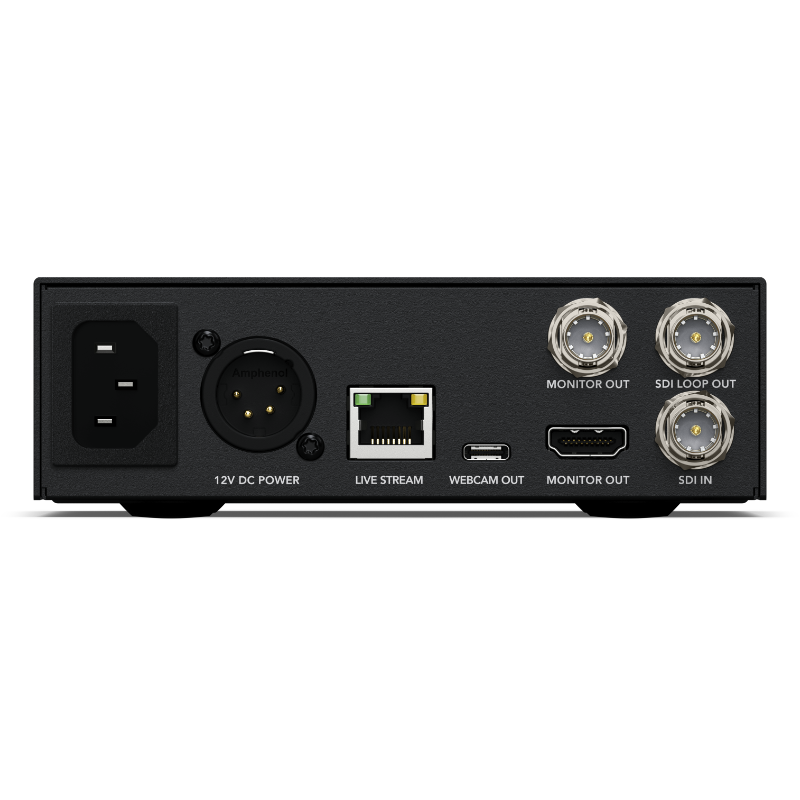

| Connections | |
SDI Video Inputs |
1 |
SDI Loop Outputs |
1 |
SDI Monitor Outputs |
1 |
SDI Rates |
1.5G, 3G, 6G, 12G |
HDMI Monitor Outputs |
1 |
SDI Audio Inputs |
16 channels embedded audio. |
SDI Audio Outputs |
16 channels embedded audio on Loop Out. |
HDMI Audio Outputs |
2 channels embedded audio on Monitor Out. |
Webcam Output |
1 x USB-C up to 2160p60 |
Ethernet |
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates. |
 |
|
| Standards | |
HD Video Input Standards |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
Ultra HD Video Input Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
SDI Compliance |
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B |
Video Input Color Space |
Rec. 709, Rec. 2020 |
3G SDI |
Auto detects SMPTE level A or B on SDI input. |
SDI and HDMI Monitor Out Video Standards |
1080p50, 1080p59.94, 1080p60 |
Video Streaming Standards |
720p25, 720p30, 720p50, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Streaming | |
Direct Streaming |
Blackmagic Streaming Encoder 4K supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP) in H.264, and Secure Reliable Transport (SRT) in H.264 and H.265. |
Closed Captions |
Blackmagic Streaming Encoder 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. |
Timecode |
Support source timecode over RTMP and SRT streams. |
| Control | |
Control Panel |
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. |
Device Control |
Front panel, USB‑C or Ethernet. |
External Control |
Supports remote camera control, color corrector, tally and talkback.
REST API over Ethernet for external control via HTTP when used with REST client applications. |
| Displays | Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings. |
| Software | |

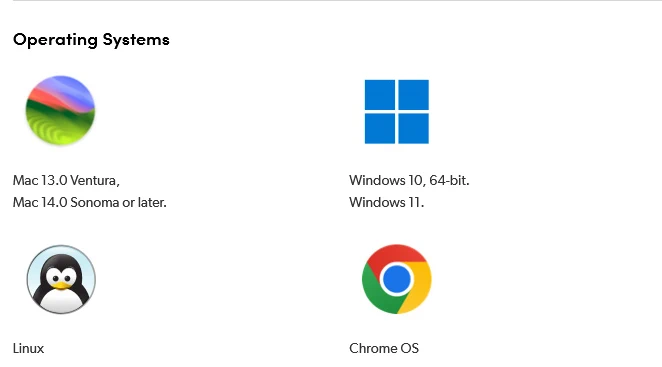

Compatible Services and Software |
|
 |
|
| Power Requirements | |
Power Supply |
1 x Internal 100 – 240V AC. |
12V DC Input |
1 x 4-pin XLR for +12V DC input for external power supply or battery use. |
Power Usage |
25 W |
| Physical Installation | |

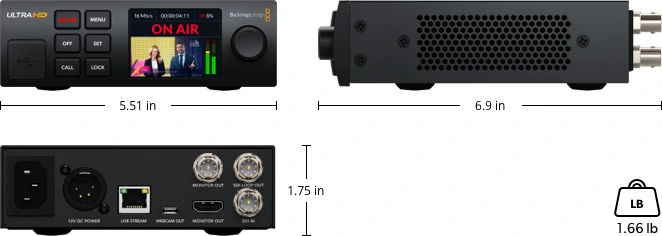

Physical Installation |
One third rack unit width, 1 rack unit height. |
| Physical Specifications |  |
| Environmental Specifications | |
Operating Temperature |
0° C to 40° C (32° – 104°F) |
Storage Temperature |
-20° to 45° C (-4° to 113° F) |
Relative Humidity |
0% to 90% non-condensing |
| What’s Included | Blackmagic Streaming Encoder 4KWelcome wallet with QR code for software download |
| Warranty | 3 Year Limited Manufacturer’s Warranty. |

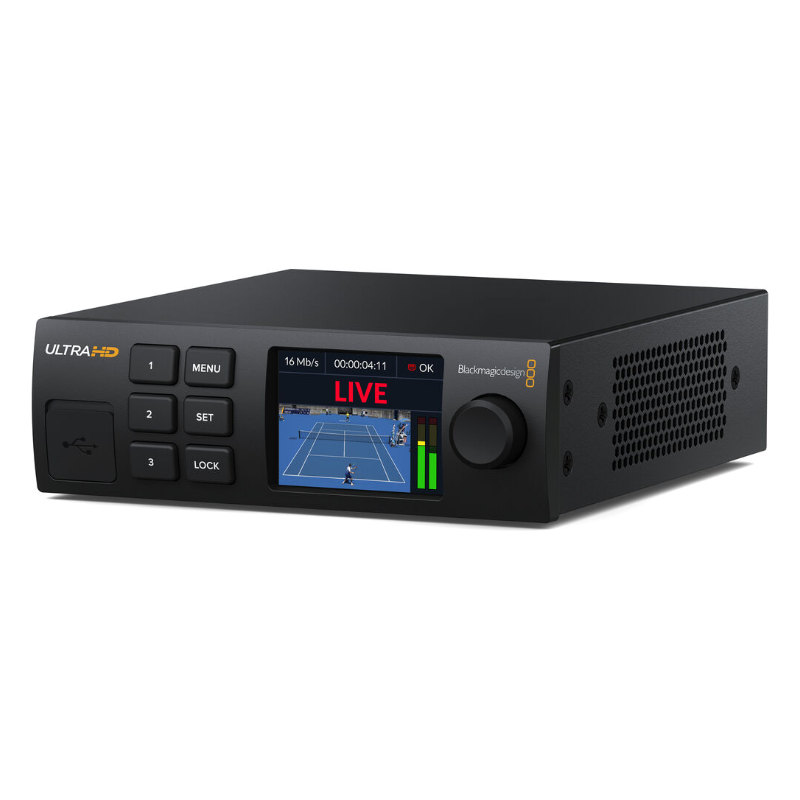

Blackmagic Streaming Decoder 4K คือเครื่องถอดรหัสสตรีมมิ่งระดับมืออาชีพที่ให้คุณรับสตรีม H.264 หรือ H.265 จาก Blackmagic Streaming Encoder, เครื่องสลับ ATEM หรือกล้อง Blackmagic และแปลงกลับเป็นวิดีโอ SDI และ HDMI รวมถึงระบบสตรีมมิ่ง Blackmagic Cloud และอินพุตอ้างอิง 12G-SDI ที่ให้คุณเชื่อมต่อ SDI tally, การควบคุมกล้อง และ talkback กลับไปยังตัวเข้ารหัส

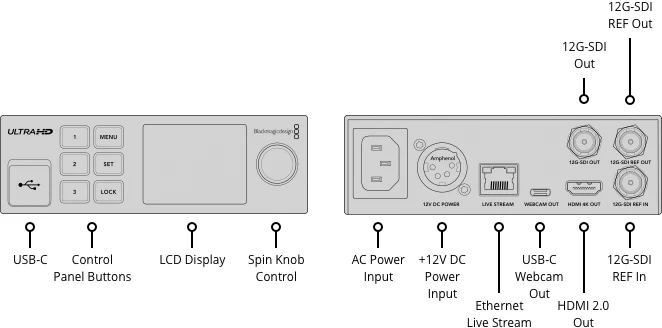

สเปค Blackmagic Streaming Decoder 4K
| Connections | |
SDI Reference Inputs |
1 |
SDI Video Outputs |
1 |
SDI Reference Outputs |
1 |
SDI Rates |
1.5G, 3G, 6G, 12G |
HDMI 2.0 Video Outputs |
1 |
Live Stream Audio Inputs / Outputs |
2 channels embedded Live Stream audio on output.
2 channels embedded Program audio on input. 2 channels embedded talkback audio on input. |
SDI Audio Inputs |
16 channels embedded audio on 12G-SDI Ref In. |
SDI Audio Outputs |
16 channels embedded audio on 12G-SDI Ref Out.
2 channels embedded audio on 12G-SDI Out. |
HDMI Audio Outputs |
8 channels embedded audio on Monitor Out. |
Webcam Outputs |
1 x USB-C up to 2160p60 |
Ethernet |
Ethernet supports 10/100/1000 BASE-T for live streaming, configuration and software updates. |
 |
|
| Standards | |
HD Video Input Standards |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
Ultra HD Video Input Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
SDI Compliance |
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B |
Video Input Color Space |
Rec. 709, Rec. 2020 |
3G SDI |
Auto detects SMPTE level A or B on SDI input. |
HDMI HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
HDMI Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p62 |
HDMI 4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
HDMI Color Precision |
4:2:2 |
HDMI Color Space |
YUV |
Video Streaming Standards |
720p25, 720p30, 720p50, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| Streaming | |
Direct Streaming |
Receives (RTMP) H.264 or (SRT) H.265 streams from the Blackmagic Streaming Encoder or compatible Blackmagic cameras. |
Closed Captions |
Web Presenter 4K supports embedding CEA‑608 and CEA‑708 closed captions in your live RTMP stream. |
Timecode |
Support source timecode over RTMP and SRT streams on 12G-SDI Out. |
| Control | |

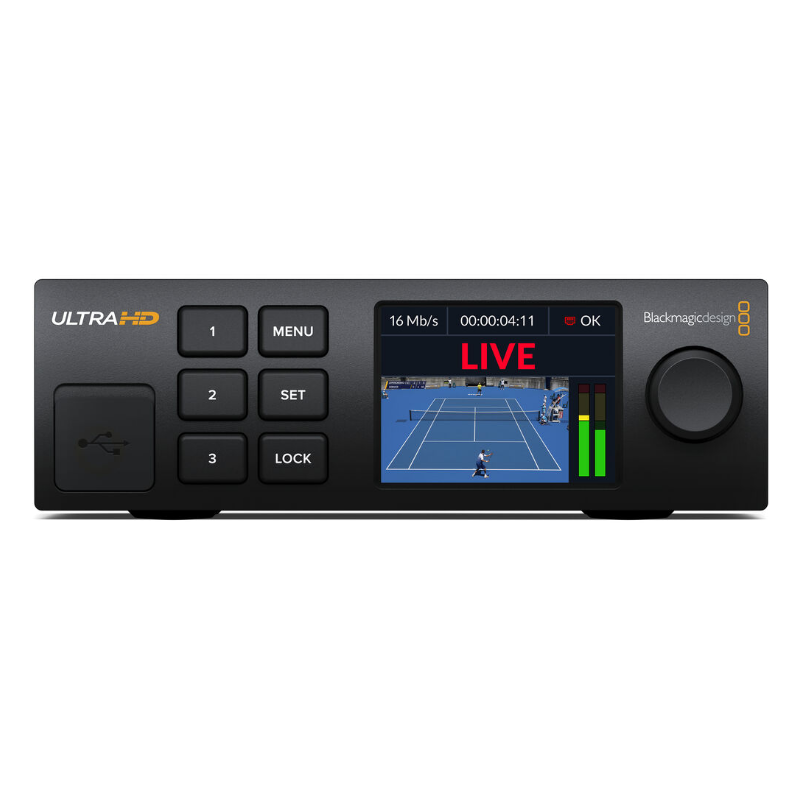

Control Panel |
Built in control panel including 6 buttons, spin knob control and 2.2 inch color display. |
Device Control |
Front panel, USB‑C or Ethernet. |
External Control |
Supports remote camera control, color corrector, tally and talkback.
REST API over Ethernet for external control via HTTP when used with REST client applications. |
| Displays | Built in 2.2 inch LCD for monitoring video, audio and status plus menu settings. |
| Software | |
Compatible Services and Software |
Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, Wowza Streaming Engine. |
 |
|
| Power Requirements | |
Power Supply |
1 x Internal 100 – 240V AC. |
12V DC Input |
1 x 4-pin XLR for +12V DC input for external power supply or battery use. |
Power Usage |
TBA |
| Physical Installation | |

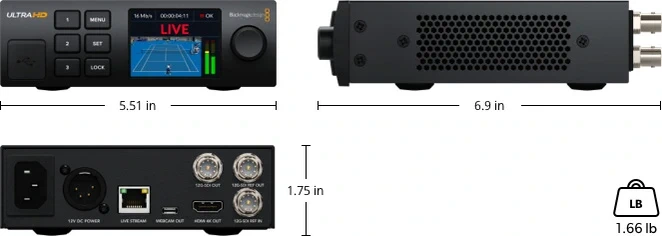

Physical Installation |
One third rack unit width, 1 rack unit height. |
| Physical Specifications |  |
| Environmental Specifications | |
Operating Temperature |
0° C to 40° C (32° – 104°F) |
Storage Temperature |
-20° to 45° C (-4° to 113° F) |
Relative Humidity |
0% to 90% non-condensing |
| What’s Included | Blackmagic Streaming Decoder 4KWelcome wallet with QR code for software download |
| Warranty | 1 Year Limited Manufacturer’s Warranty. |
