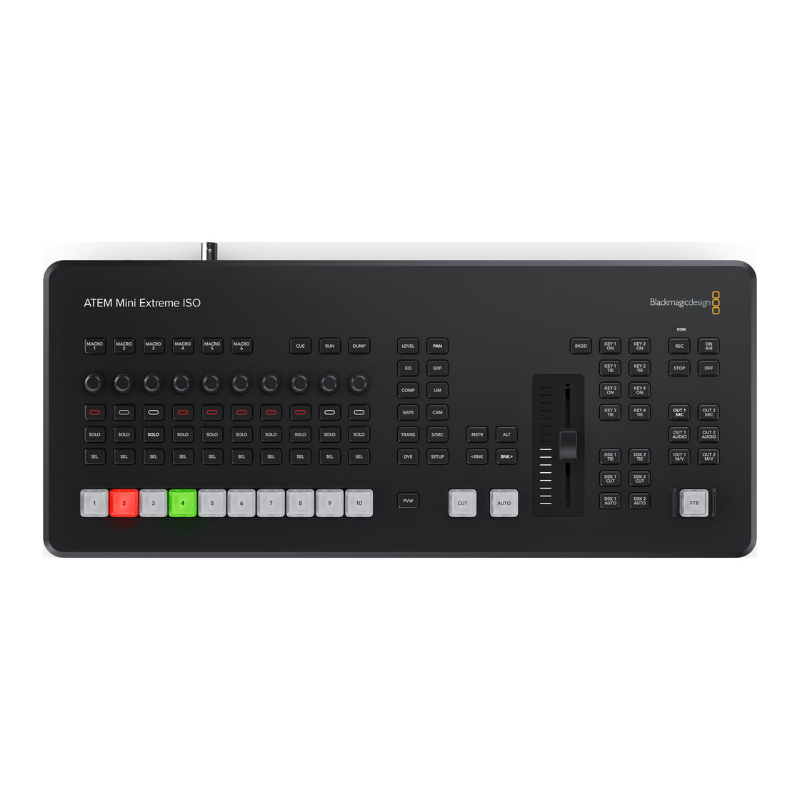

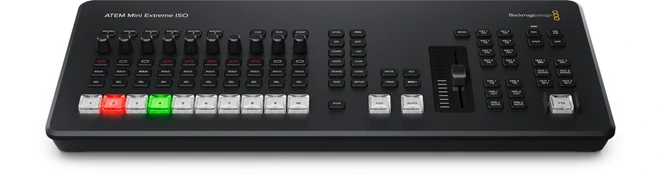

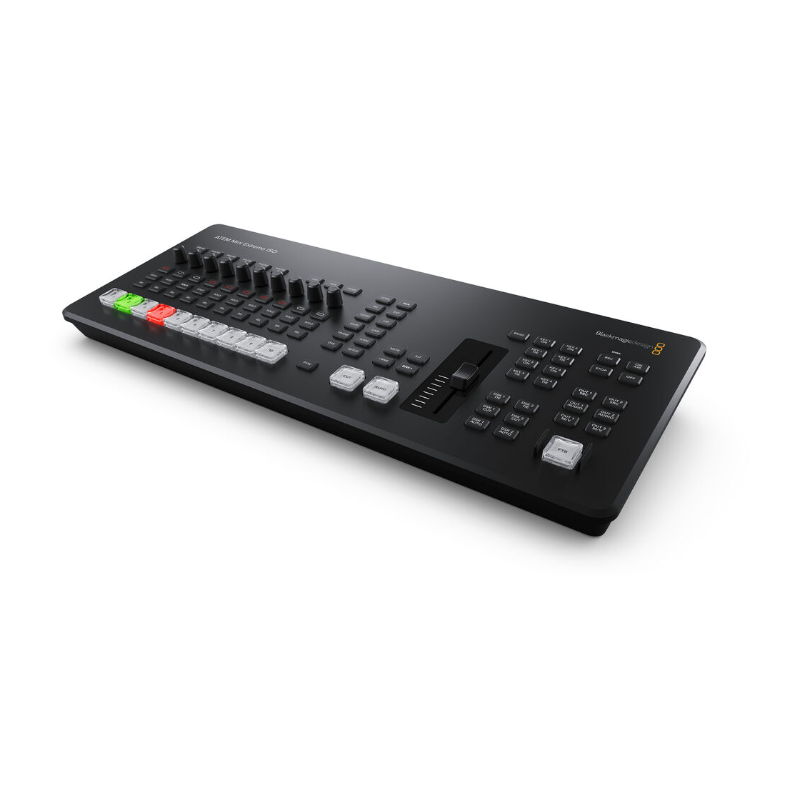

Blackmagic ATEM Mini Extreme ISO G2 Switcher

จุดเด่นผลิตภัณฑ์

• เครื่องสลับสัญญาณสด HDMI 8 ช่อง
• ดีไซน์ใหม่ทั้งหมด รองรับสูงสุด 1080p60
• พอร์ตอีเทอร์เน็ต 1G และ 10G สล็อต CFexpress
• เอาต์พุต HDMI ที่กำหนดได้อิสระ 3 ช่อง
• มิกเซอร์เสียง 2 ช่อง อินพุต 26 ช่อง
• ตัวแปลงอัตราเฟรมอินพุตและรูปแบบ
• อินพุต MADI อินพุต XLR ไลน์/ไมค์แอนะล็อก
• เอาต์พุต HD Multiview ที่มีมุมมองสูงสุด 16 มุมมอง
• พอร์ต USB-C และ Thunderbolt คู่
• คีย์เออร์อัปสตรีม 4 ช่อง ดาวน์สตรีม 2 ช่อง

รายละเอียดสินค้า

• ATEM Mini Extreme ISO G2 เป็นเครื่องสลับสัญญาณสดที่ทรงพลังแต่กะทัดรัดสำหรับการสร้างสตูดิโอออกอากาศระดับไฮเอนด์ รับแผงควบคุมแบบมืออาชีพที่ขยายได้พร้อมระบบสตรีมมิ่งในตัว อินพุต HDMI ที่แปลงมาตรฐาน 8 ตัว เอาต์พุต HDMI อิสระ 3 ตัว เอ็นจิ้นสตรีมมิ่งในตัว มัลติวิว CFexpress และ Thunderbolt สำหรับการบันทึก/เล่น นอกจากนี้ยังมีอีเทอร์เน็ต 10G สำหรับการเข้าถึงที่เก็บข้อมูลบนเครือข่ายที่รวดเร็ว อินพุตเสียง XLR เว็บแคม USB DVE โครมาคีย์ เครื่องเล่นสื่อ และการบันทึก ISO ของอินพุตวิดีโอทั้ง 8 ตัว

สเปค Blackmagic ATEM Mini Extreme ISO G2

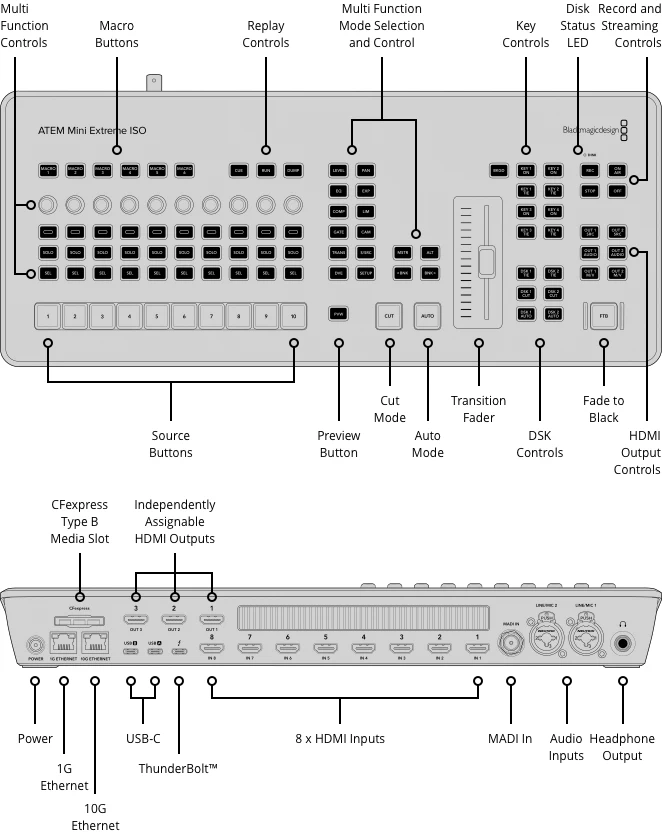

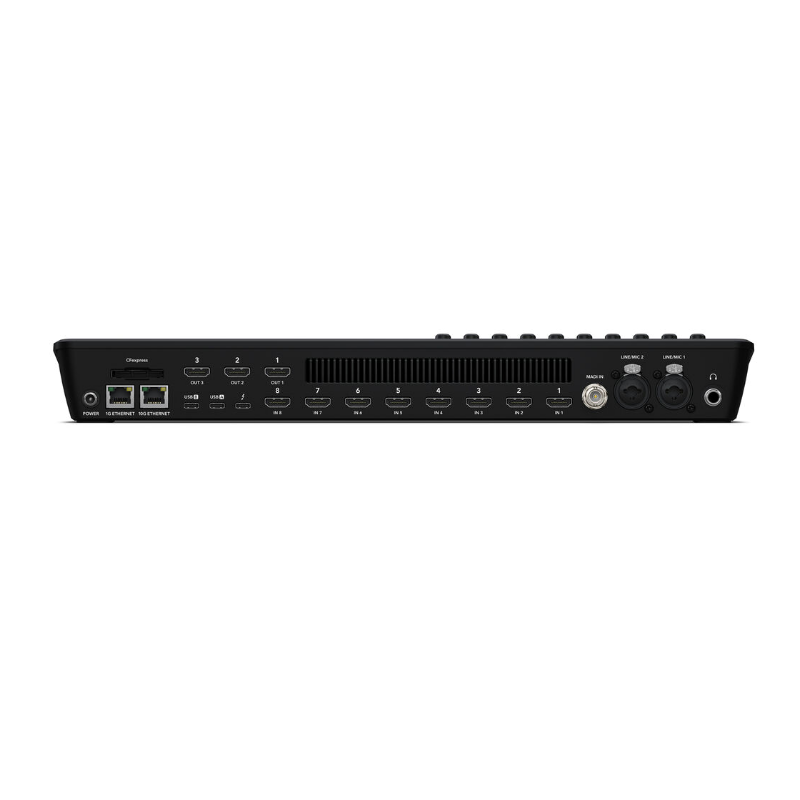

Connections
Total Video Inputs	9
Total Outputs	4
Total Aux Outputs	4
SDI Rates	1.5G, 3G
HDMI Video Inputs	8 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
HDMI Video Outputs	3
HDMI Program Outputs	3
Total Audio Inputs	2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio.
Total Audio Outputs	1 x 6.35mm headphone jack
Timecode Connection	None
Reference Input	None
Video Input Re-Sync	On all 8 HDMI inputs and remote sources
Frame Rate and Format Converters	On all 8 HDMI inputs and remote sources
Webcam Output	2 x USB-C supporting 720p or 1080p at PGM frame rate.
Total Multi Views	1 x HDMI 1 x Webcam
Control Panel Connection	Ethernet. Direct connection between panel and chassis, or via network.
Internal Timecode Generator	Yes
Tally Output	On Blackmagic HDMI and remote cameras.
Ethernet	1 x 1G Ethernet for simple streaming, control panels and internet connection, 1 x 10G Ethernet connection for recording.
Computer Interface	2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
Standards
HD Video Input Standards	720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
HD Video Output Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Streaming Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Video Sampling	4:2:2 YUV
Color Precision	10-bit
Color Space	Rec 709
HDMI Input Resolutions from Computers	1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz
Colorspace Conversion	Hardware based real time.
SDI Auto Switching	–
Product Specifics
Number of Mix Effects Rows	1
Direct Cross Points	10
Crosspoint Button Type	NKK Buttons
Preview Transition	1
Source Select Bus	Set using Multi Function Controls and Fairlight Audio Status Output.
Dedicated Macro Buttons	6
Transition Type Buttons	Set using Multi Function Controls and Fairlight Audio Status Output.
Transition Rate	Set using Multi Function Controls and Fairlight Audio Status Output.
Key Buttons	8
AUX Buttons	6
Fader Bar	1
Record Buttons	2
Stream Buttons	2
DSK Transition Selectors	6
Fade to Black Buttons	1 NKK button
Upstream Keyers	4
Downstream Keyers	2
Advanced Chroma Keyers	Up to 4
SuperSource	1
DVEs	2
Linear/Luma Keyers	Up to 4
Transition Keyer (Stinger/DVE)	DVE only
Color Generators	2
Control Panel	Set using Multi Function Controls and Fairlight Audio Status Output.
Routable Windows	16
Tally	Red for program and green for preview indication.
Audio
Audio Mixer	26 input x 2 channel mixer. (8 HDMI+16MADI+XLR+Thunderbolt) Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Analog Input	Balanced stereo XLR combo connectors
Analog Input Delay	Up to 8 frames
Mic Plug In Power	+48V phantom power on XLR combo inputs
Streaming Sources
Total Streaming Sources	Up to 8
Streaming Source Format	RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting.
Streaming Source Setup	Mapped to inputs in ATEM Software Control Settings.
Streaming
Direct Streaming	Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C.
Recording
Direct Recording Video and Audio	CFExpress slot for recording Network Recording USB-C Recording
Video Recording	8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
Audio Recording	26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels.
Switching	Program switching recorded as a DaVinci Resolve project .drp file.
Media Format	Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Multi View Monitoring
Multi View Monitoring	Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard	HD
Media Player
Media Players	2
Channels	Fill and key for each Media Player.
Media Pool Still Image Capacity	20 with fill and key.
Media Pool Still Image Format	200 frames in 1080 HD.
Media Pool Still Image Format	PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format	TGA Sequence.
Media Pool Audio File Format	WAV, MP3 and AIFF.
Control
Control Panel	Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
Control Panel Connection	Ethernet supports 10/100/1000/10G BaseT. Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
Control Panel Compatibility	Includes ATEM Software Control Panel. Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. Can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
Control Panel Included	ATEM Software Control Panel included free for Mac 10.14 Sonoma, Mac 10.15 Sequoia or later later and Windows 11, Windows 10 64 bit only.
Processing
Audio Mixer	58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
Camera Control	When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Software
Control Panel Included	ATEM Software Control Panel included free for macOS 14.0 Sonoma, macOS 15.0 Sequoia or later. and Windows 10 or 11.
Software Updates	Using USB or Ethernet connection directly connected to macOS or Windows computers. Includes ATEM Setup Utility.
Configuration	Set via ATEM Software Control, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Power Requirements
Power Supply	1 x External 12V power supply
Power Usage	–

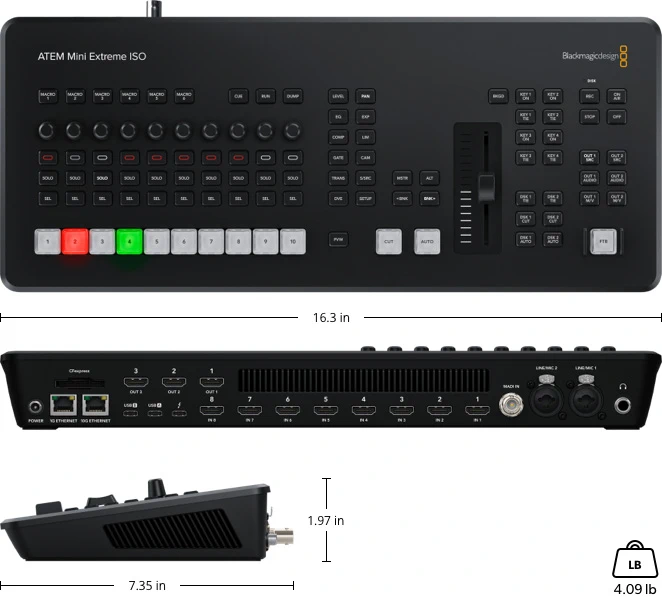

Physical Specifications
Environmental Specifications
Operating Temperature	5° C to 40° C (41° – 104° F)
Storage Temperature	-10° to 60° C (14° to 140° F)
Relative Humidity	0% to 90% non-condensing
What’s Included	ATEM Mini Extreme ISO G2 External 12V DC power supply
Warranty	1 Year Limited Manufacturer’s Warranty.
