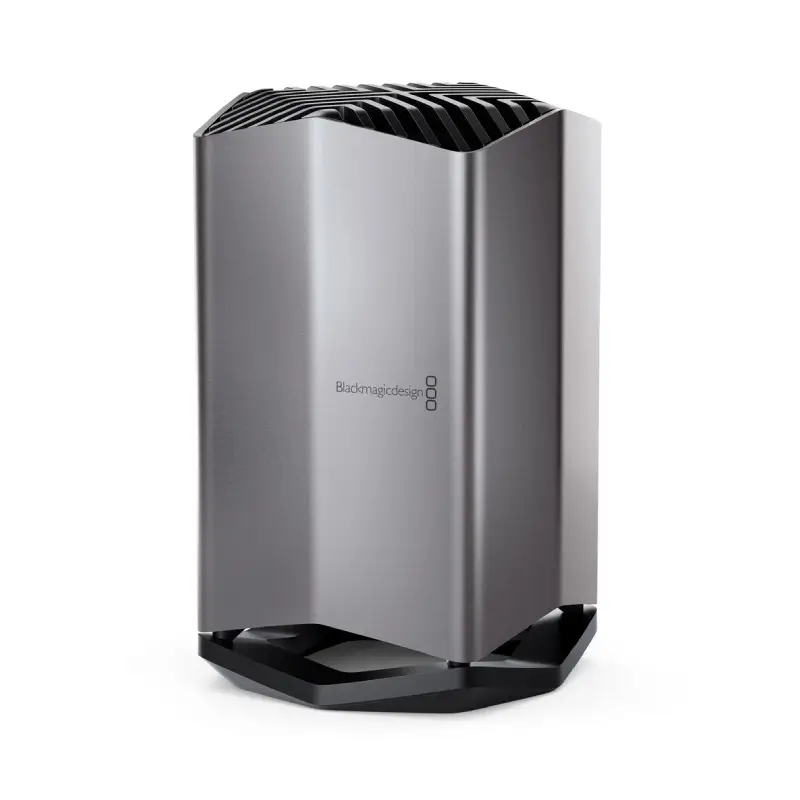

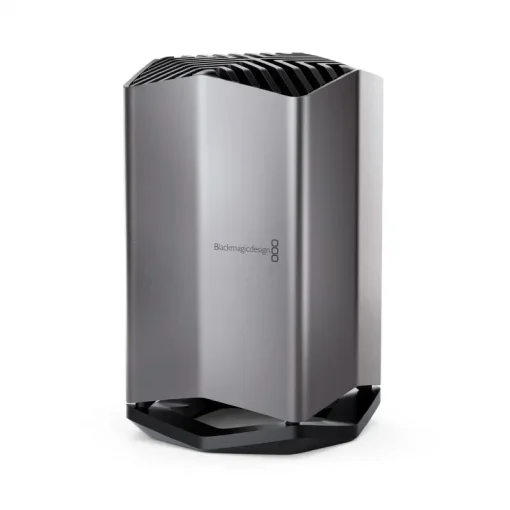

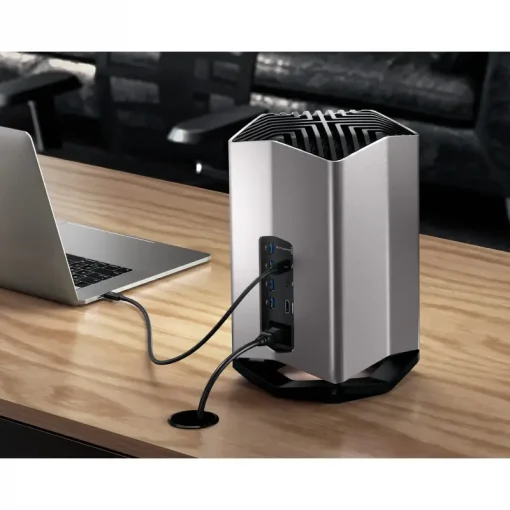

Blackmagic Design Cloud Store

จุดเด่นผลิตภัณฑ์

• 20TB / 80TB M.2 Flash Storage
• Configured as RAID 5
• 4 x 10Gb/s Ethernet Ports and Switch
• 2 x USB Type-C Ports for Ingest & Backup
• HDMI Monitoring Output for Status
• Dropbox Sync Support
• Software Utility for Windows and Mac

สเปค Blackmagic Design Cloud Store

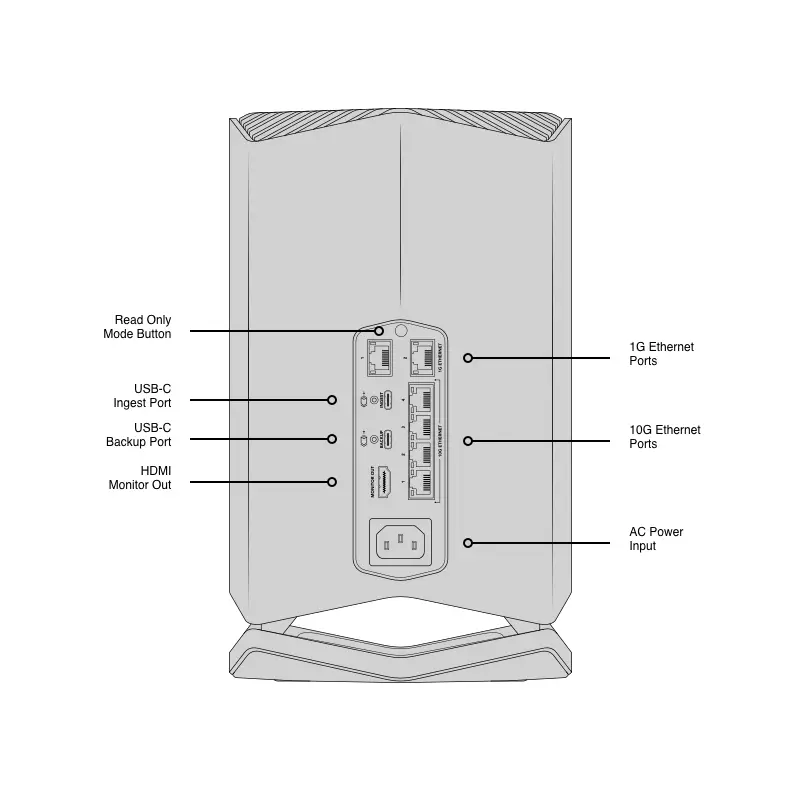

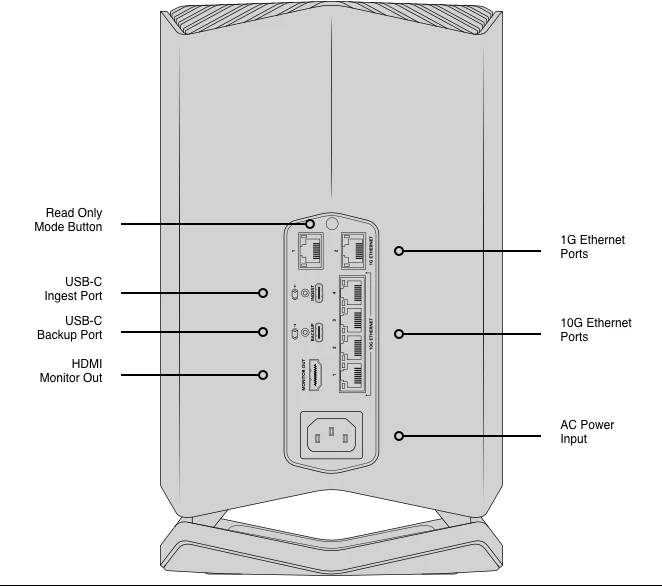

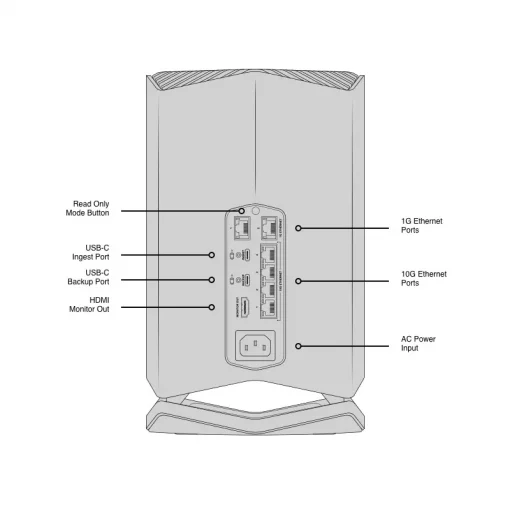

Connections
10G Ethernet Ports	4 x 100/1000/10G BASE-T
1G Ethernet Ports	2 x 100/1000 BASE-T
Ingest USB-C Port	1 x USB 3.0 (up to 5Gb/s). Automatically transfers files from USB drive to Cloud Store.
Backup USB-C Port	1 x USB 3.0 (up to 5Gb/s). Automatically backs up files from Cloud Store to USB drive.
HDMI Monitor Outputs	1
Computer Interface	Ethernet for shared file access, configuration and software updates. USB-C for configuration and software updates.
File Sharing Protocol
Protocol	SMB
Computer Connections	50 max.
Cloud Synchronization
Compatible Services	Dropbox
Storage
Storage Type	M.2 NVMe SSD
Total Capacity	20TB, 80TB or 320TB
Redundancy	RAID 5 distributed parity
External Storage	USB Disks
External Storage Format	ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Displays
HDMI Monitor Out Standards	1080p50, 1080p59.94, 1080p60.
Monitor Out Displays	Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graphs.
Status Indicator	Underside white glow indicating normal operation or red glow indicating disk or power supply fault.
Device Control
External Control	USB-C or Ethernet for configuration and software updates.
Software
Software Included	Blackmagic Cloud Setup Utility Blackmagic Proxy Generator Lite Internal software upgrade via Blackmagic Cloud Setup using USB-C port.
Operating Systems	Mac 11.1 Big Sur, Mac 12.0 Monterey or later.Windows 10 and 11.
Power Requirements
Power Supply	2 x internal 100 – 240V AC 50/60Hz.
Power Inputs	1 x IEC C14 mains input.
Power Usage	400W max.

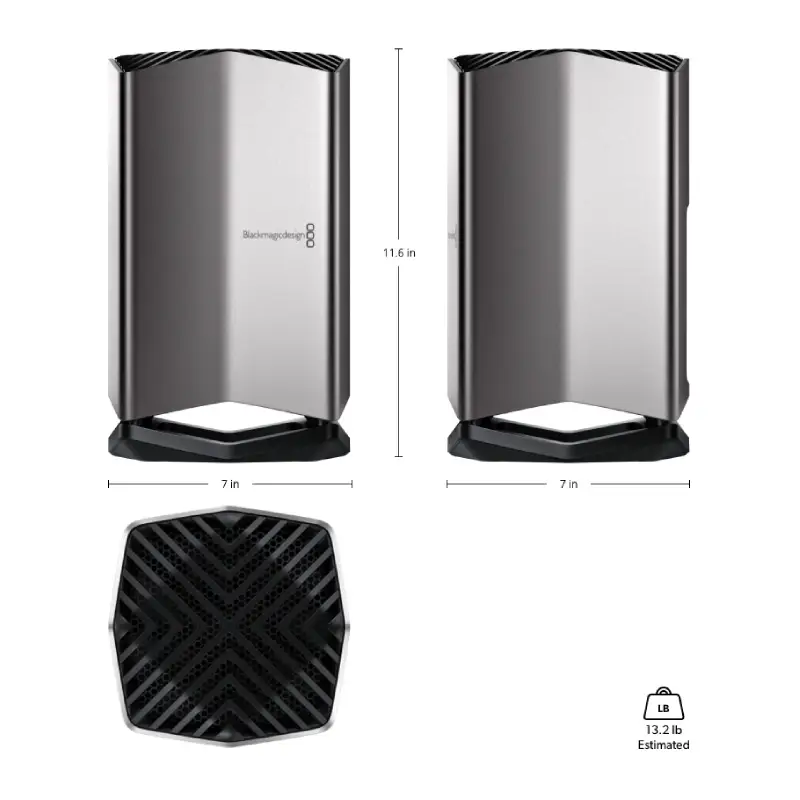

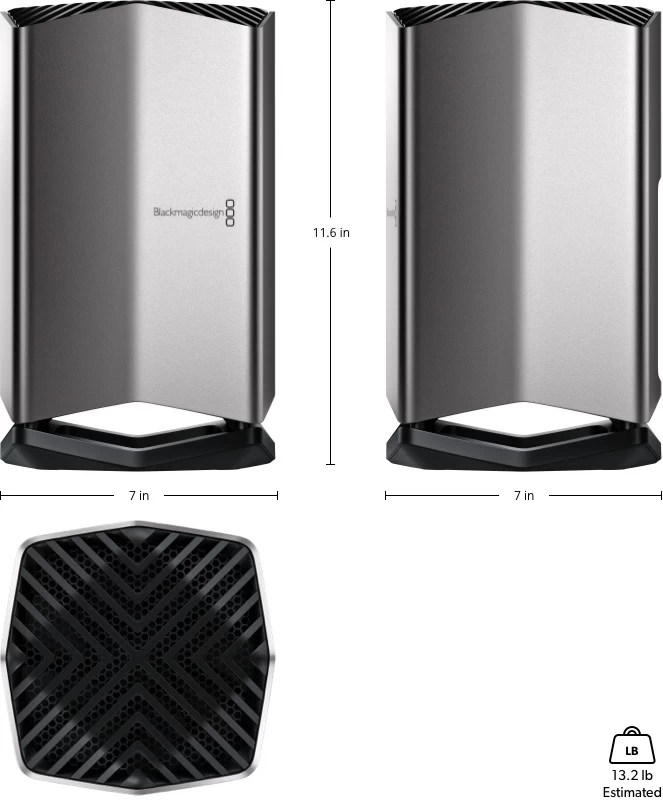

Physical Specifications
Environmental Specifications
Operating Temperature	0° to 40° C (32°to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing
What’s Included	Blackmagic Cloud Store Welcome wallet with QR code for software download.
Warranty	12 Month Limited Manufacturer’s Warranty.
