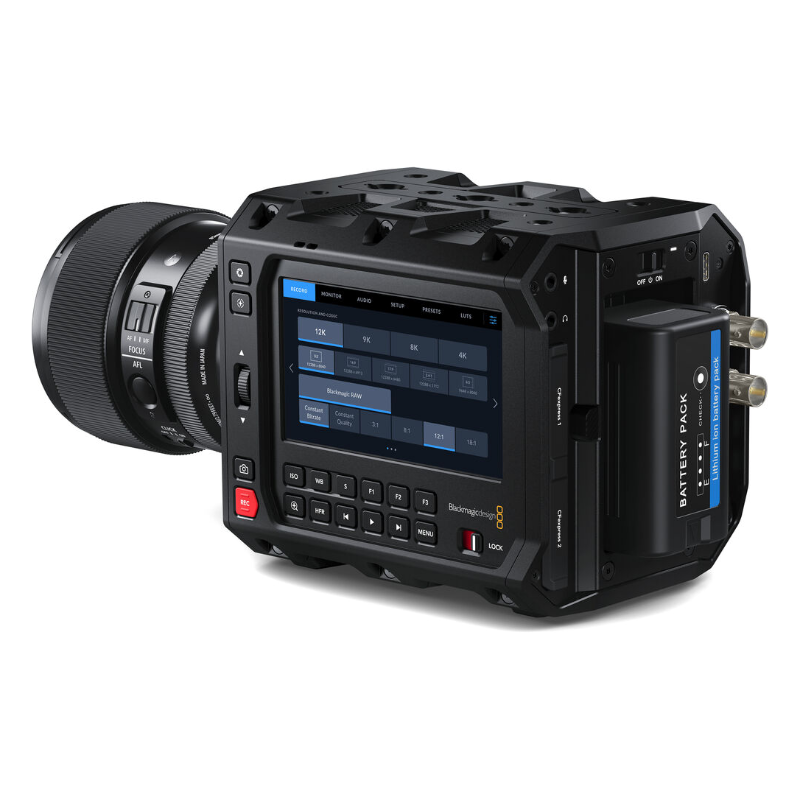

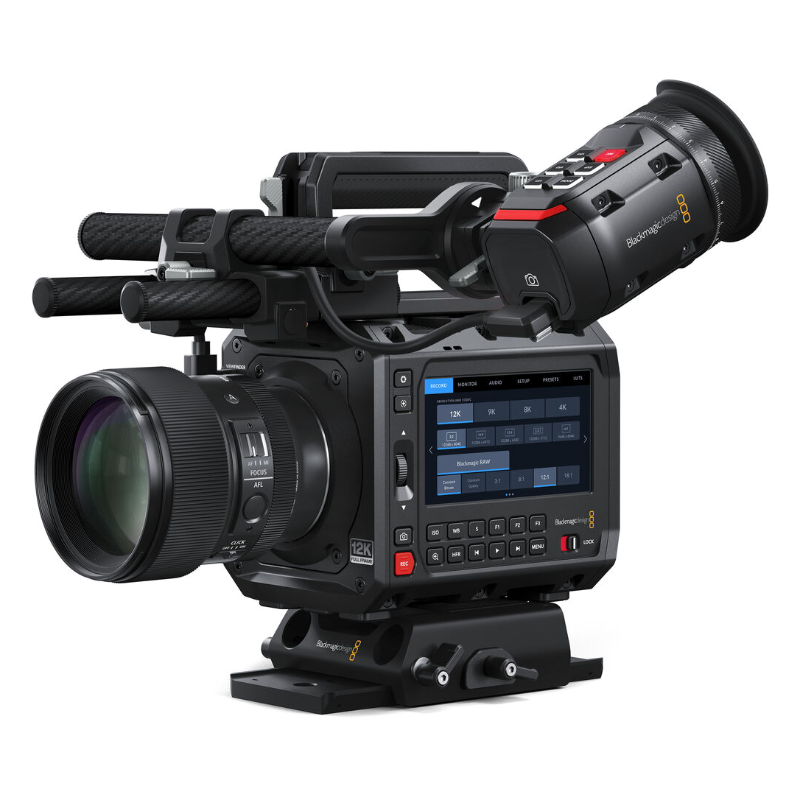

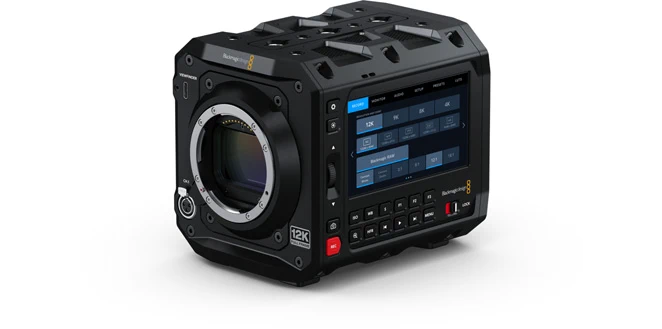

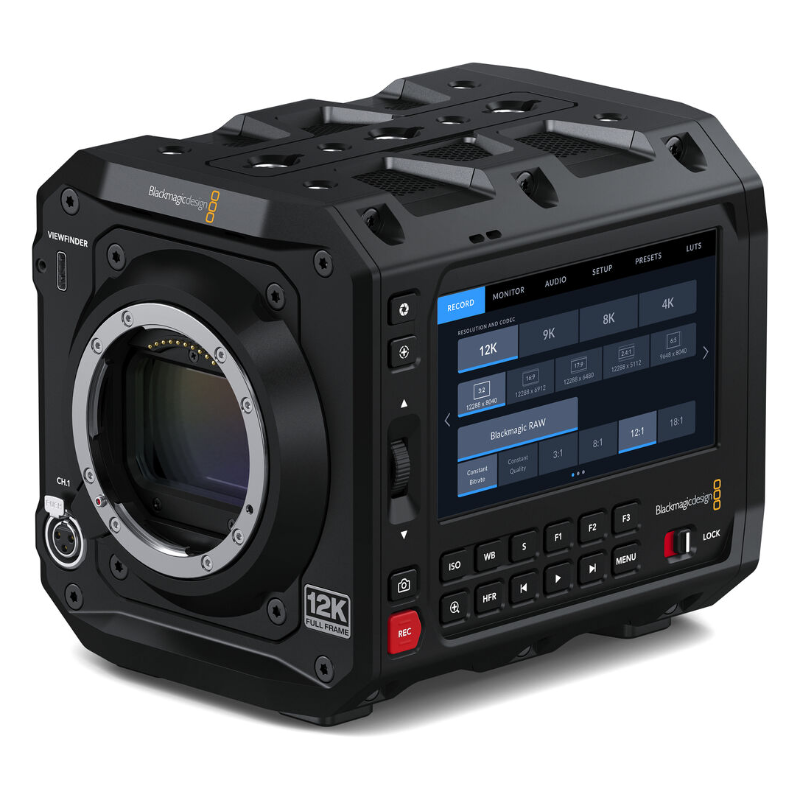

Blackmagic PYXIS 12K (Leica L)
192,700 ฿
Out of Stock
Description
จุดเด่นผลิตภัณฑ์
- เซ็นเซอร์ฟูลเฟรมขนาดใหญ่ 12K
- ช่วงไดนามิก 16 สต็อป
- Blackmagic RAW สูงสุด 12K 3:2 Open Gate
- ฟิลเตอร์ Low-Pass ออปติคัลในตัว
- ช่องเสียบการ์ด CFexpress สองช่อง พอร์ต USB-C
- รูปทรงกะทัดรัดพร้อมแผ่นด้านข้างที่สลับได้
- จอสัมผัส LCD HDR ขนาด 4 นิ้ว
- พอร์ตอีเทอร์เน็ต 10GbE รองรับ 10GHDBase-T
- ปุ่ม HFR และปุ่มลัดที่กำหนดได้สามปุ่ม
- อินพุตเสียง Mini-XLR และ 3.5 มม.
รายละเอียดสินค้า
- Blackmagic PYXIS 12K L-Mount เป็นกล้องดิจิตอลขั้นสูงที่มีดีไซน์อเนกประสงค์เหลือเชื่อ ช่วยให้คุณสร้างอุปกรณ์กล้องที่สมบูรณ์แบบสำหรับการผลิตของคุณได้ รุ่นใหม่นี้มีเซ็นเซอร์ RGBW ฟูลเฟรมขนาด 12,288 x 8040 พร้อมฟิลเตอร์ออปติคัลโลว์พาสในตัว ช่วงไดนามิก 16 สต็อป ช่องใส่สื่อ CFexpress สองช่อง ทั้งหมดนี้มาในตัวเครื่องที่ปรับแต่งได้พร้อมตัวเลือกการติดตั้งที่ยืดหยุ่นและแผ่นด้านข้าง Blackmagic PYXIS 12K L-Mount มี L-Mount แบบคงที่ที่ทำงานร่วมกับเลนส์ฟูลเฟรมล่าสุดและอะแดปเตอร์เลนส์หลากหลาย
สเปค Blackmagic PYXIS 12K (Leica L)
| Camera Features | |
| Effective Sensor Size | 35.64mm x 23.32mm (Large Format) |
| Pixel Pitch | 2.9 microns |
| Lens Mount | Active L-Mount. |
| Lens Control | Iris and focus on supported lenses. |
| Dynamic Range | 16 Stops. |
| Native ISO | 800 |
| Shooting Resolutions | 12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8192 x 5360 (8K 3:2 open gate) 4096 x 2680 (4K 3:2 open gate) |
| Frame Rates | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. |
| High Frame Rates | 12K (3:2 open gate) up to 40 fps 12K (16:9) up to 45 fps 12K (17:9) up to 50 fps 12K (2.4:1) up to 60 fps 12K (6:5) up to 40 fps 9K (3:2 Super 35) up to 50 fps 9K (16:9 Super 35) up to 65 fps 9K (17:9 Super 35) up to 65 fps 9K (2.4:1 Super 35) up to 80 fps 9K (6:5 Super 35) up to 50 fps 8K/4K (3:2 open gate) up to 72 fps 8K/4K (16:9) up to 84 fps 8K/4K (17:9) up to 90 fps 8K/4K (2.4:1) up to 112 fps 8K/4K (6:5) up to 72 fps |
| Focus | Auto focus available using compatible lenses. |
| Iris Control | Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses. |
| Screen Dimensions | 4” 1920 x 1080. |
| Screen Brightness | 1500 nits |
| Screen Type | LCD capacitive touchscreen. |
| Metadata Support | Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. |
| Controls | Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
| Connections | |
| Total Video Inputs | None |
| Total Video Outputs | 1 x 12G-SDI up to 2160p60
1 x Viewfinder USB-C with power, |
| Analog Audio Inputs | 1 x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu).
1 x 3.5mm Stereo Input |
| Analog Audio Outputs | 1 x 3.5mm headphone jack. |
| Reference Inputs | Tri-Sync/Black Burst and Timecode. |
| Computer Interface | USB Type-C for external drive recording, PTP camera control and software updates. |
| Ethernet | 1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE‑T. |
 |
|
| Standards | |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. |
| Audio | |
| Microphone | Integrated stereo microphone. |
| Built in Speaker | 1 x mono speaker. |
| Media | |
| Media | 2 x CFexpress Type B card slot, 1 x 10 Gbps USB-C port for external media for Blackmagic RAW and H.264 Proxy Recording. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Supported Codecs | |
| Codecs | Blackmagic RAW Constant Bitrate 3:1, Blackmagic RAW Constant Bitrate 5:1, Blackmagic RAW Constant Bitrate 8:1, Blackmagic RAW Constant Bitrate 12:1, Blackmagic RAW Constant Bitrate 18:1, Blackmagic RAW Constant Quality Q0, Blackmagic RAW Constant Quality Q1, Blackmagic RAW Constant Quality Q3, Blackmagic RAW Constant Quality Q5, H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 |
| Control | |
| External Control | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet. |
| Network Management | |
| NTP | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
| Web Media Manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
| FTP | Download files from any drive attached to your camera using FTP. |
| SMB | File sharing using SMB |
| Storage Features | |
| Storage Type | 2 x CFexpress Type B
1 x high speed USB-C expansion port for external media. |
| Storage Rates | Storage rates based on 24 frames per second.
12K – 12,288 x 8040 Blackmagic RAW 3:1 – 1,194 MB/s 9K – 9408 x 6264 Blackmagic RAW 3:1 – 713 MB/s 8K – 8192 x 5360 Blackmagic RAW 3:1 – 533 MB/s 4K – 4096 x 2680 Blackmagic RAW 3:1 – 135 MB/s |
| Recording Formats | Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at full sensor width or height resolutions:
12,288 x 8,040, 12,288 x 6,912, 12,288 x 6,480, 12,288 x 5,112 and 9,648 x 8,040 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at Super 35 windowed sensor resolutions: 9,408 x 6,264, 8,688 x 4,896, 9,312 x 4,896, 9,312 x 3,864 and 7,680 x 6,408 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: 8,192 x 5,360, 8,192 x 4,608, 8,192 x 4,320, 8,192 x 3,408 and 6,432 x 5,360 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at full sensor width or height scaled to: 4,096 x 2,680, 4,096 x 2,304, 4,096 x 2,160, 4,096 x 1,704 and 3,216 x 2,680 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter. |
| Software | |
| Software Included | Blackmagic OS
DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK Blackmagic RAW Speed Test |

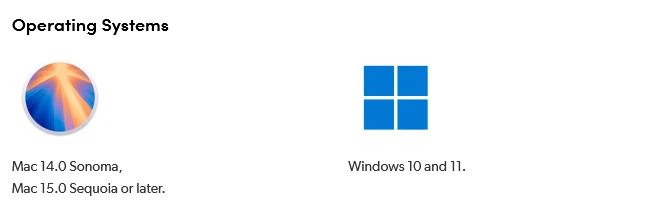

| Operating Systems |  |
| Power Requirements | |
| Power Supply | 1 x External 18V DC 90 W power supply. |
| External Power Input | 1 x 2‑pin Lemo compatible locking connector. |
| Battery Type | BP-U series. |
| Power | 12V – 18V |
| Accessories | |
| Optional Accessories | Blackmagic URSA Cine Handle
Blackmagic URSA Cine EVF Blackmagic PYXIS Rosette Plate Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit |

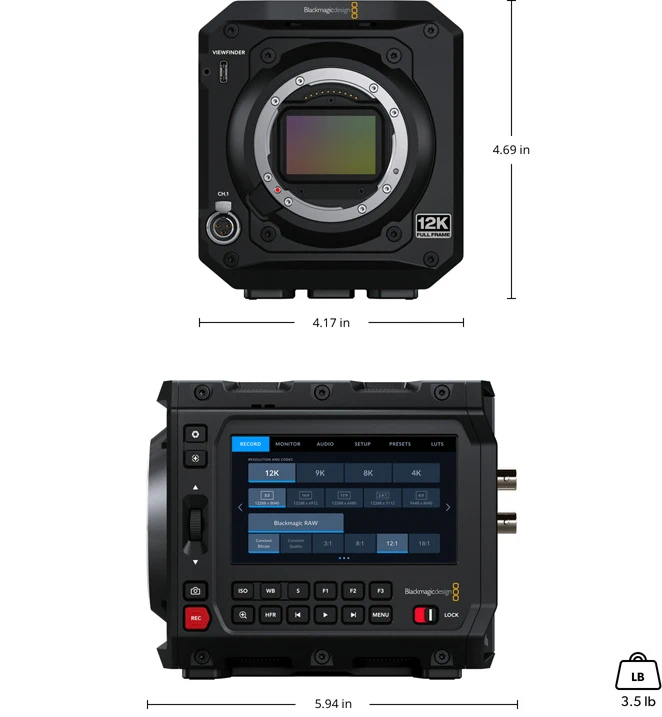

| Physical Specifications |  |
| Environmental Specifications | |
| Operating Temperature | 0°to 40°C (32° to 104°F |
| Storage Temperature | -20°to 45°C (-4° to 113°F) |
| Relative Humidity | 0% to 90% non-condensing |
| What’s Included | Blackmagic PYXIS 12K
Lens turret dust cap PYXIS Standard Plate PYXIS SSD Plate 90W power supply with locking connector and international adapters Welcome booklet DaVinci Resolve Studio activation key |
| Warranty | Product Warranty1 Year Limited Manufacturer’s Warranty. |
